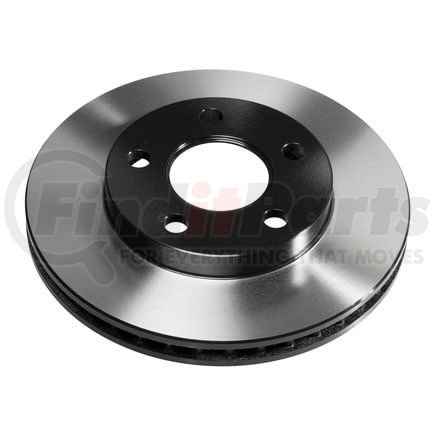

(888) 312-8812 Login SignupWAGNER BD125522E Wagner Brake BD125522E Disc Brake Rotor
Tap to view 2 more
MSRP: $56.45
$4949
Save $6.96
Limited availability at this price!
In Stock
Get it by Monday, Jul 27
WAGNER BD125522E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2004-2005 Chevrolet Classic (Front) (Qualifier: 5 Stud Wheel, with 277 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1997-2003 Chevrolet Malibu (Front) (Qualifier: 5 Stud Wheel, with 277 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2004 Oldsmobile Alero (Front) (Qualifier: 5 Stud Wheel, with 277 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1997-1999 Oldsmobile Cutlass (Front) (Qualifier: 5 Stud Wheel, with 277 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2005 Pontiac Grand Am (Front) (Qualifier: 5 Stud Wheel, with 277 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125522E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 26.3 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 277.9 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 49.2 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 1.035 IN |
| Outside Diameter | 10.940 IN |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 1.937 IN |
| Overall Height | 49.2 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536710653 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125522E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A816, 18A816A, 18A81613, 18A81613SD, 18A816AC |
| Aimco | 55040 |
| Autospecialty | AR-8256, AR8256 |
| Bendix | 145158 |
| Bosch | 25010531 |
| BrakeBest Select Drum/Rotor | 56655RGS |
| Brembo | 27137 |
| CENTRIC | 120.62056 |
| Carquest | 55040 |
| Carquest Platinum Plus Coated Rotors | YH145158C |
| Carquest Wearever | YH145158 |
| Centric Parts | 120.62056, 121.62056, 12062056, 12162056, 125.62056, 120.62056CRY, 125.62056CRY, 320.62056F |
| DuraGo | BR55040, BR55040-01, BR55040-02 |
| Duralast | 55040DL, 55040DG |
| Dynamic Friction Company | 600-47028, 604-47028 |
| General Motors | 18021774, 18040307, 18048801, 18060442, 19213925 |
| NAPA | 4886655, 86655 |
| NAPA BRAKES | 86655CR, 4886655, 24886655 |
| PowerStop | AR8256, AR8256EVC |
| Pro-Series | PS55040, C25522 |
| RAYBESTOS | 56655, 56655R |
| Raybestos Brakes | 56655, 56655R, 56655FZN |
| UQuality Rotors | 55040 |
| Universal | 101707 |
| Winhere | UR002948 |
WAGNER BD125522E Fits Vehicles
- Chevrolet Classic (2004-2005)
- Pontiac Grand Am (1999-2005)
- Oldsmobile Cutlass (1997-1999)
- Oldsmobile Alero (1999-2004)
- Chevrolet Malibu (1997-2003)
