(888) 312-8812 Login SignupDELPHI FG0863 Fuel Pump Module Assembly
$35049
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 17
DELPHI FG0863 Part Description
Manufacturer
Product Description

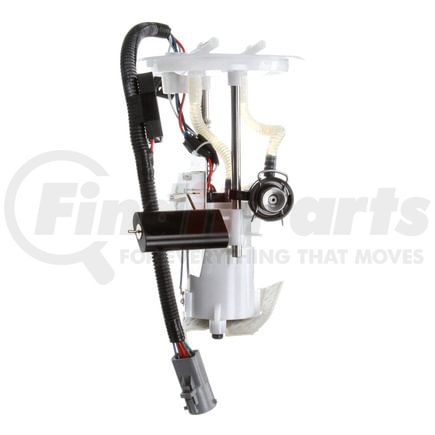

Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0863 Specifications
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| System Pressure | 59 psi |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Vapor Pressure Sensor | No |
| Fuel Type | Flex |
| Item Grade | Standard Replacement |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 8 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 7 82 |
| Resistance Ohms Full | 138 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 10 68 |
| Average Flow Rating | 40 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Fuel Type | Flex |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 2 |
| Connector Shape | Round |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 59 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Country of Origin (Primary) | TH |
| UPC | 00689604202951 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0863 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F1363A |
| Airtex | E2352M |
| AutoZone | CFG0863 |
| Bosch | 67216, 67199 |
| CARTER FUEL PUMPS | P76170M |
| Carter | P76170M |
| DENSO Auto Parts | 950-0171 |
| EVO Driveline | RE0862S, AFS0862S |
| Ford | 2L2Z 9H307-GA, 2L2Z 9H307-GB, 2L2Z 9H307-GC |
| GMB | 525-2310 |
| Magneti Marelli | 1AMFP00133 |
| Motorcraft | PFS-436 |
| N/A | 2L2Z9H307GC, PFS436, USEP2352M, C0062M, C0063M, 4010313 |
| Precision Fuel | A33018 |
| Spectra Premium | RE0862S, SP2060M |
DELPHI FG0863 Fits Vehicles
- Ford Explorer (2002-2003)
- Mercury Mountaineer (2002-2003)
