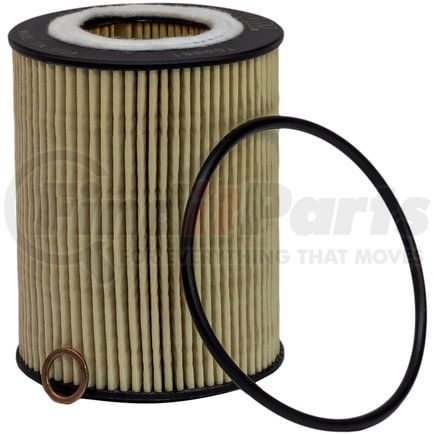

FRAM TG8081 - Cartridge Oil Filter
$1199
MSRP: $15.57
Save: $3.58
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
FRAM part description
Product Description
FRAM, TG8081, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- Synthetic blend media provides 99% dirt holding capacity
- Designed for use with synthetic or conventional motor oils
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.094 IN |
| Gasket Or Seal Included | Yes |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Gasket Type | Cover |
| Grade | Premium |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 1.656 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 3.622 IN |
| O-ring Outside Diameter | 3.783 IN |
| O-ring Thickness | 0.161 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.250 in |
| Outer Diameter Top | 3.250 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.656 in |
| Torque Nut | No |
| Washable | No |
| Washer Inside Diameter | 0.472 IN |
| Washer Outside Diameter | 0.656 IN |
| Washer Thickness | 0.472 IN |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100545657 |
| UNSPSC | 15121501 |
Part Interchanges
- Motorcraft FL-2024
- BMW 11 42 1 427 908
- Mobil 1 M1C-252
- PurolatorONE PL25247
- BMW 11 42 7 509 430
- BMW 11 42 7 512 300
- STP S8081XL
- Beck/Arnley 041-8149
- Champ P8170
- Bosch 72202
- Carquest Premium Filters 85223
- Casite Filters CF482
- Hastings LF482
- K&N PS-7007
- Mighty Distributing System M8170
- Pennzoil PZ63
- Promotive PH5247
- Group 7 V5247
- ACDelco PF1073
- Purolator L25247
- Quaker State QS8081
- Wix 51223
- Auto Extra 61851223
- Big A 91609
- Firestone P8170
- Baldwin P7138
- LUBER-FINER P8170
- Carquest 85223
- Qualitee International HL8081
- Service Champ CF5247
- VIPER 8081
- Mahle OX154/1DECO
- Shell - Archived L25247
- Mann-Filter HU925/3X
- Certified CCH8081
- Citgo Petroleum P8170
- Factory Motor Parts G1223
- Warner P8170
- Champion COC8081
- Parts Plus P8170
- Mobil L25247
- STP Filters S8081
- Installer Edge AL8081
- Jiffy Lube HL8081
- Mileguard MO8081
- Pronto PO-5247
- MicroGard MGL51223
- Pentius PCB8081
- Service Pro CF5247
- Performax PO-63
- MotoMaster MCH8081
- Driveworks DW-5247
- Valvoline LC-8170
- Defense Filters DL8081
- STP S8081
- Parts Master 61223
- Premium Guard PG5247
- Champion Filters COC8081
- Purolator PureONE PL25247
- ECOGARD X5247
- MAHLE OX154/1DECO
- NAPA 1223
- Warner Filters P8170
- Purolator BOSS PBL25247
- FVP G1223
- FRAM Titanium FS8081
- FRAM Drive FD8081
- BMW 11 42 1 740 534
- BMW 11 42 7 512 301
- BMW 11 42 7 512 430
- Parts Master 61223BP
- BMW 75 09 4 30
- Mann-Filter HU925/4
- Mann-Filter HU925/4X
- Hastings LF482F
- Mobil 1 M1C-252A
- Service Pro M5247
- MicroGard MGL8081
- Mobil P8170
- ACDelco PF2248G
- Mobil 1 PH5247
- Pennzoil PZ-63
- Carquest R85223
- Carquest R85223MP
- STP Filters S8081XL
- Shell - Archived SH52
Fits Vehicles
- Suzuki Aerio (2002)
- BMW 525xi (2006)
- BMW 320i (2001-2005)
- Ford GT (2005-2006)
- BMW 530xi (2006)
- BMW X3 (2004-2006)
- BMW 328Ci (2000)
- BMW 323is (1998-1999)
- BMW 323Ci (2000)
- BMW 325Ci (2001-2006)
- BMW 528i (1997-2000)
- BMW 530i (2001-2006)
- BMW 525i (2001-2006)
- BMW 330Ci (2001-2006)
- BMW 325i (2001-2006)
- BMW 330xi (2001-2006)
- BMW 330i (2001-2006)
- BMW Z4 (2003-2005)
- BMW Z3 (1997-2002)
- BMW X5 (2001-2006)
- BMW 328is (1996-1999)
- BMW 328i (1996-2000)
- BMW 323i (1998-2000, 2006)
- BMW 325xi (2001-2006)
