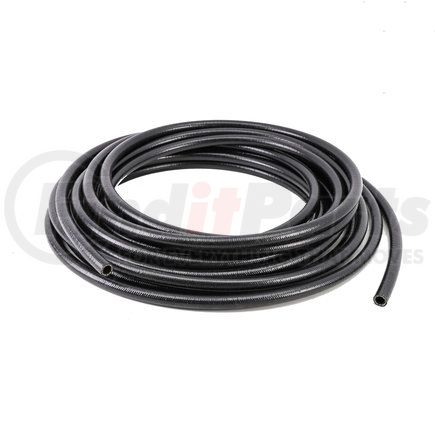

Weatherhead H75708 - OBSOLETE
- Part Number
- H75708
- Manufacturer
- WEATHERHEAD
- Description
-
OBSOLETE
details
$32450
Package Price for 50 Units
@ $6.49 per unit
In stock
limited availability at this price!
. Learn more
WEATHERHEAD part description
| Cover Material | Other/mixed |
| Dash Size | 8 |
| Hose Family | Refrigerant |
| Max Temperature (F) | 257 |
| Min Temperature (F) | -22 |
| Operating Pressure (PSI) | 400 |
| Product Line | Weatherhead |
| Tube Material | Other/mixed |
| Available Length (ft) | 50 |
| Burst Pressure (psi) | 2000 |
| Description | Air Conditioning Hose |
| Family | Hose |
| General Application | A refrigerant hose recommended for R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications. |
| Hose Base Number | H757 |
| Industry Specification | SAE J2064 Type C, Class 1 |
| Inside Diameter (Fraction) | 13/32 |
| Inside Diameter (in) | 0.41 |
| Min Bend Radius (in) | 2.5 |
| Outside Diameter (Fraction) | 41959 |
| Outside Diameter (in) | 0.69 |
| Reinforcement Material | Single Fabric Braid |
Features & Benefits
- SAE J2064 Type C, -40oC to +125oC (-40oF to +257oF) (135oC intermittent)
- 757 field crimp series fittings for ease of use in the field
- R134a refrigerant only, PAG and POE oils
- Meets SAE J2064 Performance
- SAE J2064 Type C Multi-Refrigerant A/C Hose
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
