NGK SPARK PLUGS ZFR5FIX11 Part Description
Manufacturer
Product Description

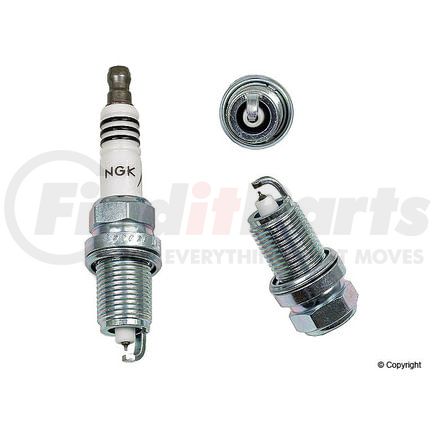

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS ZFR5FIX11 Specifications
Product Attributes
| Short Style Spark Plug | No |
| Service Number | ZFR5FIX-11 |
| Part Number | ZFR5FIX-11 |
| Stock Number | 2477 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.20 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Long Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.1 MM |
| Insulator Height | 50.5 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 5.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295124772 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS ZFR5FIX11 Cross References
NGK SPARK PLUGS ZFR5FIX11 Fits Vehicles
- Chrysler Aspen (2007)
- Jeep Commander (2006-2007)
- Jeep Grand Cherokee (1999-2007)
- Dodge Ram 1500 (2002-2007)
- Dodge Durango (2000-2007)
- Chrysler 200 (2011-2014)
- Kia Soul (2010-2011)
- Dodge Journey (2009-2020)
- Saturn Astra (2008-2009)
- Kia Spectra (2008-2009)
- Kia Spectra5 (2008-2009)
- Dodge Avenger (2008-2014)
- Hyundai Elantra (2007-2012)
- Chrysler Sebring (2007, 2009-2010)
- Jeep Patriot (2007-2017)
- Jeep Compass (2007-2017)
- Dodge Caliber (2007-2012)
- Mitsubishi Raider (2006-2007)
- Mazda MPV (1990-1995)
- Mazda B2600 (1990-1993)
- Mazda 626 (1993-2002)
- Mazda Protege (1999-2003)
- Acura EL (1997-2000)
- Mazda Millenia (1995-2002)
- Mazda 929 (1990-1991)
- Mazda MX-6 (1993-1997)
- Nissan Axxess (1990-1995)
- Nissan Stanza (1990-1992)
- Nissan Pickup (1995-1997)
- Nissan D21 (1990-1994)
- Nissan 240SX (1990)
- Honda Prelude (1990-1996)
- Honda Pilot (2003-2005)
- Honda Odyssey (1995-2004)
- Honda CR-V (1997-1998)
- Honda Civic del Sol (1993-1997)
- Honda Civic (1992-2000)
- Honda Accord (1990-2002)
- Acura TL (1999-2003)
- Acura MDX (2001-2002)
- Acura Integra (1992-2001)
- Acura CL (1997-1999, 2001-2003)
- Dodge Ram 3500 (1994-1996)
- Dodge Ram 2500 (1994-1996)
- Dodge Dakota (2000-2007)
- Isuzu Oasis (1996-1999)
- BMW 850i (1991-1992)
- BMW 850CSi (1994-1995)
- BMW 850Ci (1993-1997)
- BMW 750iL (1988-1996)
