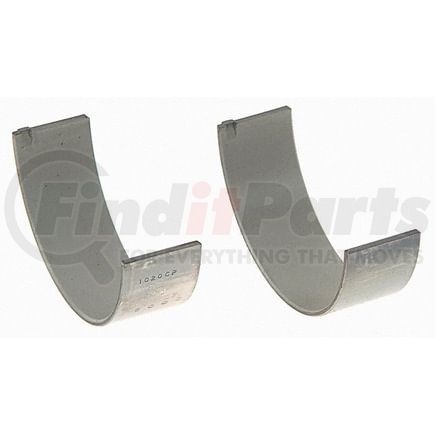

SEALED POWER 1020CP Part Description
Manufacturer
Product Description
Engine Connecting Rod Bearing
Features & Benefits
- Steel-backed bronze alloy lining with overplate
- Popular for fatigue resistance & strength
- Provides conformability required for older apps
- Our standard material is comparable to competitors performance bearing
- Note - This material offers less resistance to wear & corrosion than other materials.
- Utilizes ISO & QS certified manufacturing
SEALED POWER 1020CP Specifications
Product Attributes
| Design Feature 1 | Standard Size |
| Housing Bore Max (inch) | 2.3757 IN |
| Housing Bore Max (mm) | 60.3430 MM |
| Housing Bore Min (inch) | 2.3747 IN |
| Housing Bore Min (mm) | 60.3170 MM |
| Oil Clearance Max (inch) | 0.0036 IN |
| Oil Clearance Max (mm) | 0.0910 MM |
| Oil Clearance Min (inch) | 0.0010 IN |
| Oil Clearance Min (mm) | 0.0250 MM |
| Overall Length Max (inch) | 0.7530 IN |
| Overall Length Max (mm) | 19.1300 MM |
| Part Description | Engine Connecting Rod Bearing |
| Standard Shaft Max (inch) | 2.2498 IN |
| Standard Shaft Max (mm) | 57.1450 MM |
| Standard Shaft Min (inch) | 2.2492 IN |
| Standard Shaft Min (mm) | 57.1300 MM |
| Wall Thickness Max (inch) | 0.0620 IN |
| Wall Thickness Max (mm) | 1.5750 MM |
| Grade Type | Premium |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8483300022 |
| Harmonized Tariff Code (Schedule B) | 8483308090 |
| Harmonized Tariff Code (HTS) | 8483308090 |
| UPC | 00724956232130 |
| VMRS Code | 045006003 |
SEALED POWER 1020CP Cross References
| Brand | Part Number |
|---|---|
| CLEVITE ENGINE PARTS | CB-1358P, CB1358P |
| Clevite | CB1358P |
| Dana Commercial Vehicle Service Parts | CB1358P |
| General Motors | 12522101 |
| Hi-Tech Engine Components | CB1358P |
| MAHLE CLEVITE | CB-1358P |
| Michigan Bearings | 12900 |
| N/A | 1020CP |
| SEALED POWER | 1020CP |
| Sealed Power | CB1358P |
| TRW Steering and Suspension Parts | CB-1358P, CB1358P |
SEALED POWER 1020CP Fits Vehicles
- Pontiac Parisienne (1985-1986)
- Pontiac Grand Prix (1986-1987)
- Pontiac Bonneville (1986)
- Oldsmobile Bravada (1991-1994, 1996-2001)
- GMC V1500 (1987)
- GMC Typhoon (1992-1993)
- GMC Syclone (1991)
- GMC S15 (1988-1990)
- GMC S15 Jimmy (1988-1991)
- GMC R2500 (1987)
- GMC R1500 (1987)
- GMC P3500 (1990-1999)
- GMC K2500 (1985, 1988-1995)
- GMC K1500 (1985-1986, 1988-1998)
- GMC Savana 3500 (1997-1998)
- GMC G3500 (1985-1996)
- GMC G2500 (1985-1995)
- GMC G1500 (1985-1995)
- GMC Caballero (1985-1987)
- GMC C2500 (1985-1986, 1988-1995)
- GMC C1500 (1985-1986, 1988-1998)
- Chevrolet V10 (1987)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Chevrolet Commercial Chassis (1992)
- GMC Jimmy (1992-2005)
- GMC Sonoma (1991-2004)
- GMC Sierra 1500 (1999-2007)
- GMC Savana 2500 (1996-2005)
- GMC Savana 1500 (1996-2007)
- GMC Safari (1985-2005)
- Chevrolet Silverado 1500 (1999-2007, 2009)
- Chevrolet S10 (1988-2004)
- Chevrolet Blazer (1995-2005)
- Chevrolet S10 Blazer (1988-1994)
- Chevrolet R20 (1987)
- Chevrolet R10 (1987)
- Chevrolet P30 (1990-1999)
- Chevrolet Monte Carlo (1985-1988)
- Chevrolet K2500 (1988-1995)
- Chevrolet K20 (1985)
- Chevrolet K1500 (1988-1998)
- Chevrolet K10 (1985-1986)
- Chevrolet Impala (1985)
- Chevrolet G30 (1985-1996)
- Chevrolet G20 (1985-1995)
- Chevrolet G10 (1985-1995)
- Chevrolet Express 2500 (1996-2005)
- Chevrolet Express 1500 (1996-2008)
- Chevrolet El Camino (1985-1987)
- Chevrolet Caprice (1985-1990, 1992-1993)
- Chevrolet C2500 (1988-1995)
- Chevrolet C20 (1985-1986)
- Chevrolet C1500 (1988-1998)
- Chevrolet C10 (1985-1986)
- Chevrolet Astro (1985-2005)
- Isuzu Hombre (1997-2000)
