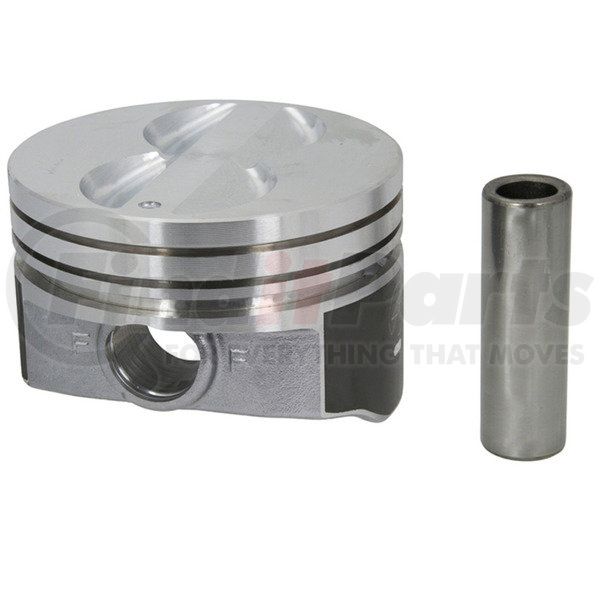

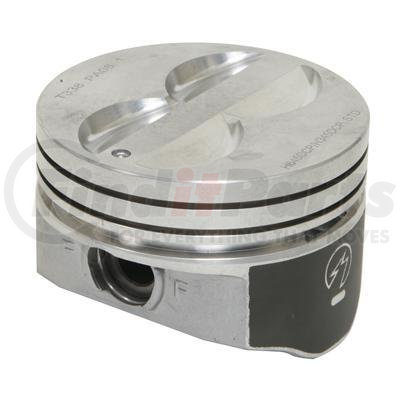

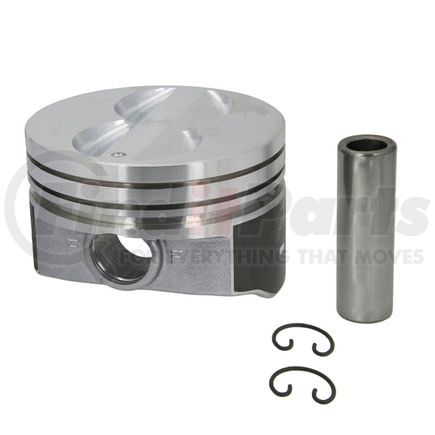

SEALED POWER H345DCP - Sealed Power H345DCP Engine Piston Set
- Part Number
- H345DCP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H345DCP Engine Piston Set
details
$3499
In stock
limited availability at this price!
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Hypereutectic
- Hipereutectico
- Hypereutectique
- Made w/exclusive FM425 material for excellent strength & scuff resistance - allows tighter bore and improves sealing for less blow-by
- Fabricado con material FM425 exclusivo para una excelente fuerza y resistencia a las rozaduras: permite un orificio mas estrecho y mejora el sellado para reducir la fuga de gases
- Fabrique avec le materiau exclusif FM425 pour une excellente solidite et resistance aux eraflures - permet un alesage plus serre et ameliore l'etancheite pour reduire la perte de gaz dans le carter
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Los sofisticados perfiles de "barril" ayudan a optimizar la pelicula de aceite entre el faldon y la pared.
- Les profils sophistiques en << tonneau >> permettent d'optimiser le calage de l'huile entre la jupe et le mur.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- Faldones de piston protegidos por recubrimiento DUROSHIELD(R) de ultima generacion.
- Jupes de piston protegees par un revetement DUROSHIELD(R) de nouvelle generation.
- TACTM ring groove geometry
- Geometria de la ranura del anillo TACTM
- Geometrie de la rainure annulaire TACMC
- Weight matched to +/- 2 grams.
- Peso ajustado a +/- 2 gramos.
- Poids correspondant a +/- 2 grammes.
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.927 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.000 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.548 IN |
| Dome Volume CC | Negative 6.9 |
| Head Illustration | 183 |

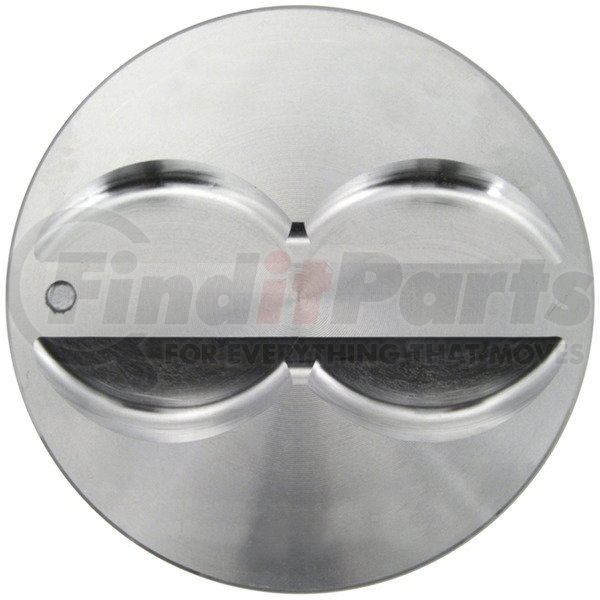

| Head Type | Flat, 4 reliefs; Use w/Lock Ring LR-63; DUROSHIELD~ skirt coated piston |
| Lock Ring | Not Incl. |
| Minimum Clearance | 0.0010 |
| Part Description | Engine Piston |
| Pin Type | F |
| Pin Weight Gram | 149 |
| Weight W Pin Gram | 678 |
| Weight w/o Pin Gram | 529 |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00019826500700 |
Part Interchanges
Fits Vehicles
- Chevrolet K30 Pickup (1969-1970)
- Pontiac Firebird (1987-1990)
- Chevrolet Townsman (1969-1970)
- Chevrolet P30 Van (1970)
- Chevrolet P20 Van (1970)
- Chevrolet Monte Carlo (1970)
- Chevrolet Kingswood (1969-1970)
- Chevrolet K20 Suburban (1969-1970)
- Chevrolet K20 Pickup (1969-1970)
- Chevrolet K10 Suburban (1969-1970)
- Chevrolet K10 Pickup (1969-1970)
- Chevrolet G20 Van (1970)
- Chevrolet G10 Van (1970)
- Chevrolet El Camino (1969-1970)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1968-1970)
- Chevrolet C30 Pickup (1969-1970)
- Chevrolet C20 Suburban (1969-1970)
- Chevrolet C20 Pickup (1969-1970)
- Chevrolet C10 Suburban (1969-1970)
- Chevrolet C10 Pickup (1969-1970)
- Chevrolet Brookwood (1969-1970)
- Chevrolet Blazer (1969-1970)
- Chevrolet Biscayne (1969-1970)
- Chevrolet Bel Air (1969-1970)
- GMC G35/G3500 Van (1970)
- Pontiac Strato-Chief (1969-1970)
- Pontiac Parisienne (1969-1970)
- Pontiac Laurentian (1969-1970)
- Chevrolet Estate (1969-1970)
- Pontiac Beaumont (1968-1969)
- Chevrolet Nova (1969-1970)
- Chevrolet G30 Van (1970)
- Pontiac Acadian (1968-1970)
- GMC P35/P3500 Van (1970)
- GMC P25/P2500 Van (1970)
- GMC K35/K3500 Pickup (1969-1970)
- GMC K25/K2500 Suburban (1969-1970)
- GMC K25/K2500 Pickup (1969-1970)
- GMC K15/K1500 Suburban (1969-1970)
- GMC K15/K1500 Pickup (1969-1970)
- GMC Jimmy (1970)
- GMC G25/G2500 Van (1970)
- GMC C35/C3500 Pickup (1969-1970)
- GMC C25/C2500 Suburban (1969-1970)
- GMC C25/C2500 Pickup (1969-1970)
- GMC C15/C1500 Suburban (1969-1970)
- GMC C15/C1500 Pickup (1969-1970)
- Chevrolet Impala (1969-1970, 1982-1985)
- Chevrolet Corvette (1982, 1984-1990)
- Chevrolet Caprice (1969-1970, 1985-1990)
- Chevrolet Camaro (1967-1970, 1987-1990)
- Cadillac Brougham (1990)
