SEALED POWER part description

Product Description

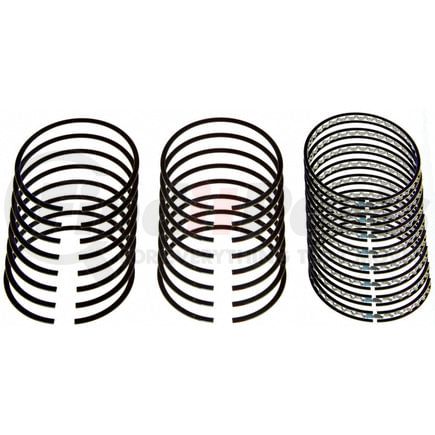

Engine Piston Ring Set

Application Summary

Performance

Features & Benefits

  • Recommended for all racing applications (where file fitting the ring end gap will deliver maximum power)
  • Face of top rings are coated with the latest generation Plasma-Moly
  • Plasma-Moly ring face decreases friction and is highly resistant to scuffing
  • Low tension set to further reduce friction (not recommended for street use)
  • Application specific design to ensure a perfect fit and correct operation for unsurpassed quality that you can trust

Product Attributes

Oversized Yes
Oversized Amount 0.030 IN
Outside Diameter 4.3550 IN
Cylinder Quantity 8
Bore Diameter 4.3000 IN
Oil Ring Design 3 Piece Flex Vent
2nd Ring Face Design Reverse Torsional
Top Ring Face Design Torsional Barrel Face
2nd Ring Material Cast Iron
Top Ring Material Ductile Iron Plasma Moly (Low Tension)
Oil Ring Tension Low
Oil Ring Width 0.1875 IN
2nd Ring Width 0.0625 IN
Top Ring Width 0.0625 IN
File Fit Yes
Outside Diameter (In) 4.3550
Part Description Engine Piston Ring Set
Ring Set Groove Widths (in) 1/16 x 1/16 x 3/16

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8409910010
Harmonized Tariff Code (HTS) 8409915085
UPC 00053059297501

Part Interchanges

Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.
