CENTRIC 120.6508 Part Description
Manufacturer
Product Description

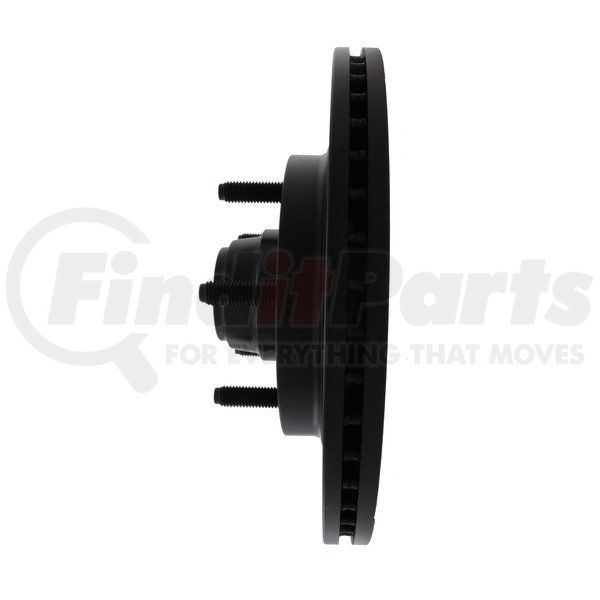

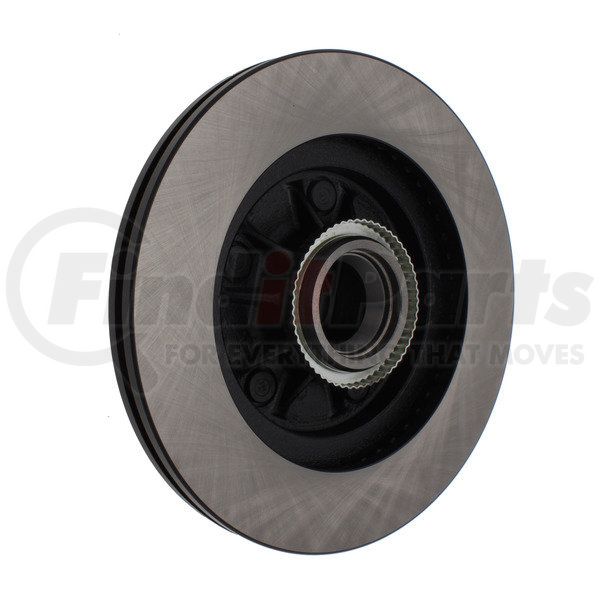

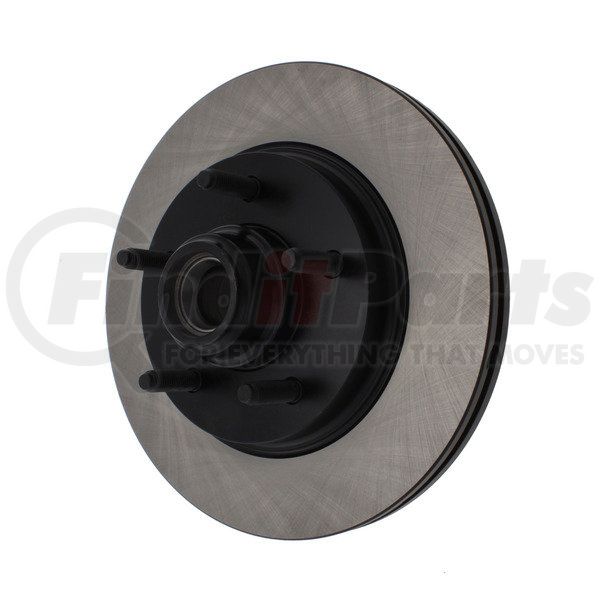

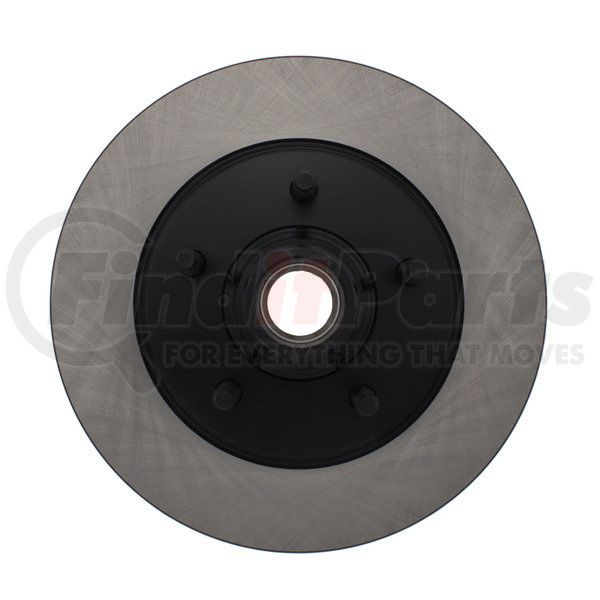

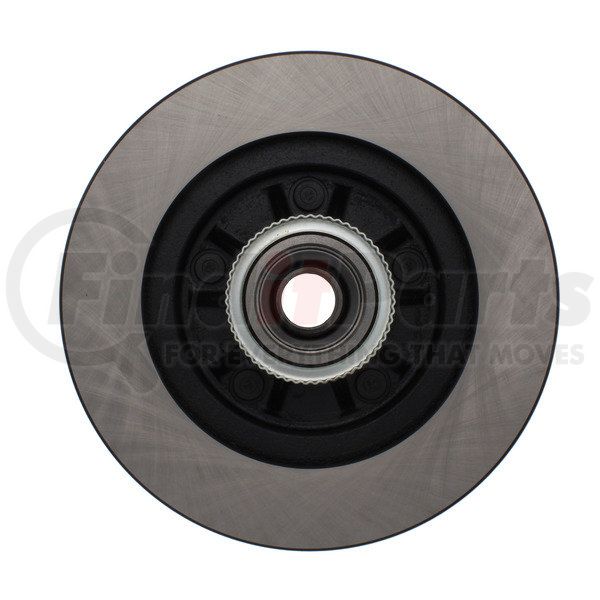

Premium Brake Rotor
Application Summary
1999 - 2003 Ford F-150, 2004 - 2004 Ford F-150 Heritage, 2002 - 2002 Lincoln Blackwood
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
CENTRIC 120.6508 Specifications
Product Attributes
| Discard Thickness | 0.972 IN |
| Discard Thickness | 24.70 MM |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26.00 MM |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.00 MM |
| Outside Diameter | 12.126 IN |
| Outside Diameter | 308.00 MM |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 2.00 MM |
| Center Hole Diameter | 3.413 IN |
| Center Hole Diameter | 86.70 MM |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Height | 4.087 |
| Hub Hole/Whl Reg [cntrc] | 86.7 MM |
| Inner Bearing # [cntrc] | 410.91018 |
| Inner Seal # [cntrc] | 417.650 |
| Misc Holes [cntrc] | 5 |
| Outer Bearing # [cntrc] | 410.91012 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 12.730 KG |
| Weight [cntrc] | 28.000 LB |
| Disc Mounting | Hub & Rotor |
| Hub Hole Diameter | 86.7 MM |
| Inner Bearing | 410.91018 |
| Inner Seal | 417.650 |
| Misc Holes | 5 |
| Outer Bearing | 410.91012 |
| Vane Style | Straight |
| Weight | 12.730 KG |
| Weight | 28.000 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890068969 |
CENTRIC 120.6508 Cross References
CENTRIC 120.6508 Fits Vehicles
- Lincoln Blackwood (2002)
- Ford F-150 Heritage (2004)
- Ford F-150 (2000-2003)
