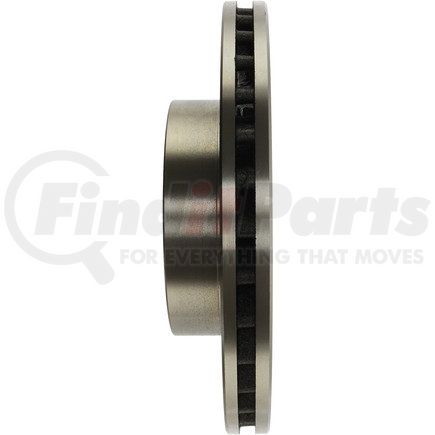

Centric 228.35109 - C-Tek Standard Drilled Brake Rotor
$9049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
Product Attributes
| Weight [cntrc] Lbs | 18.600 |
| Misc Holes [cntrc] | 1 |
| Vane Style [cntrc] | Curved |
| Hat Id [cntrc] In | 6.059 |
| Product Grade [cntrc] | Standard |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] Mm | 153.900 |
| Weight [cntrc] Kgs | 8.450 |
| Discard Thickness | 1.000 IN |
| Discard Thickness | 25.400 MM |
| Nominal Thickness | 27.900 MM |
| Nominal Thickness | 1.098 IN |
| Overall Height | 64.500 MM |
| Overall Height | 2.539 IN |
| Outside Diameter | 11.614 IN |
| Outside Diameter | 295.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.300 MM |
| Stud/Lug Hole Diameter | 0.602 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890447634 |
Part Interchanges
CENTRIC 228.35109 Cross Reference
We have 3 alternatives for the 228.35109 by CENTRIC:
Fits Vehicles
- Mercedes-Benz SLK250 (2012-2015)
- Mercedes-Benz C280 (2008-2009)
- Mercedes-Benz E200 (2012-2016)
- Mercedes-Benz C200 (2012)
- Mercedes-Benz C180 (2012)
- Mercedes-Benz C250 (2010-2016)
- Mercedes-Benz C300 (2008-2012)
