(888) 312-8812 Login SignupRAYBESTOS 980789 Raybestos Specialty - Street Performance Brake Rotor
$7649
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 25
RAYBESTOS 980789 Part Description
Manufacturer
Product Description

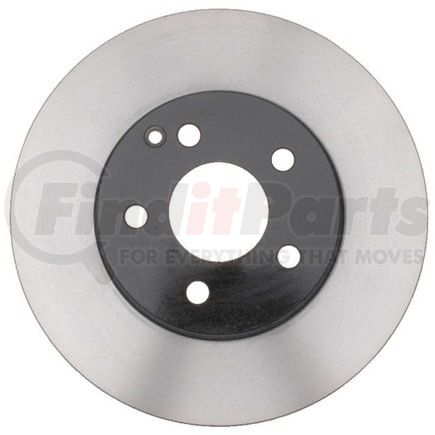

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2012-2008 Mercedes-Benz C300 Front, 2015-2010 Mercedes-Benz C250 Front, 2009-2008 Mercedes-Benz C230 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980789 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.634 IN |
| Center Hole Diameter | 66.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1 IN |
| Discard Thickness | 25.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.928 IN |
| Inside Diameter | 175.95 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 11.617 IN |
| Outside Diameter | 295.05 MM |
| Overall Height | 2.536 IN |
| Overall Height | 64.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352822937 |
RAYBESTOS 980789 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200855, YH200855C, YH200855P, YH277356 |
| ATE BRAKE PRODUCTS | SP28155, 428155 |
| AUTOXTRA | AX900880 |
| AUTOZONE | 76604, 76604DG |
| Autoxtra | AX900880P |
| BOSCH | 36010985 |
| BRAKEBEST | 36010985, 980789, 980789FZN, 980789RGS |
| Brembo | 09.B280.41, 09.B280.4X |
| CENTRIC | 120.35109, 121.35109, 125.35109, 125.35109CRY, 126.35109CSL, 126.35109CSR, 126.35109SL, 126.35109SR, 127.35109L, 127.35109R, 128.35109, 128.35109CL, 128.35109CRY, 128.35109L, 228.35109, 320.35109C |
| Centric Parts | 120.35109, 121.35109, 125.35109, 125.35109CRY, 126.35109CSL, 126.35109CSR, 126.35109SL, 126.35109SR, 127.35109L, 127.35109R, 128.35109, 128.35109CL, 128.35109CRY, 128.35109L, 228.35109, 320.35109C |
| DURA CORP | BR34424, BR900880, BR900884 |
| DuraGo | 900880, BR900880, BR90880 |
| Dynamic Friction Company | 604-63084 |
| MAGMA PRODUCTS | PSR383070 |
| MERCEDES-BENZ | 2044210712, 2124211312, A2124211312 |
| NAPA BRAKES | SDK6300, TSR7322 |
| NEOTEK | 106596GF |
| NEWTEK AUTOMOTIVE | 34424, R880 |
| Newtek Automotive USA | 34424, R880 |
| PAGID | 355114202 |
| PAGID Racing | 355114202 |
| POWERSTOP | EBR876EVC |
| PROMAX | 14-34424 |
| PRONTO | BR900880 |
| QUALIS | 45558 |
| Qualis | 45557 |
| TRW | 4863, DF7322S |
| VAICO | V3080008 |
| WAGNER | BD180038E |
| WINHERE | 6620723 |
| WORLDPAC | 1407-76151 |
RAYBESTOS 980789 Fits Vehicles
- Mercedes-Benz C250 (2010-2015)
- Mercedes-Benz C230 (2008-2009)
- Mercedes-Benz C300 (2008-2012)
