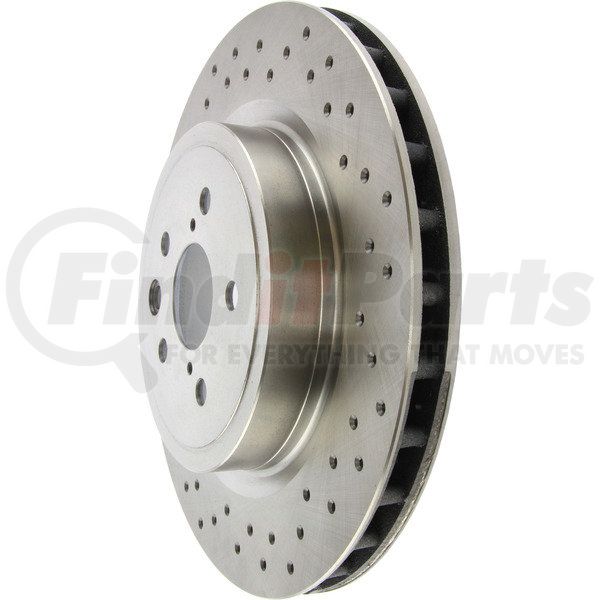

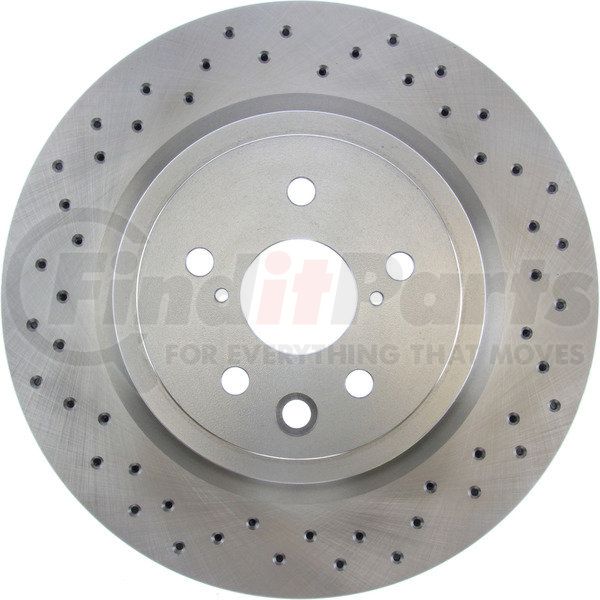

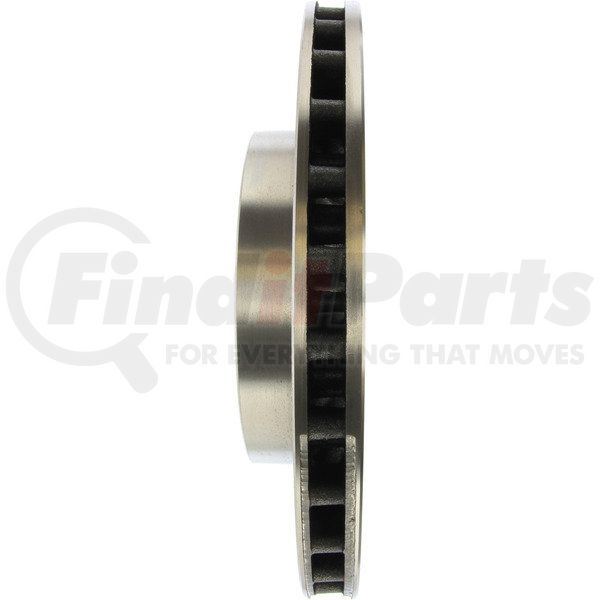

Centric 228.44163 - C-Tek Standard Drilled Brake Rotor
$14699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 10.360 |
| Weight [cntrc] Lbs | 22.800 |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Standard |
| Stud/Lug Hole Diameter | 0.571 IN |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Center Hole Diameter | 2.441 IN |
| Center Hole Diameter | 62.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | X Drilled |
| ABS Tone Ring Included | No |
| Outside Diameter | 13.583 IN |
| Outside Diameter | 345.000 MM |
| Overall Height | 2.425 IN |
| Overall Height | 61.600 MM |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
Additional Information
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890459613 |
Part Interchanges
CENTRIC 228.44163 Cross Reference
We have 1 alternatives for the 228.44163 by CENTRIC:
Fits Vehicles
- Lexus IS F (2008-2014)
