Centric 226.20028 - C-Tek Standard Slotted Brake Rotor
$6999
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

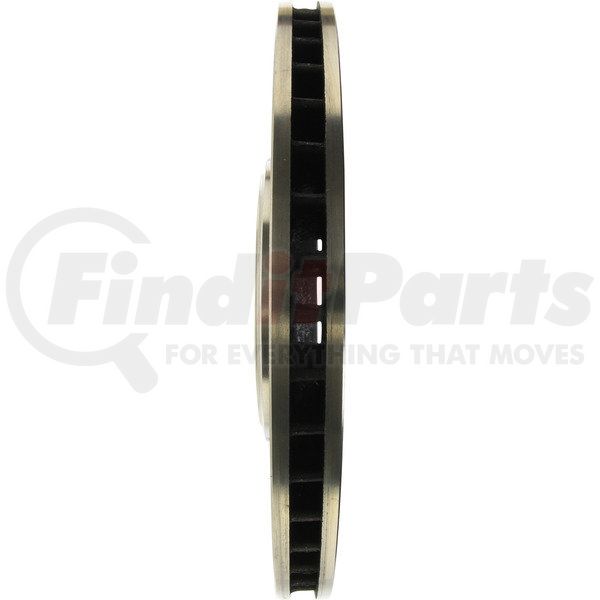

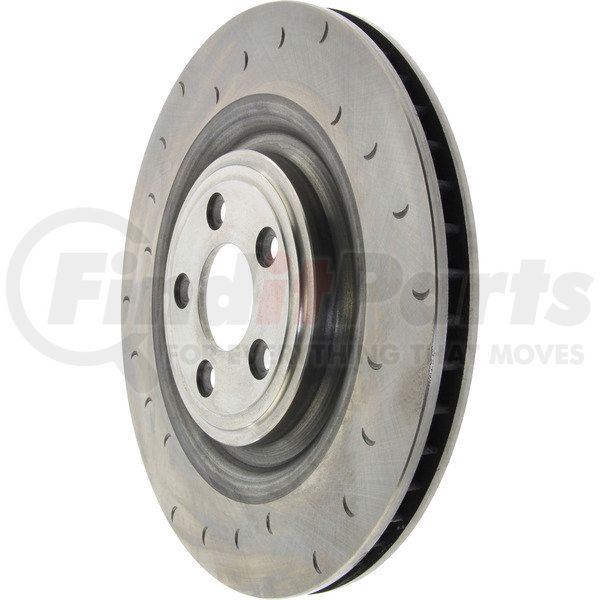

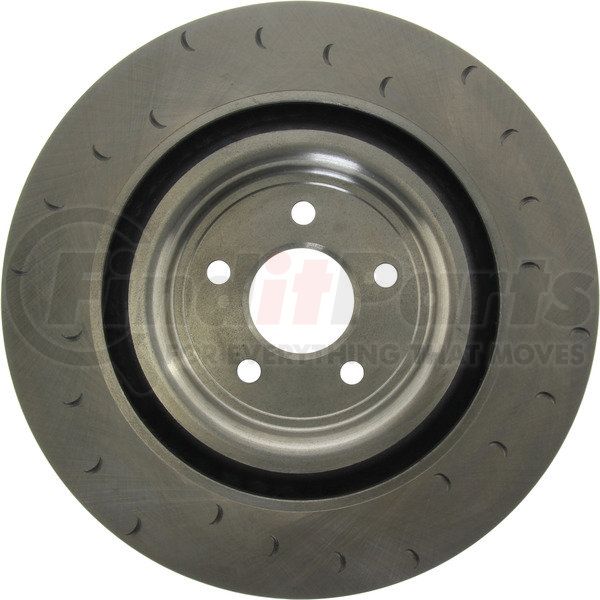

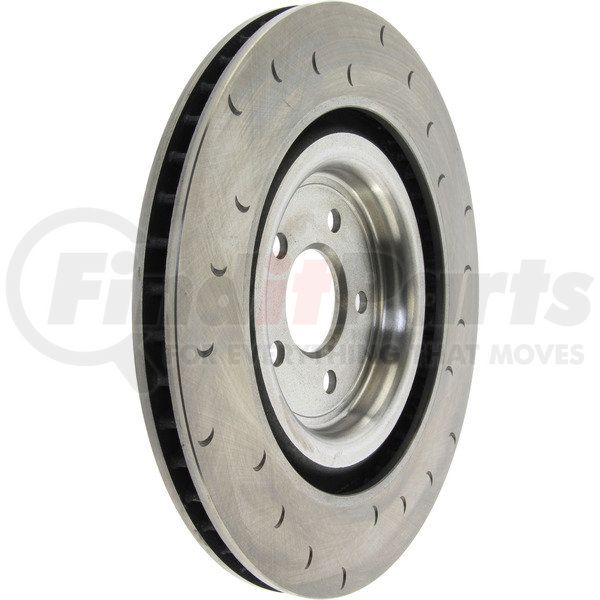

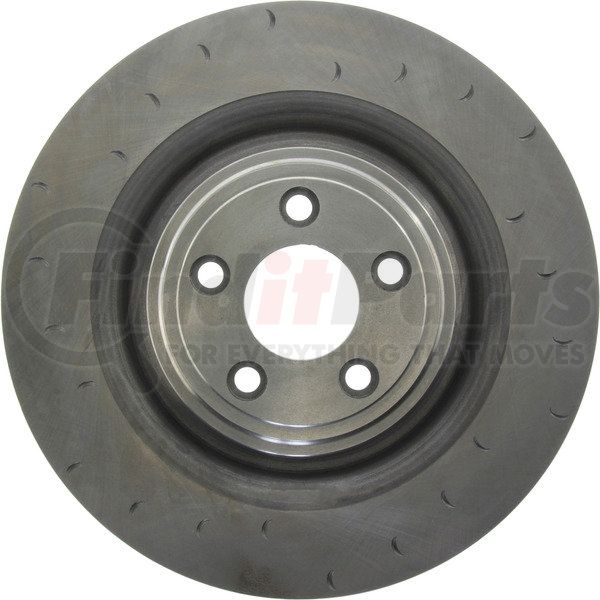

C-Tek Standard Slotted Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Slotted for increased bite; improved looks and better performance
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 9.320 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Lbs | 20.500 |
| Product Grade [cntrc] | Standard |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Overall Height | 40.000 MM |
| Overall Height | 1.575 IN |
| Outside Diameter | 350.000 MM |
| Outside Diameter | 13.780 IN |
| ABS Tone Ring Included | No |
| Surface Type | Slotted |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.535 IN |
| Center Hole Diameter | 64.400 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.200 MM |
| Stud/Lug Hole Diameter | 0.559 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890390343 |
Part Interchanges
Fits Vehicles
- Jaguar XKR-S (2012, 2014)
- Jaguar XKR (2008-2012, 2014-2015)
