CENTRIC 123.67030 Part Description
Manufacturer
Product Description

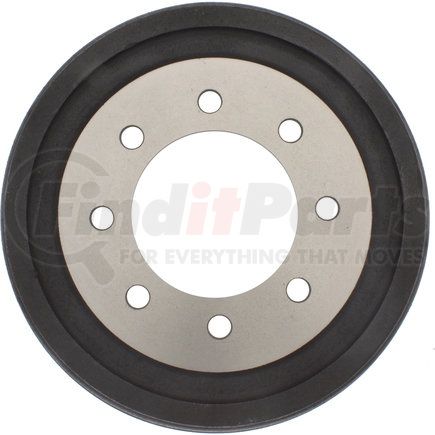

C-Tek Standard Brake Drum
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.67030 Specifications
Product Attributes
| Weight [cntrc] Kgs | 15.682 |
| Weight [cntrc] Lbs | 34.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 120.650 |
| Hub Hole / Register [cntrc] In | 4.750 |
| Height [cntrc] Mm | 107.442 |
| Height [cntrc] In | 4.230 |
| Friction Surface Width [cntrc] Mm | 88.900 |
| Friction Surface Width [cntrc] In | 3.500 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 307.100 MM |
| Maximum Brake Diameter (Discard) | 12.090 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 357.378 MM |
| Outside Diameter | 14.070 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 16.510 MM |
| Mounting Hole Diameter | 0.650 IN |
| Nominal Drum Diameter | 304.800 MM |
| Nominal Drum Diameter | 12.000 IN |
CENTRIC 123.67030 Cross References
| Brand | Part Number |
|---|---|
| N/A | BD125511, E127-72-035, E128-72-035, 80025, BD80025, 80025G, 52008325, 140685, PDR0685, 203250, 6401707, 440-1707, AD8730, AD8730E, E12772035, E12872035, E11101, 87625, 2339209, YH140685, 23097, BD1653, 9625, 9625R, 9625DGS, 8840030, 36540048 |
| PRONTO | BD80025 |
| RAYBESTOS | 9625, 9625R |
| WAGNER | BD125511 |
CENTRIC 123.67030 Fits Vehicles
- Dodge B350 (1994)
- Dodge B3500 (1995-1997)
- Dodge B250 (1994)
- Dodge B2500 (1995-1997)
