CENTRIC 407.62020 Part Description
Manufacturer
Product Description

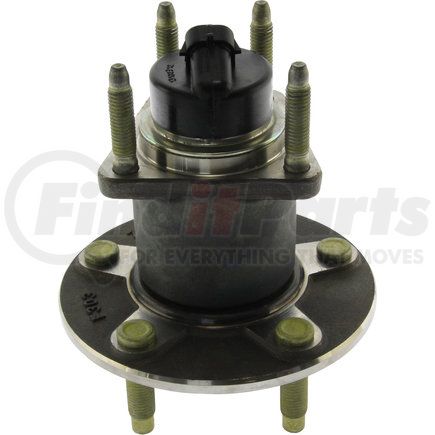

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
CENTRIC 407.62020 Specifications
Product Attributes
| Bolt Circle Diameter [cntrc] In | 4.331 |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] Mm | 110.000 |
| Mouting Thread Size [cntrc] Mm | 10.000 |
| Off-set [cntrc] Mm | 3.075 |
| Mounting Hole Qty [cntrc] | 4 |
| Off-set [cntrc] In | 78.110 |
| Inner Mount Pilot [cntrc] Mm | 59.590 |
| Product Grade [cntrc] | Premium |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Notes [cntrc] | Studs 4 x M10-1.5 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 64.640 MM |
| Wheel Pilot Diameter | 2.545 IN |
| Brake Pilot Diameter | 65.020 MM |
| Brake Pilot Diameter | 2.560 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.499 IN |
| Flange Diameter | 139.670 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890568032 |
CENTRIC 407.62020 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | WH512250, H512250, 512250, BR930488, RW8250, WE60816, 1588 9806, 15889806, 2271 5555, 22715555, 712250, HA590088, 7467603UR, RW20107 |
CENTRIC 407.62020 Fits Vehicles
- Pontiac G4 (2006)
- Pontiac Pursuit (2006)
- Pontiac G5 (2007-2010)
- Chevrolet HHR (2006-2011)
- Chevrolet Cobalt (2005-2010)
- Saturn Ion (2004-2007)
