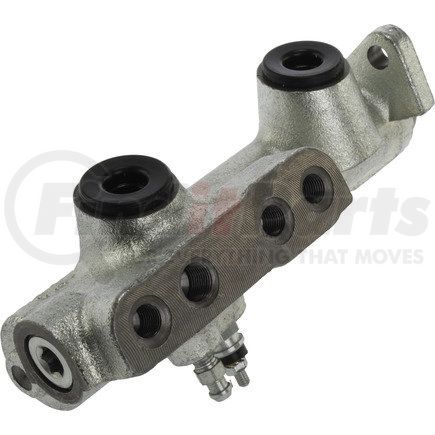

Centric 130.11000 - Centric Premium Brake Master Cylinder
$8349
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Product Grade [cntrc] | Premium |
| Boss, Nipple Or Port: Rear: #b [cntrc] | M10-1.00 bbl |
| Boss, Nipple Or Port: Center, Bottom [cntrc] | M12-1.00 open |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 bbl |
| Secondary Outlet Flare Type [cntrc] | Bubble |
| Weight [cntrc] Lbs | 3.5 |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M10-1.00 bbl |
| Push Rod: Length / Depth [cntrc] In | 0.699 |
| Primary Outlet Flare Type [cntrc] | Bubble |
| Boss, Nipple Or Port: Rear, Bottom [cntrc] | screw |
| Boss, Nipple Or Port: Front, Left: #b [cntrc] | M12-1.00 bbl |
| Publication Bore [cntrc] | 20mm |
| Weight [cntrc] Kgs | 1.59 |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 20.000 MM |
| Master Cylinder Bore Diameter | 0.787 IN |
| Bleeder Screw Included | Yes |
| Brake Booster Included | No |
| Master Cylinder Cap Included | No |
| Master Cylinder Material | Cast Iron |
| Push Rod Included | No |
| Reservoir Included | No |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 12.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 4 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 20.000 MM |
| Bore Size | 0.787 IN |
| Secondary Outlet Thread Size | M12-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Bleeder Screw Quantity | 1 |
| Brake Pressure Switch Required | Yes |
| Brake Pressure Switch Quantity | 1 |
| Brake Pressure Switch(s) Included | No |
| Primary Outlet Flare Type | Bubble |
| Secondary Outlet Flare Type | Bubble |
| Primary Bore Diameter | 20.000 MM |
| Primary Bore Diameter | 0.787 IN |
| Reservoir Style | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | IT |
| UPC | 805890000150 |
Part Interchanges
Fits Vehicles
- Renault R5 (1976)
- Renault LeCar (1977-1983)
