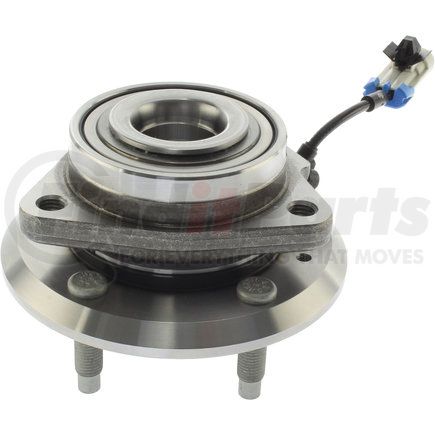

Centric 402.62020 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$25349
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Bolt Circle Diameter [cntrc] In | 4.331 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Thread Pitch To Wheel Mounting [cntrc] In | 20.000 |
| Off-set [cntrc] In | 39.070 |
| Bolt Circle Diameter [cntrc] Mm | 110.010 |
| Off-set [cntrc] Mm | 1.538 |
| Product Grade [cntrc] | Premium |
| Notes [cntrc] | Flange Hole 2x 0.533// Retaining Holes 1x m6-1.0 |
| Inner Mount Pilot [cntrc] Mm | 90.020 |
| Mounting Hole Qty [cntrc] | 3 |
| Inner Mount Pilot [cntrc] In | 3.544 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Spline Quantity | 30 |
| Wheel Stud Size | 0.500 IN |
| Wheel Pilot Diameter | 64.950 MM |
| Wheel Pilot Diameter | 2.557 IN |
| Brake Pilot Diameter | 69.900 MM |
| Brake Pilot Diameter | 2.752 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.393 IN |
| Flange Diameter | 136.980 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | DE |
| UPC | 805890564249 |
Part Interchanges
Fits Vehicles
- Saturn Sky (2007-2010)
- Pontiac Solstice (2006-2009)
