(888) 312-8812 Login SignupCENTRIC 123.63010 C-Tek Standard Brake Drum
Tap to view 1 more
$67.24
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.63010 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity

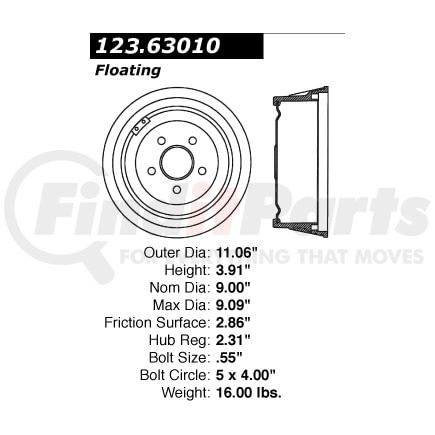

CENTRIC 123.63010 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.273 |
| Weight [cntrc] Lbs | 16.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 101.600 |
| Bolt Circle Diameter [cntrc] In | 4.000 |
| Hub Hole / Register [cntrc] Mm | 58.674 |
| Hub Hole / Register [cntrc] In | 2.310 |
| Height [cntrc] Mm | 99.314 |
| Height [cntrc] In | 3.910 |
| Friction Surface Width [cntrc] Mm | 72.644 |
| Friction Surface Width [cntrc] In | 2.860 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.900 MM |
| Maximum Brake Diameter (Discard) | 9.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 280.924 MM |
| Outside Diameter | 11.060 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 13.970 MM |
| Mounting Hole Diameter | 0.550 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890209775 |
CENTRIC 123.63010 Cross References
CENTRIC 123.63010 Fits Vehicles
- Plymouth Scamp (1971-1972)
- Plymouth Duster (1970-1972)
- Plymouth Valiant (1967-1972)
- Dodge Dart (1967-1972)
