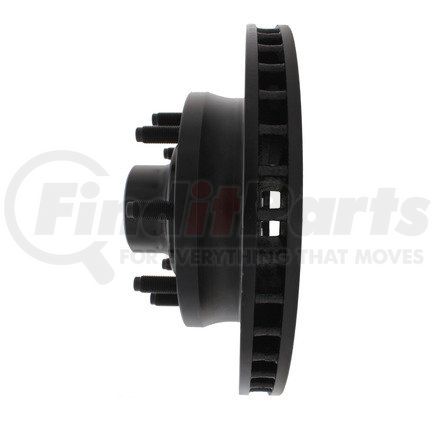

CENTRIC 120.67030 Centric Premium Brake Rotor

★★★★★ (0)
Centric 120.67030 Disc Brake Rotor and Hub Assembly Centric Premium Brake Rotor
CENTRIC
Tap to view 4 more

$229.47

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 120.67030 Part Description

Manufacturer

CENTRIC

Product Description

Centric Premium Brake Rotor

Features & Benefits

  • Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life

CENTRIC 120.67030 Specifications

Product Attributes

Product Grade [cntrc]Premium
Outer Bearing # [cntrc]415.68002
Disc Mounting [cntrc]Hub & Rotor
Inner Bearing # [cntrc]410.91035
Weight [cntrc] Lbs36.000
Inner Seal # [cntrc]417.66008
Weight [cntrc] Kgs16.360
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Vane Style [cntrc]Straight
Misc Holes [cntrc]0
Discard Thickness30.510 MM
Discard Thickness1.201 IN
Nominal Thickness32.700 MM
Nominal Thickness1.287 IN
Hat FinishCoated
Stud Thread Diameter0.563 IN
Overall Height131.500 MM
Overall Height5.177 IN
ABS Tone Ring IncludedYes
Surface TypeSmooth
Rotor Outside Diameter317.800 MM
Rotor Outside Diameter12.512 in
Solid Or Vented Type RotorVented
Bolt Thread Pitch18.000 IN
Bearings IncludedNo
Center Hole Diameter121.000 MM
Center Hole Diameter4.764 IN
Mounting Bolt Hole Circle Diameter165.100 MM
Mounting Bolt Hole Circle Diameter6.500 IN
Stud/Lug Hole Quantity8

Additional Information

Harmonized Tariff Code (Schedule B)8708300050
Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00805890044130

CENTRIC 120.67030 Cross References

BrandPart Number
N/ABD125387, E125-72-035, 6491950, 5374, 5374G, 107047, 52007929, 141923, 86447, 86452, 4886452, 1219, AR8730, D17732, E9888, E12572035, 120.67030, 5374DSR, YH141923, 5374DSL, X50876, 27082, BR1974, 8940030, 60040078
NEOTEK107047GF
Neotek Premium Drums and Rotors107047GF
RAYBESTOS76452, 76452PER, 76452R
Raybestos Brakes76452, 76452PER, 76452R
WAGNERBD125387

CENTRIC 120.67030 Fits Vehicles

  • Dodge Ram 2500 (1994-1999)
