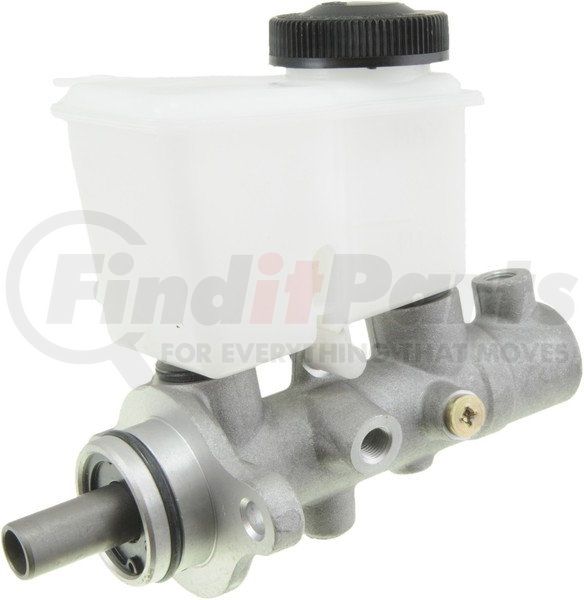

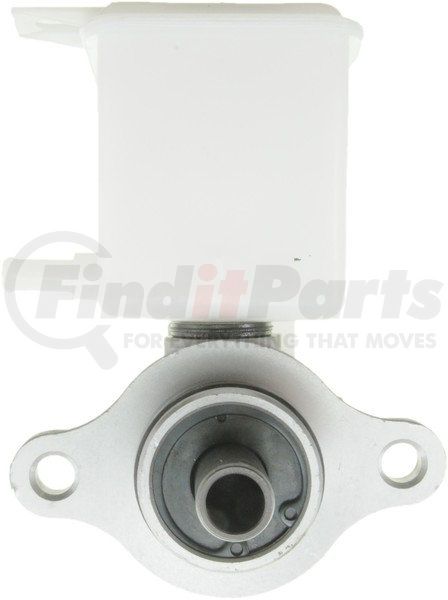

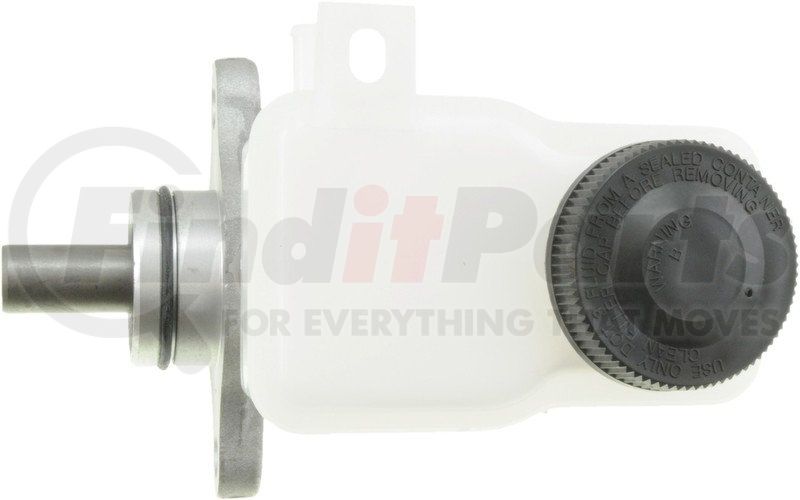

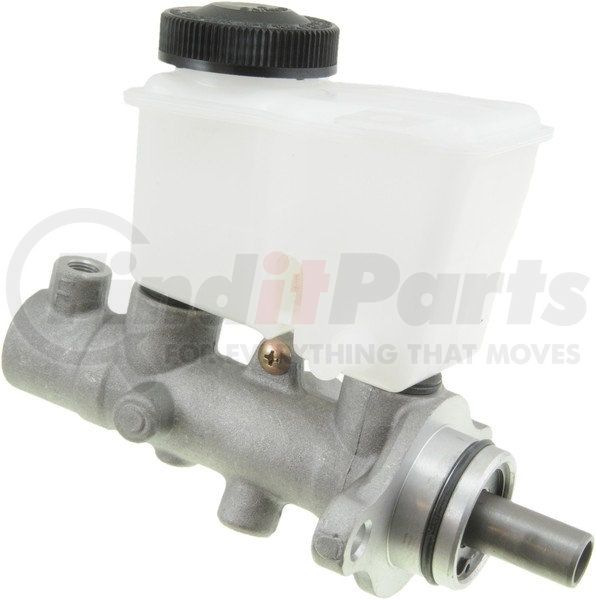

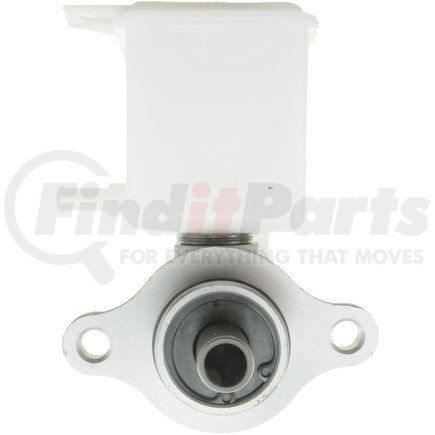

Dorman M630222 - Brake Master Cylinder
$15199
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DORMAN part description
Product Description
Brake Master Cylinder
Application Summary
Mazda Protege 2003-01, Mazda Protege5 2003-02
Features & Benefits
- Precise replacement - cylinder housing is constructed to match the casting material of the original part and ensure similar performance
- Durable design - all rubber components are made of high-quality EPDM compound for resistance to glycol-based brake fluid
- 100% new - made entirely of new materials, not remanufactured, to ensure highest quality and safety
- Strict specifications - made to meet rigorous SAE International standards
Brake, Master, Cylinder, Brakes, Cylinders
Product Attributes
| Mounting Hardware Included | Non |
| Master Cylinder Bore Diameter | 0.938 IN |
| Master Cylinder Material | Aluminio |
| Reservoir Included | Oui |
| Secondary Outlet Thread Diameter | 10 MM |
| Sensor Included | Non |
| Primary Outlet Thread Pitch | 1 mm MM |
| Number of Outlets | 2 |
| Package Contents | Master Cylinder |
| Rearward Outlet Size | M10 X 1.0 |
| Contenidos del paquete | Cilindro maestro |
| Rearward Outlet Size | M10 x 1,0 MM |
| Tamaño de la salida trasera | M10 x 1.0 MM |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 8413500080 |
| UPC | 00082702463062 |
| VMRS Code | 013006001 |
| UNSPSC | 25171710 |
Part Interchanges
- Mazda BJ3K4340Z
- Mazda
- CARDONE Reman 11-2787
- CARDONE New 13-2787
- Centric Parts 130.45421
- Bendix 13895
- Wagner Brake F141598
- Aimco M901255
- Wagner Brake MC141598
- Raybestos Brakes MC390539
- Raybestos Brakes MC391135
- Coni-Seal MC511930
- FENCO M55063
- Raybestos Brakes MC390920
- MPA M55063
- DFC Brake Master Cylinders - Archived 355-80074
Fits Vehicles
- Mazda Protege5 (2002-2003)
- Mazda Protege (2001-2003)
