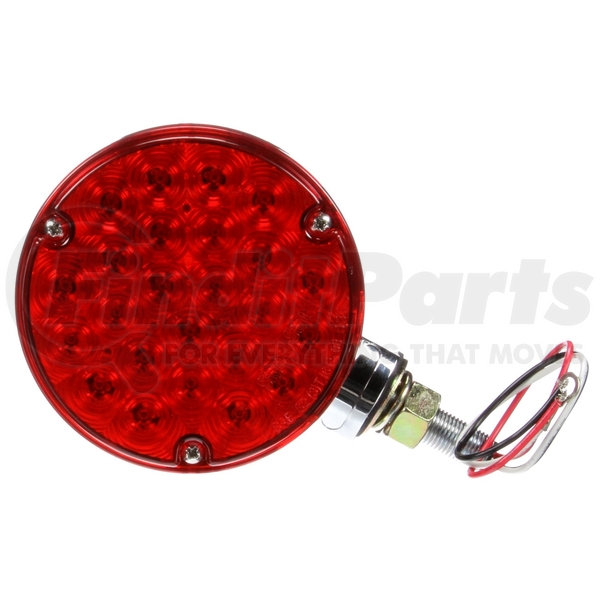

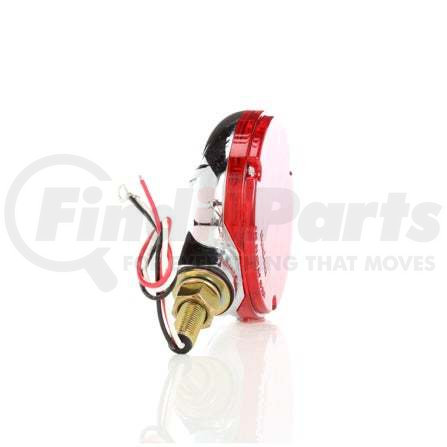

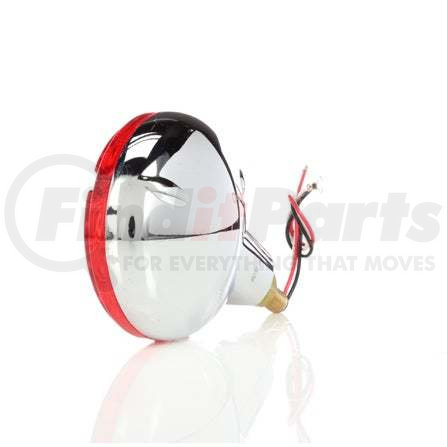

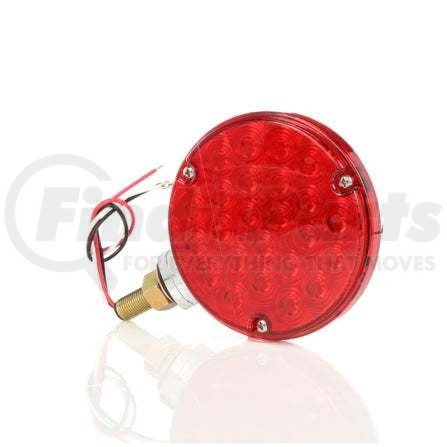

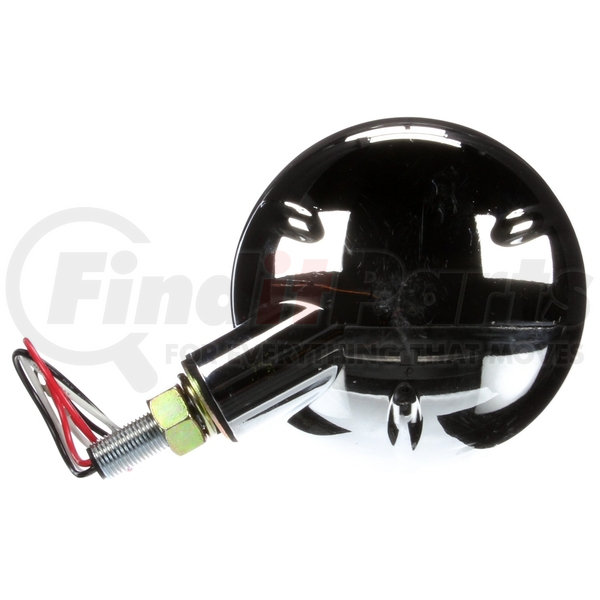

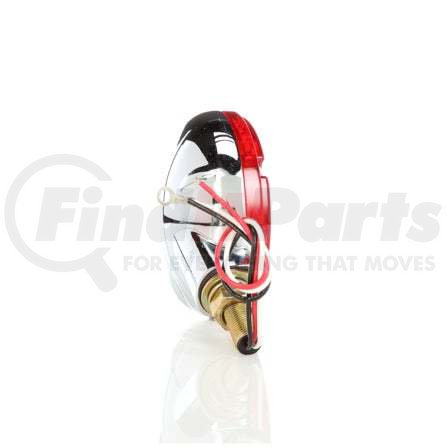

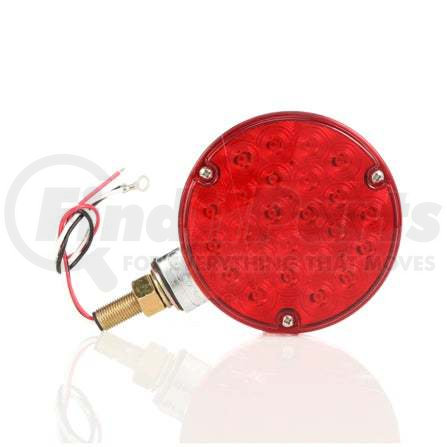

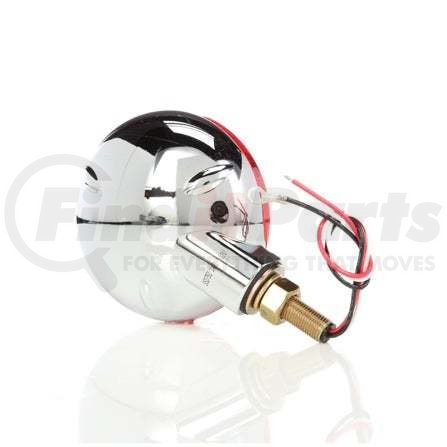

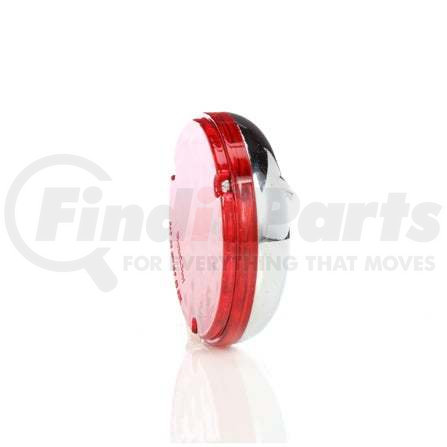

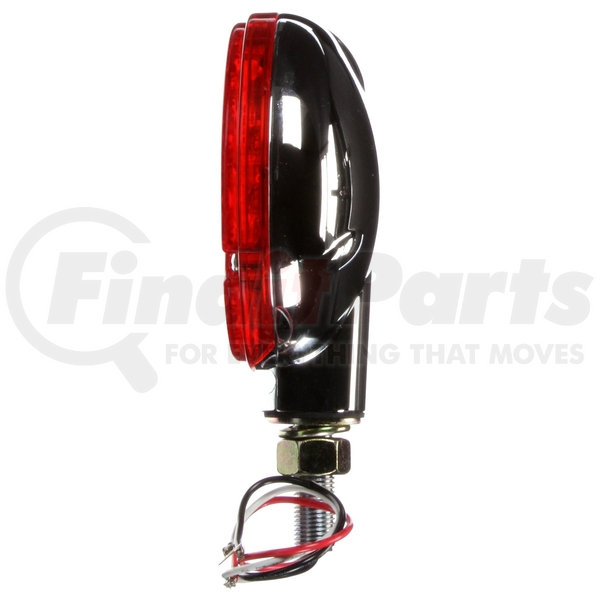

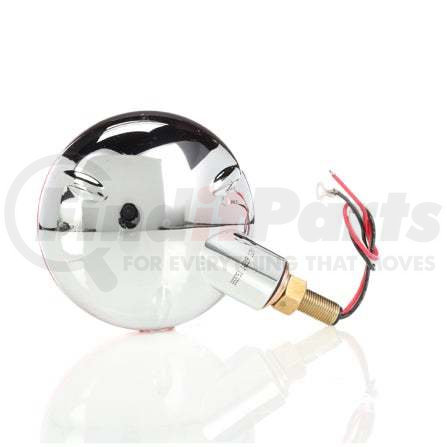

Truck-Lite 27513 - Multi-Purpose Light Bulb - LED, Red, Round, 24 Diode, Single Face, 3 Wire, 1 Stud, Chrome, Stripped End/Ring Terminal, Bulk
- Part Number
- 27513
- Manufacturer
- TRUCK-LITE
- Description
-
Multi-Purpose Light Bulb - LED, Red, Round, 24 Diode, Single Face, 3 Wire, 1 Stud, Chrome, Stripped End/Ring Terminal, Bulk
details
$4149
MSRP: $67.30
Save: $25.81
In stock
limited availability at this price!
. Learn more
TRUCK-LITE part description
Features and Benefits
- 21 Diode Pattern
- Chrome plated housing
- Ideal for show trucks, highway mowing, municipal and farm equipment
Technical Specifications
| Compliance Family | FMVSS 108|DOT|SAE |
| Product Type | Pedestal Light |
| Packaging Type | Bulk |
| KIT (Y/N) | No |
| Series | Signal-Stat |
| Standards Met | S2|I6|T |
| VMRS | 034-003-141 |
| Warranty | 2-Year |

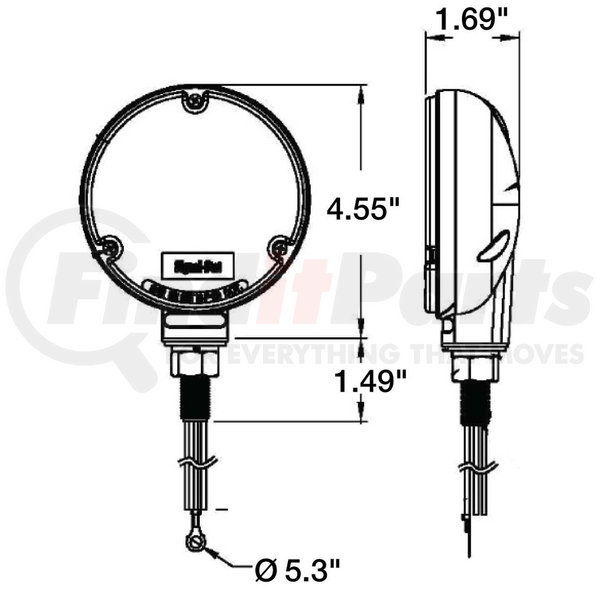

| Total Height_INH | 4.5 |
| Total Height_MMT | 114.3 |
| Total Depth_INH | 1.7 |
| Total Depth_MMT | 43.18 |
| Total Width_INH | 4.5 |
| Total Width_MMT | 114.3 |
| Plug Side One | Hardwired |
| Number of Wires | 3 |
| Lens Height_INH | 4.5 |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Lens Color | Red |
| Sealed/Bulb Replaceable | Sealed |
| Voltage_VLT | 12 |
| Number of Diodes/Bulbs | 24 |
| Mounting Connector Diameter_INH | 0.5 |
| Mounting Orientation | Universal |
| Lens Width_INH | 4.5 |
| Lighting Technology | LED |
| Number of Faces | Single Face |
| Housing Color | Chrome |
| Plug Side Two | Stripped End|Ring Terminal |
| Common Size | 4.5" |
| Mount Type | 1 Stud Mount |
| Current Major_AMP | 0.24 |
| Lamp Connection | Hardwired |
| Side Marker (Y/N) | No |
| Wire Gauge | 18 |
| Current Minor_AMP | 0.01 |
| Housing Material | Zinc |
| Position | Universal |
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
