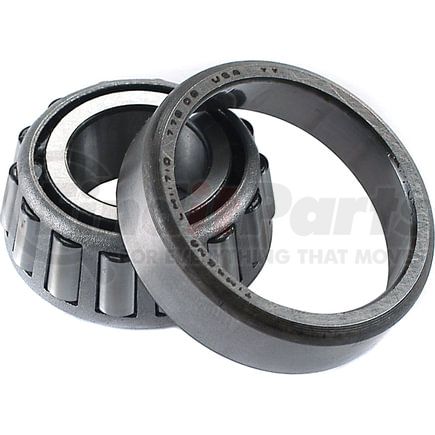

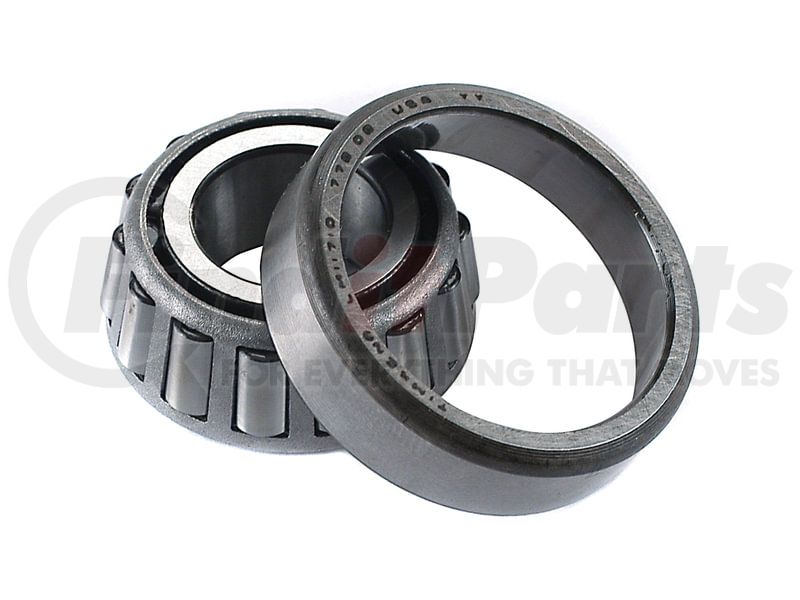

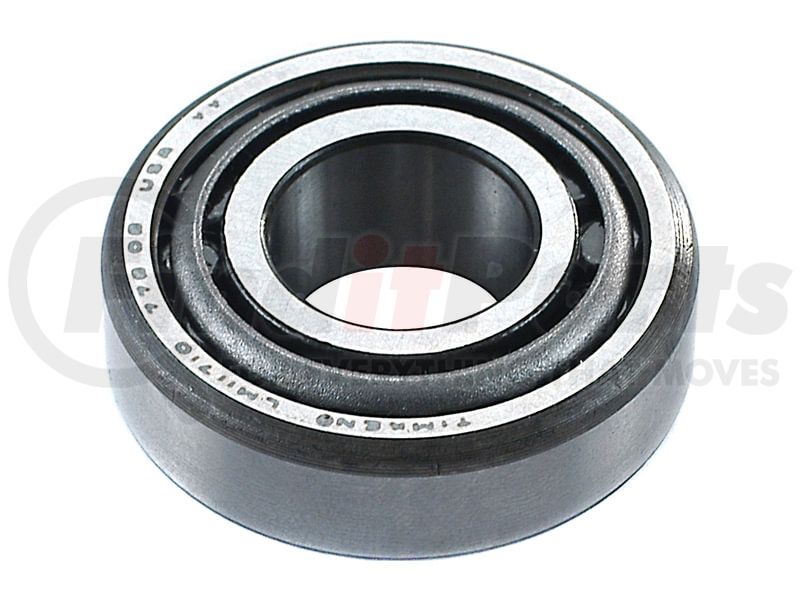

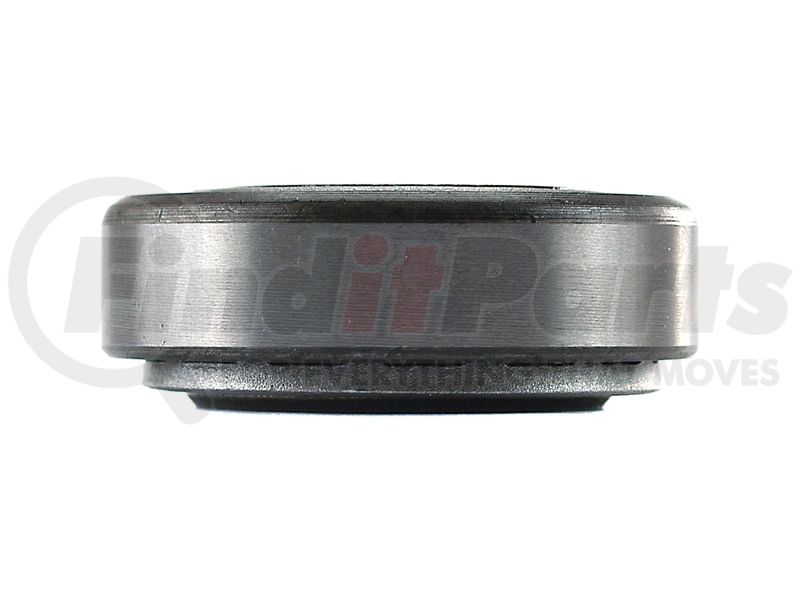

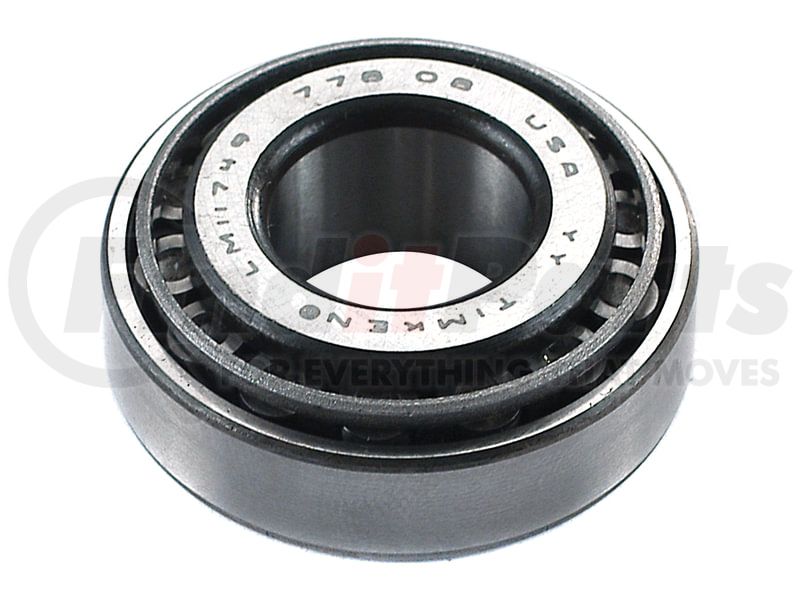

TIMKEN SET403 Tapered Roller Bearing Cone And Cup Assembly

★★★★★ (0)
Timken SET403 Wheel Bearing and Race Set Tapered Roller Bearing Cone And Cup Assembly
TIMKEN
Tap to view 3 more

MSRP: $147.58

$78.99

Save $68.59

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

TIMKEN SET403 Part Description

Manufacturer

TIMKEN

Product Description

Tapered Brg Assy

Features & Benefits

  • Timken Is The Recognized Global Leader In Tapered Roller Bearings.
  • Engineered To Deliver Higher Speeds, Heavier Loads And Longer Life
  • With Capacity To Manage Both Radial And Axial Loads, High Performance Timken Tapered Roller Bearing Components Are Engineered To Provide The Greatest Durability In The Most Compact Space.
  • Unrivaled Technology And Engineering Support
  • Both The Inner (Cone) And Outer (Cup) Should Be Replaced At The Same Time To Maximize Reliability And Life
Weight Rating 38000–48000 lb Drive

TIMKEN SET403 Specifications

Product Attributes

Cone Outside Diameter120.94 MM
Cone Outside Diameter4.7614 IN
Bearing Cup Radius5.16 MM
Bearing Cup Radius0.125 IN
Bearing TypeRolling
California Proposition 65 RequiredN
Cone Inside Diameter95.25 MM
Cone Inside Diameter3.750 IN
Cone Radius3.17 MM
Cone Radius0.203 IN
Cone Width36.32 MM
Cone Width1.430 IN
Cup Outside Diameter6.000 IN
Cup Outside Diameter152.40 MM
Cup Width30.16 MM
Cup Width1.188 IN
Inside Diameter95.25 MM
Inside Diameter3.75 IN
Outside Diameter152.4 MM
Outside Diameter6 IN
Width1.5625 IN
Width39.688 MM
ABS Sensor Ring IncludedN/A
Ball Joint Housing MaterialN/A
Bearing IncludedBearing Assembly
Brake Pilot DiameterN/A
DesignCylindrical
Flange DiameterN/A
Housing MaterialN/A
Hub Pilot DiameterN/A
Inner Race/Cup Inside Diameter123.2184 MM
Inner Race/Cup Inside Diameter4.85112 IN
Inner Ring Width36.322 MM
Inner Ring Width1.43 IN
MaterialSteel
Number Of LugsN/A
Outer Race/Cup Inside Diameter140.9921 MM
Outer Race/Cup Inside Diameter5.55087 IN
Outer Ring Width1.1875 IN
Outer Ring Width30.162 MM
Pre-greasedNo
TypeTapered Roller

Additional Information

Harmonized Tariff Code (HTS)8482200061
Harmonized Tariff Code (Schedule B)8482105048
UPC00053893813905
VMRS Code053016000
UNSPSC31171500

TIMKEN SET403 Cross References

BrandPart Number
OTRSET403
AXLETECHSET403
BCANBHD203, NBSET403
BWP-NSIM-4784
NATIONAL SEALSHD203, 592A
NAVISTARFLTSET403
NTNSET403, NBHD203, NBSET403, 594A/592A
National BearingsHD203
SKFSET403
StemcoSET594A-92A
TORQUE PARTSTR403

TIMKEN SET403 Fits Vehicles

  • Freightliner FL70 (1992-2005)
  • Freightliner M2 106 (2003-2013)
  • Freightliner M2 112 (2009-2013)
  • Ford CF6000 (1987-1990)
  • Ford Explorer (2006-2010)
  • Ford Explorer Sport Trac (2007-2010)
  • Ford F-650 (2000-2003)
  • Ford F-750 (2000-2013, 2015-2017)
  • Hino 258ALP (2008-2013)
  • Hino 268A (2008-2013)
  • Hino 338 (2005-2013)
  • Isuzu FTR (1997-2011)
  • Isuzu FVR (1995-2011)
