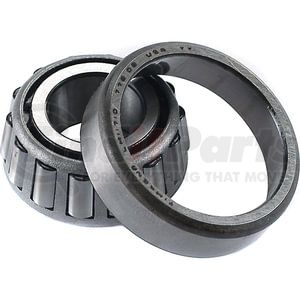

(888) 312-8812 Login SignupTIMKEN SET2 Tapered Roller Bearing Cone And Cup Assembly
Tap to view 3 more
MSRP: $12.78
$1099
Save $1.79
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 21
TIMKEN SET2 Part Description
Manufacturer
Product Description
Tapered Brg Assy
Features & Benefits
- Timken Is The Recognized Global Leader In Tapered Roller Bearings.
- Engineered To Deliver Higher Speeds, Heavier Loads And Longer Life
- With Capacity To Manage Both Radial And Axial Loads, High Performance Timken Tapered Roller Bearing Components Are Engineered To Provide The Greatest Durability In The Most Compact Space.
- Unrivaled Technology And Engineering Support
- Both The Inner (Cone) And Outer (Cup) Should Be Replaced At The Same Time To Maximize Reliability And Life
TIMKEN SET2 Specifications
Product Attributes
| Cone Outside Diameter | 1.237 IN |
| Cone Outside Diameter | 31.42 MM |
| Bearing Cup Radius | 0.046 IN |
| Bearing Cup Radius | 1.17 MM |
| Bearing Type | Rolling |
| California Proposition 65 Required | N |
| Cone Inside Diameter | 19.05 MM |
| Cone Inside Diameter | 0.750 IN |
| Cone Radius | 1.17 MM |
| Cone Radius | 0.046 IN |
| Cone Width | 0.655 IN |
| Cone Width | 16.64 MM |
| Cup Outside Diameter | 45.24 MM |
| Cup Outside Diameter | 1.781 IN |
| Cup Width | 0.475 IN |
| Cup Width | 12.06 MM |
| Inside Diameter | 0.75 IN |
| Inside Diameter | 19.05 MM |
| Outside Diameter | 1.781 IN |
| Outside Diameter | 45.237 MM |
| Width | 15.494 MM |
| Width | 0.61 IN |
| ABS Sensor Ring Included | N/A |
| Ball Joint Housing Material | N/A |
| Bearing Included | Bearing Assembly |
| Brake Pilot Diameter | N/A |
| Design | Cylindrical |
| Flange Diameter | N/A |
| Housing Material | N/A |
| Hub Pilot Diameter | N/A |
| Inner Race/Cup Inside Diameter | 35.541 MM |
| Inner Race/Cup Inside Diameter | 1.39925 IN |
| Inner Ring Width | 0.655 IN |
| Inner Ring Width | 16.637 MM |
| Material | Steel |
| Number Of Lugs | N/A |
| Outer Race/Cup Inside Diameter | 40.3771 MM |
| Outer Race/Cup Inside Diameter | 1.58965 IN |
| Outer Ring Width | 0.475 IN |
| Outer Ring Width | 12.065 MM |
| Pre-greased | No |
| Type | Tapered Roller |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8482105048 |
| Harmonized Tariff Code (HTS) | 8482200040 |
| UPC | 00053893730110 |
| VMRS Code | 053016000 |
| UNSPSC | 31171500 |
TIMKEN SET2 Cross References
TIMKEN SET2 Fits Vehicles
- Volvo 142 (1968-1974)
- Volvo 144 (1967-1974)
- Volvo 145 (1968-1974)
- Volvo 164 (1970-1975)
- Volvo 242 (1975-1981)
- Volvo 244 (1975-1981)
- Volvo 245 (1975-1981)
- Volvo 262 (1976, 1978-1981)
- Volvo 264 (1976-1981)
- Volvo 265 (1976-1981)
- Alfa Romeo GTV-6 (1981-1986)
- Alfa Romeo Milano (1987-1989)
- American Motors AMX (1968-1970, 1979-1980)
- American Motors Ambassador (1958-1974)
- American Motors Concord (1979-1983)
- American Motors Gremlin (1972-1976)
- American Motors Hornet (1970-1976)
- American Motors Javelin (1968-1974)
- American Motors Marlin (1965-1967)
- American Motors Matador (1971-1976)
- American Motors Pacer (1975-1976, 1979-1980)
- American Motors Rambler (1958-1960, 1969)
- American Motors Rebel (1961, 1966-1968, 1970)
- American Motors Spirit (1979-1983)
- Audi 100 (1989-1994)
- Audi 5000 (1978-1988)
- Audi 80 (1988-1992)
- Audi 90 (1988-1991, 1993-1995)
- Audi A4 (1996-2001)
- Audi A6 (1995-1997)
- Audi Cabriolet (1994-1998)
- Avanti II (1968-1985)
- BMW 1500 (1964)
- BMW 1600 (1964)
- BMW 1800ti (1964)
- BMW 3.0CS (1971-1974)
- BMW 3.0CSL (1971)
- BMW 3.0CSi (1971-1974)
- BMW 3.0S (1971-1974)
- BMW 3.0Si (1971)
- BMW 320i (1977-1979)
- BMW 528i (1979-1981)
- BMW 530i (1975-1978)
- BMW 630CSi (1977)
- Buick Apollo (1973-1975)
- Buick Century (1973-1978)
- Buick GS (1970-1972)
- Buick GS 350 (1968-1969)
- Buick GS 400 (1968-1969)
- Buick GS 455 (1970-1972)
- Buick LeSabre (1978)
- Buick Skylark (1961-1972, 1975-1978)
- Buick Sportwagon (1964-1972)
- Cadillac DeVille (1977)
- Cadillac Eldorado (1968-1978)
- Cadillac Fleetwood (1977)
- Cadillac Seville (1976-1977)
- Checker Deluxe (1969-1970)
- Checker Marathon (1961-1967, 1969-1982)
- Checker Superba (1960-1963)
- Chevrolet Bel Air (1961-1968)
- Chevrolet Blazer (1969-1970)
- Chevrolet C10 Pickup (1962-1970)
- Chevrolet C10 Suburban (1968-1970)
- Chevrolet Camaro (1967-1978)
- Chevrolet Caprice (1966-1968, 1977-1978)
- Chevrolet Chevelle (1964-1973)
- Chevrolet Chevy II (1964-1968)
- Chevrolet Corvair (1965-1969)
- Chevrolet Corvette (1963-1968)
- Chevrolet El Camino (1964-1978)
- Chevrolet G10 Van (1964-1972)
- Chevrolet G20 Van (1967-1974)
- Chevrolet Impala (1961-1968, 1977-1978)
- Chevrolet Kingswood (1961)
- Chevrolet Malibu (1964-1967, 1973-1978)
- Chevrolet Monte Carlo (1970-1978)
- Chevrolet Nova (1969-1978)
- Chevrolet P10 Series (1964-1967)
- Chevrolet P20 Series (1967)
- Chevrolet P20 Van (1968-1974)
- Chrysler 300 (1956-1971)
- Chrysler Conquest (1987-1989)
- Chrysler Cordoba (1975-1983)
- Chrysler Fifth Avenue (1983-1989)
- Chrysler Imperial (1981-1983)
- Chrysler LeBaron (1977-1982)
- Chrysler Nassau (1956)
- Chrysler New Yorker (1956-1972, 1979-1982)
- Chrysler Newport (1956-1972, 1979-1981)
- Chrysler Saratoga (1957-1960)
- Chrysler Town & Country (1956-1972, 1979-1982)
- Chrysler Windsor (1956-1961)
- DeSoto Adventurer (1959-1961)
- DeSoto DeSoto (1961)
- DeSoto Firedome (1959)
- DeSoto Fireflite (1959-1961)
- DeSoto Firesweep (1959)
- Dodge 330 (1963-1964)
- Dodge 400 (1982)
- Dodge 880 (1963-1964)
- Dodge A100 (1964-1970)
- Dodge A100 Pickup (1967-1970)
- Dodge A100 Truck (1964-1970)
- Dodge A108 Van (1967-1970)
- Dodge Aspen (1976-1980)
- Dodge B100 Van (1971-1972)
- Dodge B150 (1988-1993)
- Dodge B200 Van (1971-1972)
- Dodge Challenger (1970-1974, 1978-1983)
- Dodge Charger (1966-1978)
- Dodge Colt (1978-1980)
- Dodge Conquest (1984-1986)
- Dodge Coronet (1955-1959, 1965-1975)
- Dodge D100 (1988-1989)
- Dodge D100 Pickup (1957-1959, 1968-1972)
- Dodge D100 Series (1960-1967)
- Dodge D150 (1990-1991)
- Dodge Dart (1960-1962, 1965-1976)
- Dodge Diplomat (1977-1989)
- Dodge Lancer (1961-1962)
- Dodge Magnum (1978-1979)
- Dodge Matador (1960)
- Dodge Mirada (1980-1983)
- Dodge Monaco (1965-1972, 1977-1978)
- Dodge Omni (1978-1982)
- Dodge Polara (1960-1972)
- Dodge Rampage (1982)
- Dodge St. Regis (1979-1981)
- Fiat 124 (1967-1983)
- Fiat 131 (1975-1978)
- Fiat 1500 (1964-1967)
- Fiat Brava (1978-1981)
- Ford Aerostar (1986-1997)
- Ford Bronco II (1986-1989)
- Ford Consul (1961-1963)
- Ford Cortina (1964-1970)
- Ford Country Sedan (1955-1969)
- Ford Country Squire (1955-1969)
- Ford Courier Sedan Delivery (1955-1960)
- Ford Custom 300 (1957-1960)
- Ford Custom 500 (1964-1969)
- Ford Customline (1955-1956)
- Ford E-100 Econoline (1969-1970)
- Ford Explorer (1991-2001)
- Ford Explorer Sport (2001-2003)
- Ford Explorer Sport Trac (2001-2005)
- Ford F-100 (1957-1966)
- Ford Fairlane (1962-1969)
- Ford Falcon (1963-1969)
- Ford Falcon Sedan Delivery (1965)
- Ford GT40 (1964-1966)
- Ford Galaxie (1959-1967)
- Ford Galaxie 500 (1962-1969)
- Ford LTD (1965-1969)
- Ford Mainline (1955-1956)
- Ford Mustang (1964-1969, 1980-1983)
- Ford P-100 (1960-1967)
- Ford Ranch Wagon (1955-1969)
- Ford Ranchero (1962-1969)
- Ford Ranger (1983-2011)
- Ford Skyliner (1955-1959)
- Ford Sunliner (1955-1960)
- Ford Tempo (1987-1991)
- Ford Thunderbird (1955-1962, 1968-1969)
- Ford Torino (1968-1969)
- Ford Victoria (1955-1960)
- Ford Zephyr (1963)
- Ford Zodiac (1963-1964)
- GMC 1000 Series (1962-1964)
- GMC 1500 Series (1962-1964)
- GMC C15/C1500 Pickup (1967-1970)
- GMC C15/C1500 Suburban (1968-1970)
- GMC Caballero (1978)
- GMC G1000 Series (1964-1966)
- GMC G15/G1500 Van (1967-1972)
- GMC G25/G2500 Van (1967-1974)
- GMC Jimmy (1970)
- GMC P15/P1500 Van (1967-1970)
- GMC P25/P2500 Van (1967-1974)
- GMC PB1000 Series (1964-1966)
- GMC PB15 Series (1966)
- GMC Sprint (1971-1977)
- Hillman Husky (1956-1966)
- Hillman Minx (1956-1965)
- Honda Accord (1976-1985)
- Honda Civic (1980-1983)
- Honda Prelude (1979-1987)
- Humber Hawk (1960-1961)
- Humber Super Snipe (1959-1961)
- Hyundai Sonata (1989-1991)
- INFINITI M30 (1990-1992)
- Jaguar 3.4 (1960)
- Jaguar 3.8 (1960-1966)
- Jaguar 340 (1967)
- Jaguar 420 (1967)
- Jaguar Mark X (1962-1966)
- Jaguar XJ12 (1975-1976)
- Jaguar XJ6 (1972-1976)
- Jaguar XJS (1976)
- Jaguar XKE (1961-1974)
- Jeep Cherokee (1986-1988)
- Jeep Comanche (1986-1989)
- Jensen Interceptor (1971-1976)
- Kia Rio (2001-2005)
- Lincoln Mark III (1968-1969)
- Lotus Eclat (1976-1979)
- Lotus Elan (1967-1974)
- Lotus Elite (1974-1980)
- Lotus Esprit (1981-1989)
- Lotus Europa (1967-1975)
- MG MGA (1956-1962)
- MG MGB (1965-1980)
- MG MGC (1968-1969)
- MG Magnette (1959-1965)
- Maserati 228i (1990)
- Maserati 430i (1990)
- Maserati Biturbo (1984-1987)
- Maserati Quattroporte (1979-1986)
- Maserati Spyder (1989-1991)
- Mazda 323 (1986-1989)
- Mazda 616 (1970-1971)
- Mazda 626 (1979-1987)
- Mazda 808 (1972-1977)
- Mazda B2300 (1994-1997, 2001-2010)
- Mazda B2500 (1998-2001)
- Mazda B3000 (1994-2008)
- Mazda B4000 (1994-2009)
- Mazda Cosmo (1976-1978)
- Mazda Mizer (1976-1977)
- Mazda Navajo (1992-1994)
- Mazda RX-2 (1971-1974)
- Mazda RX-3 (1975-1977)
- Mazda RX-4 (1974-1978)
- Mercedes-Benz 180D (1962-1963)
- Mercedes-Benz 190B (1962)
- Mercedes-Benz 190C (1962-1965)
- Mercedes-Benz 190DB (1962)
- Mercedes-Benz 190DC (1963-1965)
- Mercedes-Benz 190E (1986-1988)
- Mercedes-Benz 190SL (1962-1963)
- Mercedes-Benz 220 (1962-1965, 1968-1973)
- Mercedes-Benz 220D (1968-1973)
- Mercedes-Benz 220S (1962-1965)
- Mercedes-Benz 220SE (1962-1966)
- Mercedes-Benz 230 (1966-1969, 1974-1975, 1977-1978)
- Mercedes-Benz 230SL (1963-1966)
- Mercedes-Benz 240D (1974-1983)
- Mercedes-Benz 250C (1970-1972)
- Mercedes-Benz 250S (1966-1967)
- Mercedes-Benz 250SE (1966-1967)
- Mercedes-Benz 250SL (1967)
- Mercedes-Benz 260E (1987-1989)
- Mercedes-Benz 280 (1973-1976)
- Mercedes-Benz 280C (1973-1976)
- Mercedes-Benz 280CE (1978-1981)
- Mercedes-Benz 280E (1977-1981)
- Mercedes-Benz 280S (1968-1971, 1975-1976)
- Mercedes-Benz 280SE (1968-1973, 1977-1980)
- Mercedes-Benz 280SEL (1968-1973)
- Mercedes-Benz 280SL (1968-1971)
- Mercedes-Benz 300CE (1988-1992)
- Mercedes-Benz 300D (1987, 1990-1993)
- Mercedes-Benz 300E (1986-1992)
- Mercedes-Benz 300SEL (1968-1973)
- Mercedes-Benz 300TD (1987)
- Mercedes-Benz 300TE (1988-1992)
- Mercedes-Benz 380SE (1984-1985)
- Mercedes-Benz 380SEC (1982-1983)
- Mercedes-Benz 380SEL (1981-1983)
- Mercedes-Benz 380SL (1981-1985)
- Mercedes-Benz 380SLC (1981)
- Mercedes-Benz 450SL (1973-1980)
- Mercedes-Benz 450SLC (1973-1980)
- Mercedes-Benz 560SL (1986-1989)
- Mercedes-Benz 600 (1965-1972)
- Mercedes-Benz E300 (1995-1999)
- Mercedes-Benz E320 (1994-1995)
- Mercury Brougham (1967)
- Mercury Caliente (1964-1967)
- Mercury Capri (1970-1974, 1976-1977, 1980-1983, 1991-1994)
- Mercury Colony Park (1957, 1961-1973)
- Mercury Comet (1966-1969)
- Mercury Commuter (1957, 1961-1968)
- Mercury Cougar (1967-1969)
- Mercury Cyclone (1966-1969)
- Mercury Marauder (1963-1970)
- Mercury Marquis (1967-1973)
- Mercury Medalist (1956)
- Mercury Montclair (1955-1958, 1964-1968)
- Mercury Montego (1968-1969)
- Mercury Mountaineer (1997-2001)
- Mercury Park Lane (1964-1968)
- Mercury Topaz (1988-1991)
- Mercury Tracer (1987-1989)
- Mercury Villager (1963-1967)
- Mercury Voyager (1966-1967)
- Mitsubishi Galant (1988)
- Mitsubishi Starion (1983-1989)
- Nissan 200SX (1977-1988)
- Nissan 240Z (1970-1973)
- Nissan 260Z (1974)
- Nissan 280Z (1975-1978)
- Nissan 280ZX (1979-1983)
- Nissan 300ZX (1984-1989)
- Nissan 310 (1979-1982)
- Nissan 510 (1978-1981)
- Nissan 610 (1973-1976)
- Nissan 710 (1974-1977)
- Nissan 810 (1977-1981)
- Nissan B210 (1976-1978)
- Nissan Maxima (1982-1988)
- Nissan Micra (1985-1989)
- Nissan Pulsar (1983)
- Nissan Pulsar NX (1983-1986)
- Nissan Sentra (1982-1988)
- Nissan Stanza (1983-1989)
- Oldsmobile 98 (1965, 1977-1978)
- Oldsmobile Custom Cruiser (1977-1978)
- Oldsmobile Cutlass (1961-1963, 1966-1978)
- Oldsmobile Cutlass Calais (1978)
- Oldsmobile Cutlass Salon (1975-1978)
- Oldsmobile Cutlass Supreme (1967-1978)
- Oldsmobile Cutlass Tiara (1976)
- Oldsmobile Delta 88 (1965, 1977-1978)
- Oldsmobile Dynamic 88 (1965)
- Oldsmobile F85 (1961-1972)
- Oldsmobile Jetfire (1962-1963)
- Oldsmobile Jetstar 88 (1965)
- Oldsmobile Omega (1973-1974)
- Oldsmobile Starfire (1965)
- Oldsmobile Toronado (1966-1974)
- Oldsmobile Vista Cruiser (1964-1975)
- Packard Clipper (1956-1957)
- Packard Hawk (1958)
- Packard Packard (1958)
- Plymouth Arrow (1976-1980)
- Plymouth Barracuda (1965-1974)
- Plymouth Belvedere (1955-1971)
- Plymouth Conquest (1984-1986)
- Plymouth Cricket (1971-1973)
- Plymouth Cuda (1970-1974)
- Plymouth Duster (1970-1976)
- Plymouth Fleet Special (1962-1963)
- Plymouth Fury (1956-1972, 1975-1978)
- Plymouth Fury I (1968-1972)
- Plymouth Fury II (1965-1972)
- Plymouth Fury III (1965-1972)
- Plymouth GTX (1967-1971)
- Plymouth Gran Fury (1972, 1980-1989)
- Plymouth Horizon (1978-1982)
- Plymouth Reliant (1981-1982)
- Plymouth Road Runner (1968-1972)
- Plymouth Sapporo (1978-1983)
- Plymouth Satellite (1965-1974)
- Plymouth Savoy (1955-1964)
- Plymouth Valiant (1965-1976)
- Plymouth Volare (1976-1977)
- Pontiac Bonneville (1962-1978)
- Pontiac Catalina (1962-1978)
- Pontiac Firebird (1967-1978)
- Pontiac GTO (1964-1973)
- Pontiac Grand Am (1973-1975, 1978)
- Pontiac Grand LeMans (1975-1978)
- Pontiac Grand Prix (1962-1978)
- Pontiac Grand Safari (1971-1978)
- Pontiac Grandville (1971-1975)
- Pontiac LeMans (1963-1978)
- Pontiac Parisienne (1976-1978)
- Pontiac Phoenix (1977-1978)
- Pontiac Star Chief (1962-1966)
- Pontiac Tempest (1961-1970)
- Pontiac Ventura (1971-1977)
- Porsche 356C (1964)
- Porsche 911 (1965-1989)
- Porsche 912 (1965-1969, 1976)
- Porsche 914 (1970-1971)
- Porsche 924 (1980-1982, 1987-1988)
- Porsche 930 (1978-1979)
- Porsche 944 (1983-1986)
- Reliant Sabre (1962-1963)
- Reliant Scimitar (1964-1974)
- Rover 3500S (1969-1971)
- Simca Ariane (1959-1961)
- Simca Vedette (1957-1961)
- Singer Gazelle (1957-1965)
- Toyota Celica (1976-1986)
- Toyota Corona (1974-1982)
- Toyota Cressida (1978-1988)
- Toyota Crown (1967-1971)
- Toyota Mark II (1972-1976)
- Toyota Supra (1986)
- Toyota Van (1984-1989)
- Toyota Van Wagon (1988)
- Triumph Stag (1971-1973)
- Triumph TR250 (1968)
- Volkswagen Campmobile (1968-1974)
- Volkswagen Transporter (1964-1967)
- Volkswagen Vanagon (1980-1984)
TIMKEN SET2 Customer Reviews
No reviews yet
Be the first to review this product!
TIMKEN SET2 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
Related Searches
driveline and axles parts
wheel bearings, seals, and related components parts
wheel bearing race
drive axle wheel bearing
drive axle wheel bearing assembly
drive axle wheel bearing cone
drive axle wheel bearing cup
drive axle wheel bearing cup and cone
drive axle wheel bearing retainer
ford wheel bearing and race
mercedes-benz wheel bearing and race
dodge wheel bearing and race
