TIMKEN HM518410 Tapered Roller Bearing Cup

Name: Timken HM518410 Tapered Roller Bearing Cup
SKU: hm518410
Price: 33.49 USD
Availability: InStock

Tap to view 3 more

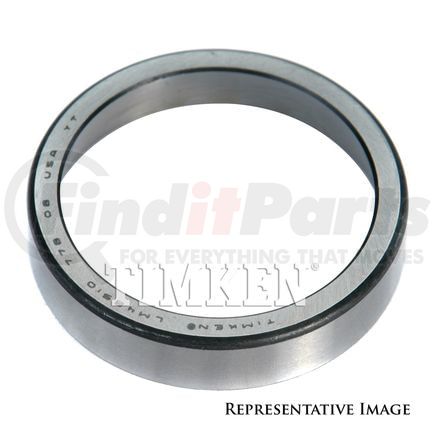

*Representative image - actual part not displayed

MSRP: $54.91

$33.49

Save $21.42

Limited availability at this price!

In Stock

Get as soon as Wednesday, Oct 28

30-day Return Policy On eligible items Details

Free Ground shipping on orders over $499 details

Orders placed over the weekend will be processed the next business day.

TIMKEN HM518410 Part Description

Tapered Bearing Cup

Timken Is The Recognized Global Leader In Tapered Roller Bearings.
Engineered To Deliver Higher Speeds, Heavier Loads And Longer Life
With Capacity To Manage Both Radial And Axial Loads, High Performance Timken Tapered Roller Bearing Components Are Engineered To Provide The Greatest Durability In The Most Compact Space.
Unrivaled Technology And Engineering Support
Both The Inner (Cone) And Outer (Cup) Should Be Replaced At The Same Time To Maximize Reliability And Life

Bearing Cup Radius	3.30 MM
Bearing Cup Radius	0.130 IN
Outside Diameter	6.00 IN
Outside Diameter	152.40 MM
Width	30.16 MM
Width	1.875 IN
California Proposition 65 Required	N
Inside Diameter	N/A
Cup Outside Diameter	6 IN
Cup Outside Diameter	152.4 MM
Bearing Type	Rolling
Cone Width	N/A
Cup width	1.1875 IN
Cup Width	30.162 MM
Design	N/A
Inner Race/Cup Inside Diameter	5.10502 IN
Inner Race/Cup Inside Diameter	129.6675 MM
Inner Ring Width	N/A
Material	N/A
Outer Race/Cup Inside Diameter	5.7414 IN
Outer Race/Cup Inside Diameter	145.8316 MM
Outer Ring Width	1.1875 IN
Outer Ring Width	30.162 MM
Pre-greased	No
Type	Tapered

Harmonized Tariff Code (HTS)	8482991550
Harmonized Tariff Code (Schedule B)	8482105048
UPC	00053893631639
VMRS Code	053016000
UNSPSC	31171500
