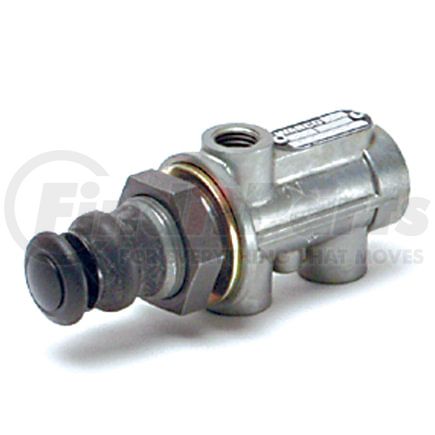

(888) 312-8812 Login SignupWABCO 4630131160 Air Brake Control Valve - Three Way Valve
MSRP: $569.63
$43699
Save $132.64
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
WABCO 4630131160 Part Description
WABCO 4630131160 Specifications
Product Attributes
| Size | 102 x 47 x 38 |
| Max. operating pressure | 145.0 psi |
| Type | 3/2 |
| Nominal Diameter | 4.0 mm |
| Handle Length | 46.9 mm |
| Stroke | 5.7 mm |
| Exhaust | M12 x 1.5 |
| Port thread 2 | M12 x 1.5 |
| Weight | 0.50706 |
| Temperature Range | -40°C to +80°C |
| Calculated Volume (dm³) | 0.18217 |
| Port thread 1 | M12 x 1.5 |
| Actuation | Push |
| Actuating Range | 5.7 mm |
| Mounting | M26 x 1.5 |
| Port thread 3 | M12 x 1.5 |
WABCO 4630131160 Cross References
| Brand | Part Number |
|---|---|
| ALEXANDER DENNIS | AB4630131160 |
| DAF | 0639394, 639394, 1761990 |
| DIMETAL | 4605193 |
| ERF | 236950 |
| EVOBUS | 8283732000, A0012609157 |
| FAUN | 99708458325 |
| FREIGHTLINER | 9628S4630131160 |
| FRUEHAUF | T64172M36A02 |
| GOLDHOFER | 160187 |
| IRISBUS | 4782794, U403003797 |
| IVECO | 30416, 02564591, 0478 2794, 04782794, 61232936, 04604222, 4604222, 4782794 |
| KENWORTH | S463-013-116-0 |
| KOMATSU HANOMAG | 20790140 |
| KÄSSBOHRER | GT070239, 82837320000 |
| LEYLAND-DAF | 639395, 249049 |
| LIEBHERR | 5029262 |
| LOHR | 4630131160, A05110520 |
| MACK | 6300-4630131160 |
| MAN | 81521856009, 81521856041, 88521636206, 81521859014, 81521856014, 81156106004, 4630131160, 236950 |
| MEILLER | 70275339003583 |
| MERCEDES-BENZ | 0007631252, 0004343001, 0004342901, 0004340501, 0012609157, 0004343101, 0004341101, 0004341001, 0004340801, 0004342101, 0004342301, 0004342401, A0012609157 |
| MERITOR | S4630131160 |
| NEOPLAN | 11017347, 110246400, 1102462544401 |
| PACCAR | 1505075 |
| PETERBILT | S463-013-116-0 |
| RENAULT | 5021170181, 5000786419 |
| RITEC | 49800037500 |
| SCANIA | 0340178, 340176, 340178, 1934904 |
| SCHMITZ | 82837320000 |
| SCHWARZMÜLLER | 13761 |
| TEREX-DEMAG | 96925200 |
| VDL BUS | 20190478 |
| VOLVO | WAB4630131160 |
| WABCO | S4630131160 |
WABCO 4630131160 Customer Reviews
No reviews yet
Be the first to review this product!
WABCO 4630131160 Manufacturer Information
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
