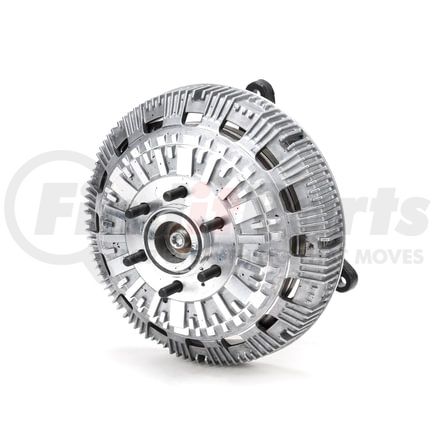

Horton 99A8177 - Engine Cooling Fan Clutch
$2,35249
MSRP: $2,913.78
Save: $561.29
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
HORTON part description
Product Description
Engine Cooling Fan Clutch
Application Summary
MACK
Features & Benefits
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance
Product Attributes
| BACK PULLEY DIAMETER | 5.25 IN |
| BELT CONFIGURATION | 12PK |
| Belt Groove Location | 1.48 IN |
| BOLT CIRCLE | 3.5 IN |
| Center of JB To Top Right Mounting Hole | 2.82 IN |
| Fan Blade Stud Length | 1.46 IN |
| FAN PILOT DIAMETER | 2.56 IN |
| Heavy Duty | TRUE |
| HORIZONTAL MOUNTING DISTANCE | 6.73 IN |
| Overall Length | 6.89 IN |
| Stud Thread Size | .375-24 UNF IN |
| VERTICAL MOUNTING DISTANCE | 7.21 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| OEM's Part Number | 98A8177 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
Part Interchanges
