HORTON part description


Product Description

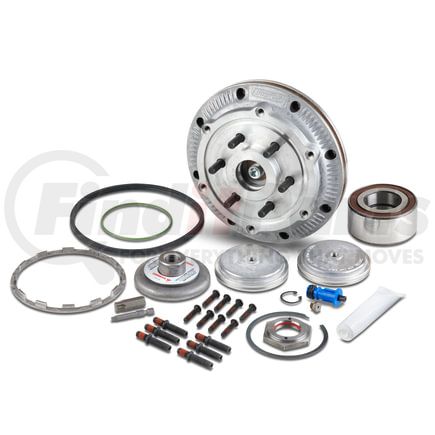

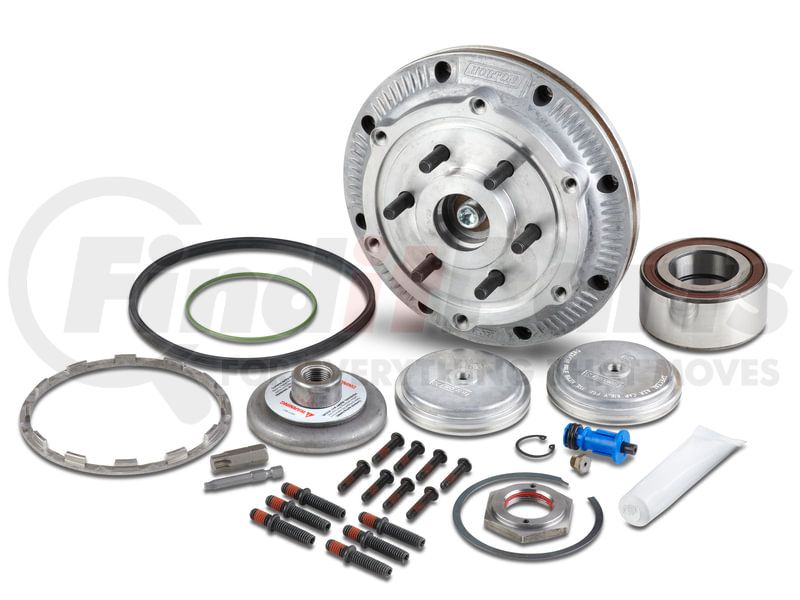

DM Advantage On/Off Fan Drive Repair Kit

Features & Benefits

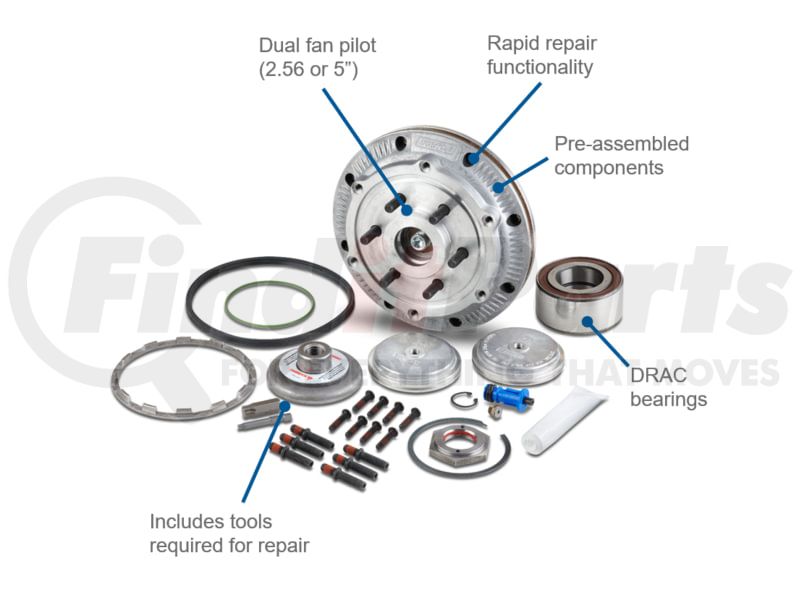

  • "Dual Pilot" kit can be used to repair 2.56" and 5" fan pilot applications. Reduce the number of SKUs for parts managers to stock.
  • Pre-assembled Components for a faster and easier repair.
  • Double-Row Angular Contact (DRAC) bearings provide the highest durability.
  • Tools required for repair are included.
  • Cover 95 percent of the DM Advantage on-highway fan clutch market with just four part numbers
  • Long-wearing friction liner for reduced maintenance
  • OEM-Approved for Reliable Operation
  • Increased Reliability in high-horsepower applications
  • DRAC Bearings have 14 rolling elements per row (competitor bearings have 9 rolling elements)
  • DRAC Bearings include a Dual-lip Viton Seal and heat-resistant grease.
  • DRAC Bearings provide the highest load capacity with a high contact angle to withstand more thrust load (Competitor bearings not pre-loaded)

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8483604040
Harmonized Tariff Code (HTS) 8483604040
NAFTA Preference Criterion Code B
Warranty Distance 300000
Warranty Distance UOM DH
Warranty Special 2500 Hours
Warranty Special UOM TX
Warranty Time 36
Warranty Time UOM MO
VMRS Code 042003022

Part Interchanges

Horton® is a world-renowned manufacturer of high-grade engine cooling solutions for the trucking industry for over 65 years. This company believes that improved airflow translates to better performance, reduced emissions, more significant fuel savings, and happy customers. Horton offers best-in-class fans, fan drives, and clutches for on-highway big rigs like heavy-, medium-, and light-duty trucks, R.V.s, buses, refuse vehicles, commercial vehicles, and other applications. This company also takes pride in its off-highway and heavy-duty products, including sweepers, agricultural tractors, mining trucks, aerial work platforms, excavators, generators, articulated vehicles, and industrial compressors. Made to operate in harsh environments, these Horton products withstand temperature extremes, dust, dirt, chemicals, as well as stop-and-go driving. For truck parts that consume less fuel, last longer, and run quieter, trust no other brand than Horton.
