(888) 312-8812 Login SignupBENDIX K078420 Traction Relay
$57799
Limited availability at this price!
In Stock
Get as soon as Friday, Sep 18
BENDIX K078420 Part Description
Manufacturer
Product Description
Traction Relay
Features & Benefits
- Traction-control function shares the same valve body used for service-brake relay duty
- Receives electronic traction commands from the vehicle ABS control system
- Brake-air delivery comes from the nearby reservoir during normal relay operation
- Avoids adding a separate pneumatic relay valve for traction intervention

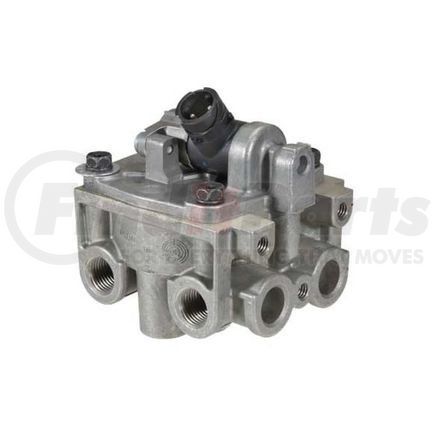

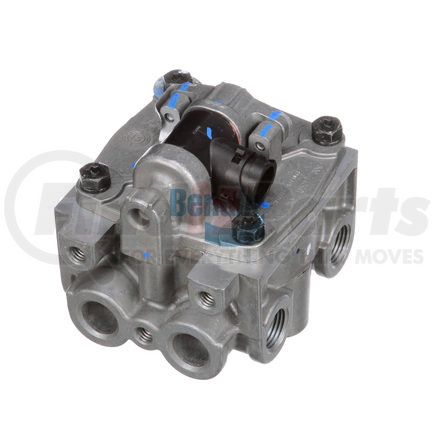

Bendix ATR-6 Traction Relay Valve
Manage normal relay braking and automatic traction-control commands through one valve with the Bendix ATR-6 Traction Relay Valve. The Bendix K078420 handles both jobs by letting the traction-control system influence axle air pressure without adding a separate relay valve. A 12V interface, two-way circular DIN connector, multiple delivery ports, and 5.5 PSI crack pressure define how it connects to the truck. With the electrical plug and air ports confirmed, one ATR-6 valve covers both relay braking and traction-control commands in the axle circuit.
| Product Type | Antilock Traction Relay Valve |
BENDIX K078420 Specifications
Product Attributes
| Adapter Cable Included | Not applicable to this part |
| Body Configuration | 1 SUP / 8 DEL (6H + 2V) |
| Cautionary Note(s) | Use caution when positioning solenoid connector. |
| Connector Type | 2-Way Circular DIN (ISO 15170-1 Twist-Lock) |
| Control Port | 1/4-18 NPT |
| Control Port Orientation (CW from Front Face) | 0Adeg |
| Crack Pressure | 5.5 PSI |
| Delivery Port 1 | 1/2-14 NPT |
| Delivery Port 2 | 1/2-14 NPT |
| Delivery Port 3 | 1/2-14 NPT |
| Delivery Port 4 | 1/2-14 NPT |
| Delivery Port 5 | Closed Port |
| Delivery Port 6 | Closed Port |
| Delivery Port 7 | 3/8-18 NPT |
| Delivery Port 8 | 3/8-18 NPT |
| Exhaust Port | Dust Shield |
| External Solenoid Supply Port | Not applicable to this part |
| Internal Supply Passage to Cover | Yes |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 185 AdegF (85 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | 3/8-16 UNC-2B (3x) |
| Mounting Bracket Direction | Not applicable to this part |
| Mounting Bracket Location | Not applicable to this part |
| Mounting Orientation (CW from Front Face) | 180Adeg |
| Supply Port 1 | 1/2-14 NPT |
| Supply Port 2 | Not applicable to this part |
| TMC Washer | RV055 |
| Voltage (Nominal) | 12 Volts |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078204214 |
| VMRS Code | 013011150 |
BENDIX K078420 Cross References
| Brand | Part Number |
|---|---|
| BWK078420 | |
| MACK | 745-K078420 |
| N/A | 102802N |
BENDIX K078420 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX K078420 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
BENDIX K078420 Questions & Answers
No questions yet
Be the first to ask a question about this product!
