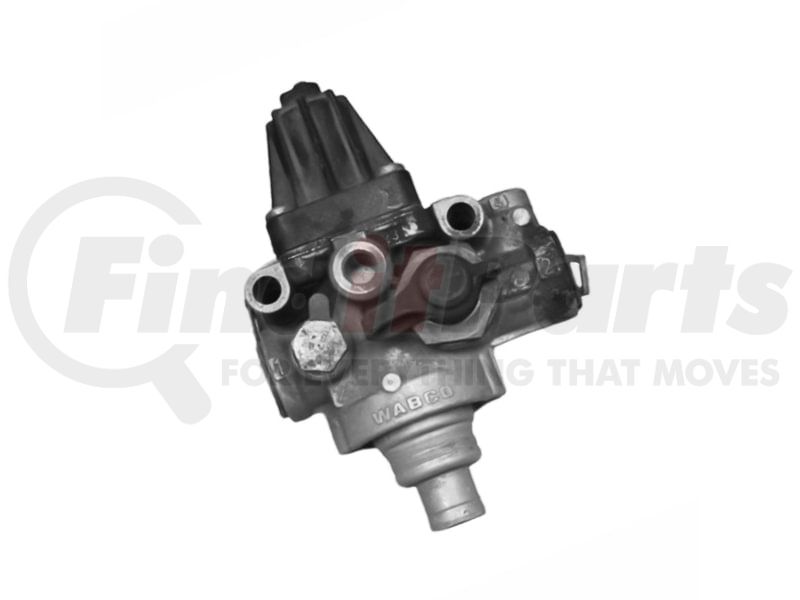

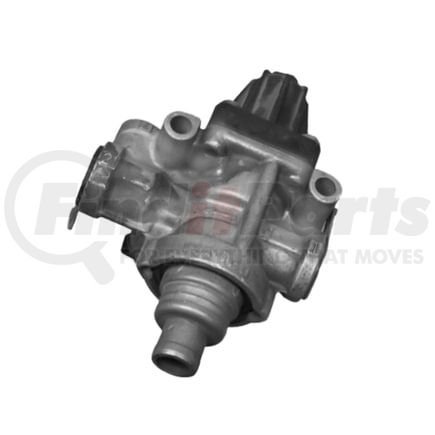

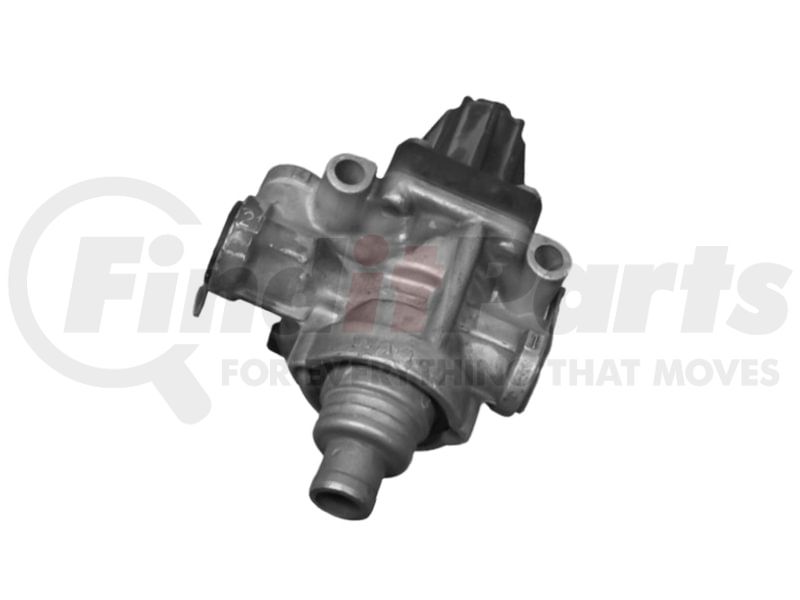

WABCO 9753035030 - Air Brake Unloader Valve - With One Way Valve and Tire Inflating Valve
$34949
MSRP: $593.23
Save: $243.74
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Unloader
Product Attributes
| Operational Range | 0.7+0.6 bar |
| Weight | 1.605 |
| Opening Pressure | 14 bar |
| Cut-Out Pressure | 10 bar |
| Size | 168 x 108 x 91 |
| Max. operating pressure | 362.6 psi |
| Port thread 22 | M12 x 1.5 |
| Temperature Range | -40°C to +80°C |
| Port thread 3 | Union Ø 0.79 in |
| Mounting | 2x Ø 8.8 mm |
| Port Thread 1-2 | M16 x 1.5 |
| Port threads | M22 x 1.5 |
| Calculated Volume (dm³) | 1.651 |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Version | With tire inflating valve |
| Type | With one way valve |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
