LUK LFW192 Part Description
Manufacturer
Product Description

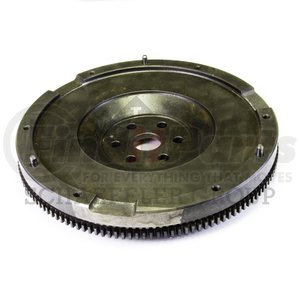

LuK Rigid Flywheel
Application Summary
Jeep CJ5 1982-1983 (L6, 4.2L), Jeep CJ7 1982-1986 (L6, 4.2L), Jeep Grand Wagoneer 1984-1986 (L6, 4.2L), Jeep Scrambler 1982-1985 (L6, 4.2L), Jeep Wrangler 1987 (L6, 4.2L)
Features & Benefits
- Every component, including the ring gear, is engineered and manufactured to Original Equipment (OE) specifications.
- LuK flywheels are always new and never remanufactured.
- LuK solid flywheels are dynamically balanced to eliminate vibration and increase clutch performance.
- LuK's engineering and quality materials contribute to a longer service life for the flywheel and clutch system.
- Pairing your clutch set with a new LuK flywheel is a smart, cost-effective alternative to resurfacing.
FLYWHEEL
LUK LFW192 Specifications
Product Attributes
| Ring Gear Major Dia. | 13.819 inch |
| Ring Gear Major Dia. | 351 mm |
| Flywheel Thickness [mm] | 1.500 inch |
| Flywheel Thickness [mm] | 38.1 mm |
| Has Dowel Pins | without Dowel Pins |
| I.D. for Pilot | 2.689 inch |
| I.D. for Pilot | 68.3 mm |
| Bolt Hole Pattern | 2 |
| Bolt hole PCD clutch pres.plte | 11.614 inch |
| Bolt hole PCD clutch pres.plte | 295 mm |
| Ring Gear Chamfer Side | Not available |
| Crank Hole Dia. | .551 inch |
| Crank Hole Dia. | 14 mm |
| Ring Gear Thickness | .443 inch |
| Ring Gear Thickness | 11.25 mm |
| Flywheel Friction Surface Inner diameter | 5.591 inch |
| Flywheel Friction Surface Inner diameter | 142 mm |
| Number of teeth, starter ring gear | 164 |
| Number of mounting bores | 2 |
| Overall Casting O.D. | 13.031 inch |
| Overall Casting O.D. | 331 mm |
| Ring Gear Chamfer Position @ 6:00 O´clock | Not available |
| Flange Thickness | .439 inch |
| Flange Thickness | 11.15 MM |
| Crank To Friction Surface | 1.201 inch |
| Crank To Friction Surface | 30.5 mm |
| Flywheel friction surface outer diameter | 10.945 inch |
| Flywheel friction surface outer diameter | 278 mm |
| Bolt hole PCD crankshaft | 3.740 inch |
| Bolt hole PCD crankshaft | 95 mm |
| Ring Gear Mounting O.D. | 12.913 inch |
| Ring Gear Mounting O.D. | 328 mm |
| Tooth Quantity | 164 |
| Outside Diameter | 13.819 inch |
| Outside Diameter | 351 MM |
| Flywheel to Crankshaft Bolt Quantity | 2 |
| 10643 | .551 inch |
| 10643 | 14 MM |
Additional Information
| Remanufactured Part | N |
| Warranty Special | 12 Months or 12,000 miles, Whichever comes first |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8483508080 |
| Stock Status | S |
| UPC | 00670774100598 |
