(888) 312-8812 Login SignupDELPHI CV10096 Fuel Injection Idle Air Control Valve
MSRP: $87.60
$6499
Save $22.61
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
DELPHI CV10096 Part Description
Manufacturer
Product Description

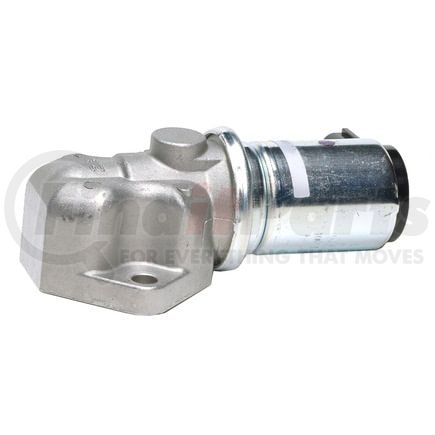

Fuel Injection Idle Air Control Valve
Features & Benefits
- Delphi's 100% OE replacement idle air control valves allow for accurate, stable, and precise air flow during the idle phase
- Provides superior fit resulting in an easier installation
- Maximizes fuel and engine efficiency
- Manufactured and engineered with premium quality and stringent standards eliminating potential for malfunctions
DELPHI CV10096 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Injection Idle Air Control Valve, Gasket, Instruction Sheet |
| Length | 4.7 IN |
| Length | 118.6 MM |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Metal |
| Terminal Quantity | 2 |
| Terminal Gender | Male |
| Housing Color | Silver |
| Installation Instructions Included | Yes |
| Mounting Hole Diameter | 0.27 IN |
| Mounting Hole Diameter | 7.0 MM |
| Port Quantity | 2 |
| Air Intake Port Maximum Diameter | 32 MM |
| Air Intake Port Maximum Diameter | 1.3 IN |
| Mounting Hardware Included | No |
| Connector Shape | Rectangle |
| Throttle Position Sensor Included | No |
| Voltage | 12.0 2H |
| Grade Type | Standard Replacement |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| Harmonized Tariff Code (HTS) | 8481809020 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604127407 |
| VMRS Code | 044003287 |
| UNSPSC | 25172405 |
DELPHI CV10096 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2173214 |
| BLD | 3394 |
| BorgWarner | 50549 |
| Ford | 1L8Z 9F715-AA |
| General Motors | 19236153 |
| Hitachi Automotive | ABV0027, AESP109-38A |
| Kem | 150-299 |
| Motorcraft | CX-1911 |
| N/A | AESP10938A, 150299, 1L8Z9F715AA, CX1911 |
| Niehoff | 50549 |
| STANDARD IGNITION | AC414 |
| Standard Motor Products | AC414 |
| Wells | AC114, TV2002 |
DELPHI CV10096 Fits Vehicles
- Ford Escape (2003-2004)
