DELPHI HP10010 Part Description
Manufacturer
Product Description

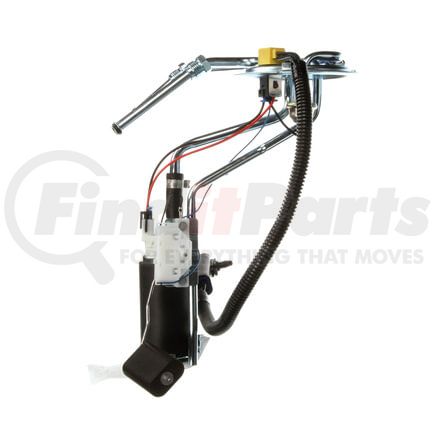

Fuel Pump Hanger Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Lower failure rates due to its innovative design and durability
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
DELPHI HP10010 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Hanger Assembly w/Float Arm, Seal, Lock Ring, (2) O-rings, Instruction Sheet |
| System Pressure | 51 psi |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13.5 2H |
| Fuel Type | Gas |
| Maximum Pressure | 65.0 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 3.0 82 |
| Resistance Ohms Full | 87.0 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 26.0 GPH |
| Material | Metal |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Shape | Rectangle |
| Lock Ring Included | Yes |
| Connector Gender | Male |
| Inlet Quantity | 1 |
| Fuel Pump Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 51 PS |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Country of Origin (Primary) | CN |
| Warranty Special UOM | LF |
| UPC | 00689604187319 |
| VMRS Code | 044003257 |
| UNSPSC | 40151532 |
DELPHI HP10010 Cross References
DELPHI HP10010 Fits Vehicles
- Pontiac Grand Prix (1988-1991)
- Oldsmobile Cutlass Supreme (1988-1991)
- Chevrolet Lumina (1990-1991)
- Buick Regal (1988-1991)
