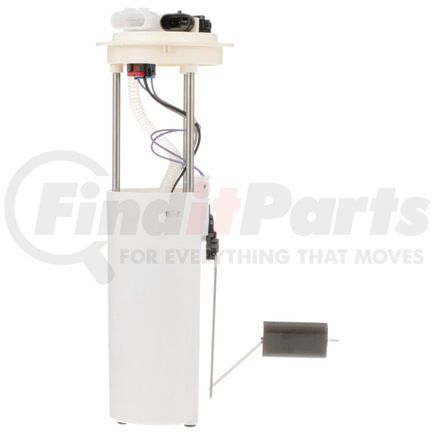

Name: Delphi FG0162 Fuel Pump Module Assembly
SKU: fg0162
Price: 249.99 USD
Availability: InStock

Fuel Pump Module Assembly

Item Grade	Standard Replacement
Fuel Level Sender Assembly Included	Yes
Vapor Pressure Sensor	Yes
System Pressure	52 psi
Package Contents	Fuel Pump Module Assembly w/Float Arm, Seals, Splices, Wire Harness, Instruction Sheet
Outlet Outside Diameter	0.375 IN
Voltage	12 2H
Fuel Type	Gas
Regulator Included	No
Maximum Pressure	109 PS
Terminal Type	Blade
Gasket Or Seal Included	Yes
Terminal Quantity	4
Lock Ring Included	No
Terminal Gender	Male
Strainer Included	Yes
Inlet Type	Strainer
Outlet Type	Quick Connect
Outlet Quantity	2
In Tank or External	In Tank
Resistance Ohms Empty	40 82
Resistance Ohms Full	250 82
Internal Or External Strainer	External
Pump Type	Electric
Average Current Draw	7 68
Average Flow Rating	29 GPH
Fuel Sending Unit Included	Yes
Negative Ground	No
Mounting Hardware Included	No
Wire Quantity	4
Grade Type	Premium
Connector Quantity	1
Connector Shape	Oval
Housing Material	Plastic
Installation Warnings	No
Connector Gender	Female
Fuel Filter Included	No
Gasket Or Seal Material	Nitrile Rubber
Minimum Pressure	52 PS
Wire Harness Included	Yes
Pump Design	Turbine
Fuel Tank Pressure Sensor Included	Yes

Harmonized Tariff Code (HTS)	8413309030
Country of Origin (Primary)	TH
Harmonized Tariff Code (Schedule B)	8413309000
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604060995
VMRS Code	044003258
UNSPSC	25172409
