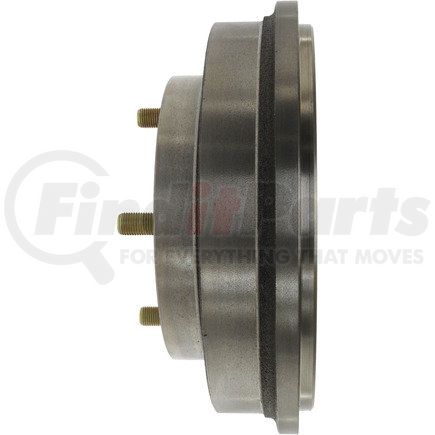

(888) 312-8812 Login SignupCENTRIC 123.42004 C-Tek Standard Brake Drum
Tap to view 4 more
$54.75
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.42004 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.42004 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.591 |
| Weight [cntrc] Lbs | 14.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Stud Thread Pitch [cntrc] Mm | 1.25 |
| Hub Hole / Register [cntrc] Mm | 55.700 |
| Hub Hole / Register [cntrc] In | 2.193 |
| Height [cntrc] Mm | 86.500 |
| Height [cntrc] In | 3.406 |
| Friction Surface Width [cntrc] Mm | 43.000 |
| Friction Surface Width [cntrc] In | 1.693 |
| Product Grade [cntrc] | Standard |
| Stud Thread Size | 12 MM |
| Maximum Brake Diameter (Discard) | 204.500 MM |
| Maximum Brake Diameter (Discard) | 8.051 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 239.000 MM |
| Outside Diameter | 9.409 IN |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 203.200 MM |
| Nominal Drum Diameter | 8.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890914617 |
CENTRIC 123.42004 Cross References
CENTRIC 123.42004 Fits Vehicles
- Nissan Stanza (1982-1986)
