Centric 406.40029 - Centric Premium Hub and Bearing Assembly; With ABS
$13149
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

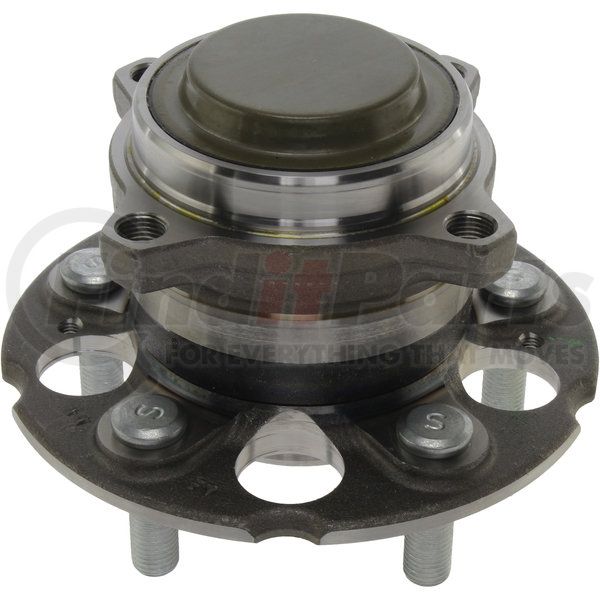

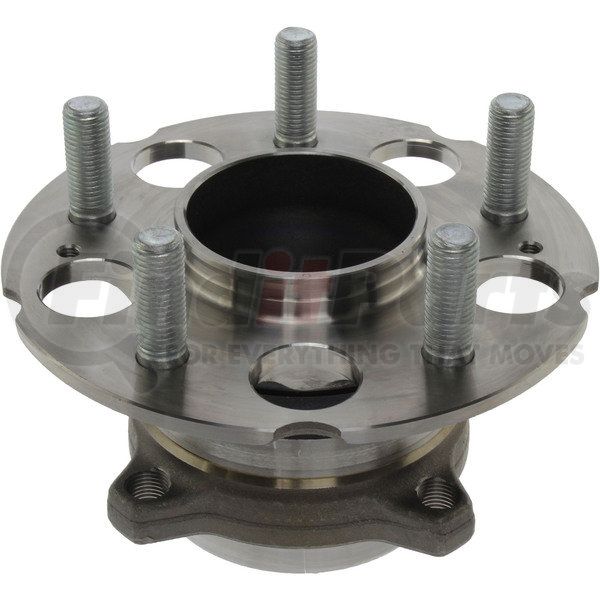

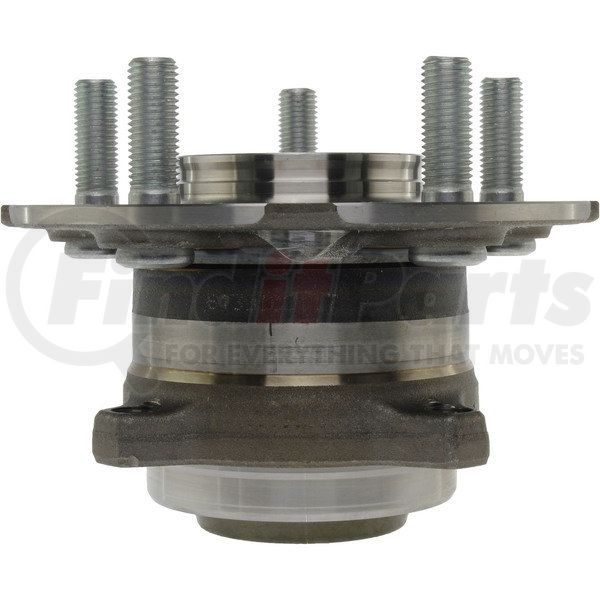

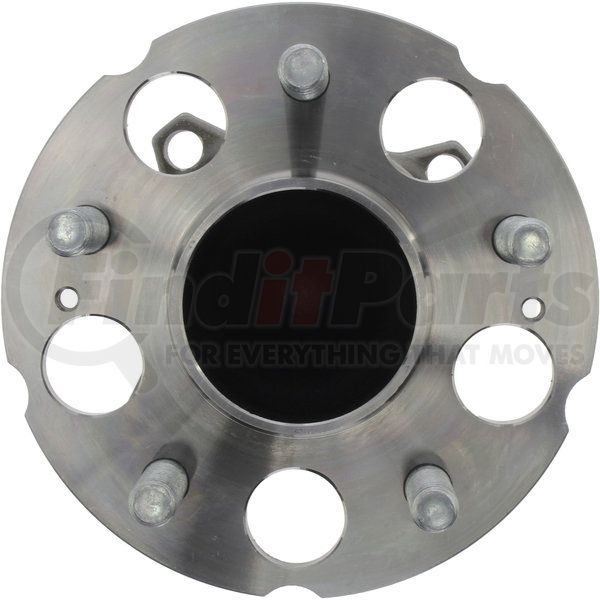

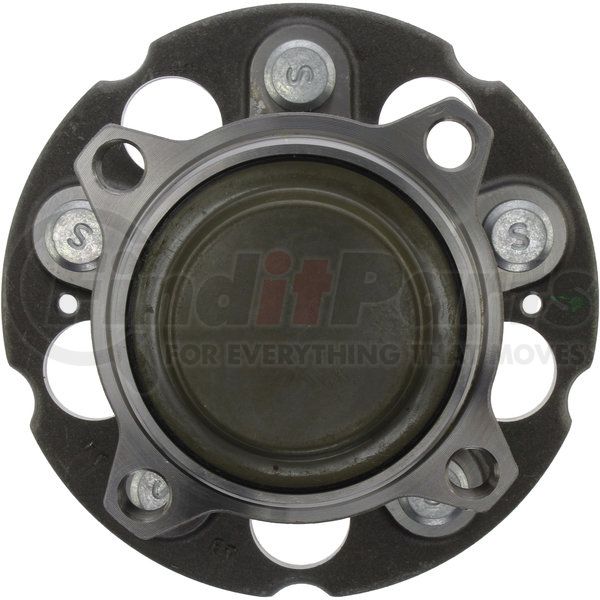

Centric Premium Hub and Bearing Assembly; With ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Mounting Hole Qty [cntrc] | 4 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Off-set [cntrc] Mm | 2.413 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Inner Mount Pilot [cntrc] In | 3.220 |
| Product Grade [cntrc] | Premium |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Off-set [cntrc] In | 61.290 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Inner Mount Pilot [cntrc] Mm | 81.790 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Notes [cntrc] | Flange Holes 5 x 1.00" Retaining HoleS - 2x M6-1.0; Inner Hub Pilot Has Rubber "O" Ring, |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 64.010 MM |
| Wheel Pilot Diameter | 2.520 IN |
| Brake Pilot Diameter | 64.010 MM |
| Brake Pilot Diameter | 2.520 IN |
| Wheel Stud Quantity | 4 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.974 IN |
| Flange Diameter | 151.740 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| UPC | 805890885467 |
Part Interchanges
Fits Vehicles
- Acura RDX (2013-2018)
- Honda CR-V (2012-2016)
