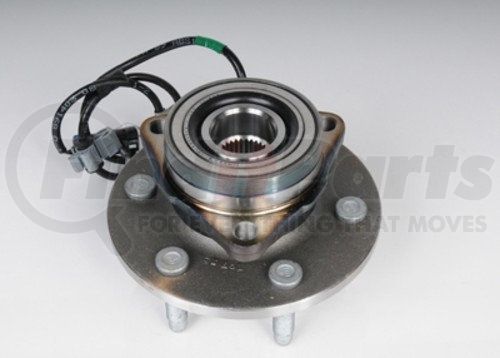

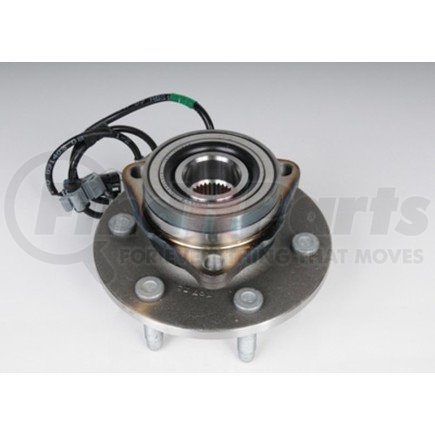

(888) 312-8812 Login SignupACDELCO FW170 Front Driver Side Wheel Hub and Bearing Assembly
$538.15
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ACDELCO FW170 Part Description
ACDELCO FW170 Specifications
Product Attributes
| Wheel Stud Size | 0.551 IN |
| Flange Bolt Hole Diameter | 0.551 IN |
| Connector Quantity | 1 |
| Flange Offset | 1.953 IN |
| Connector Terminal Quantity | 2 |
| Flange Bolt Hole Quantity | 3 |
| Brake Pilot Diameter | 3.085 IN |
| Wheel Pilot Diameter | 3.0629 IN |
| Hub Pilot Diameter | 3.909 IN |
| Bolt Circle Diameter | 5.5 IN |
| Wheel Stud Quantity | 6 |
| Height (in) | 6.75 in |
| Flange Diameter | 7.087 IN |
| Width (in) | 8.62 in |
| Length (In) | 9.12 IN |
| Weight (lb) | 12 lb |
| Flange Bolt Hole Diameter | 14 MM |
| Wheel Stud Size | 14 MM |
| Spline Quantity | 33 |
| Flange Offset | 49.6 MM |
| Wheel Pilot Diameter | 77.8 MM |
| Brake Pilot Diameter | 78.35 MM |
| Hub Pilot Diameter | 99.3 MM |
| Bolt Circle Diameter | 139.7 MM |
| Flange Diameter | 180 MM |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 5 | ABS, Traction control, Stability control light. |
| Product Description | ACDelco GM Original Equipment Wheel Hubs provide the attaching point for the brake rotor and road wheel, and are GM-recommended replacements for your vehicle's original components. These wheel hubs are supported and allowed to rotate by the wheel bearing. These original equipment wheel hubs have been manufactured to fit your GM vehicle, providing the same performance, durability, and service life you expect from General Motors. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Good Maintenance Practices - Section 1 - Bullet 2 | Do not operate vehicle with a worn wheel hub assembly |
| Connector Gender | Female |
| Good Maintenance Practices - Section 1 - Bullet 3 | For bearings that are bolted onto knuckles, apply GM-recommended grease between bearing knuckle pilot and knuckle bore for easy of future removal. Take special care to avoid getting grease in the threads. |
| Features & Benefits - Bullet 3 | GM OE bearing designs are dimensionally optimized to work with their mating parts |
| Features & Benefits - Bullet 4 | GM-recommended replacement part for your GM vehicle's original factory component |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 1 | Grinding when the vehicle is in motion |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 3 | Humming, rumbling, squealing, roaring or growling |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 2 | Knocking or clunking |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Looseness |
| Terminal Gender | Male |
| Features & Benefits - Bullet 6 | Manufactured to GM OE specification for fit, form, and function |
| Flange Bolts Included | No |
| Programming Required | No |
| Features & Benefits - Bullet 5 | Offering the quality, reliability, and durability of GM OE |
| Features & Benefits - Bullet 1 | Provides the attaching point for the brake rotor and road wheel |
| Anti Lock Braking System Type | Sensor |
| Signs of Wear & Troubleshooting - Section 1 - Header | Signs of wear for wheel hubs include but are not limited to: |
| Features & Benefits - Bullet 2 | Supported and allowed to rotate by the wheel bearing |
| Good Maintenance Practices - Section 1 - Bullet 1 | Tighten the wheel hub axle nut to recommended specs, overtightening may cause premature wear to the hub assembly |
| Flange Shape | Triangular |
| Package Includes | Wheel Speed Sensor and Wheel Studs |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 6 | Wheel vibration and/or wobble |
| Meets or Exceeds Original Equipment Manufacture Specifications | Yes |
| Wheel Studs Included | Yes |
| Anti Lock Braking System | Yes |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|36 Months/60,000 Kilometers Limited Warranty (Parts Only). Please see ACDelcocanada.com for more details |
| Harmonized Tariff Code (HTS) | 8708998115 |
| Country of Origin (Primary) | US |
| Warranty Special UOM | TX |
| UPC | 00021625872612 |
ACDELCO FW170 Cross References
ACDELCO FW170 Fits Vehicles
- GMC Safari (2003-2005)
- Chevrolet Astro (2003-2005)
ACDELCO FW170 Customer Reviews
No reviews yet
Be the first to review this product!
ACDELCO FW170 Manufacturer Information
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
