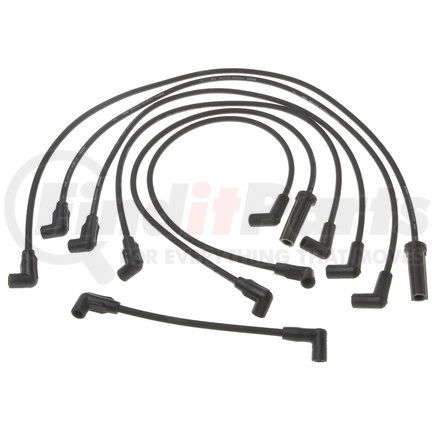

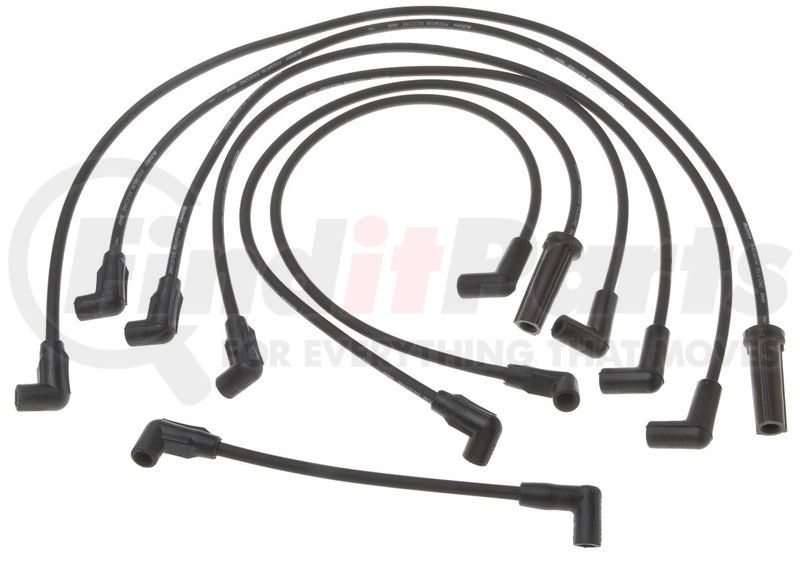

(888) 312-8812 Login SignupACDELCO 9616W Spark Plug Wire Set
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ACDELCO 9616W Part Description
ACDELCO 9616W Specifications
Product Attributes
| Spark Plug End Boot Degree | 90 DD |
| Weight (lb) | 1.21 lb |
| Spark Plug End Boot Quantity Straight | 2 |
| Height (in) | 3.5 in |
| Spark Plug End Boot Quantity Angled | 4 |
| Width (in) | 5.7 in |
| Outside Diameter | 8 MM |
| Insulation Outside Diameter | 8 MM |
| Length (In) | 35.9 IN |
| Length (mm) | 911.4 mm |
| Distributor Coil End Boot Degree | 90 DD |
| Product Description | ACDelco Professional Spark Plug Wire Sets consist of a set of wires, encased in an insulating material, connectors, and insulating boots, and are a high quality replacement for many vehicles on the road today. The wires transfer high voltage pulses between the voltage source, the distributor, and the spark plugs. These premium aftermarket replacement components are manufactured to meet your expectations for fit, form, and function. ⚠<b> WARNING:</b> Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Good Maintenance Practices - Section 1 - Bullet 1 | Before purchasing and installing a spark plug wire, make sure they are the correct size and fit for your vehicle. |
| Insulation Color | Black |
| Coil End Boot Color | Black |
| Spark Plug End Boot Color | Brown |
| Core Material | Fiberglass Reinforced Latex Graphite |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 4 | Illuminated Check Engine light |
| Good Maintenance Practices - Section 1 - Bullet 3 | Keep plug wires free from contact with other engine components. |
| Features & Benefits - Bullet 3 | Manufactured to meet expectations for fit, form, and function |
| Programming Required | No |
| Wire Separators Included | No |
| Features & Benefits - Bullet 1 | Professional, premium aftermarket replacement |
| Features & Benefits - Bullet 2 | Provides the performance and dependability you expect from ACDelco |
| Good Maintenance Practices - Section 1 - Bullet 5 | Regularly inspect your spark plug wires for signs of damage or wear, and replace them if signs of damage are found. |
| Good Maintenance Practices - Section 1 - Bullet 4 | Reinstall plug wires in the original position, using correct routing and utilizing appropriate hold downs. |
| Good Maintenance Practices - Section 1 - Bullet 2 | Remove the wire by holding the boot, not the wire. |
| FAQ - Question 1 | Should grease be installed into a spark plug boot? |
| Insulation Outside Diameter | 203.2 IN |
| Distributor Coil End Boot Type | Silicone Angled |
| Spark Plug End Terminal Type | Snap Lock |
| Distributor Coil End Terminal Type | Snap Lock |
| Boot Type | Solid |
| Universal Or Specific Fit | Specific |
| Noise Suppression Type | Yes |
| FAQ - Answer 1 | Yes. The use of dielectric grease in the boot helps prevent spark flashover and allows easier boot removal in the future. |
| Insulation Material | Silicone Rubber |
| Spark Plug Boot Material | Silicone Rubber |
| 8979 | 10 IN |
| Wire 1 Length | 254 MM |
| 8980 | 26 IN |
| Wire 2 Length | 660.4 MM |
| 8981 | 26 IN |
| Wire 3 Length | 660.4 MM |
| 8982 | 28 IN |
| Wire 4 Length | 711.2 MM |
| 8983 | 32 IN |
| Wire 5 Length | 812.8 MM |
| 8984 | 36 IN |
| Wire 6 Length | 914.4 MM |
Additional Information
| Warranty Special | 24 Months/Unlimited Miles Limited Warranty (Parts Only). Please see ACDelco.com for more details|No Warranty |
| Harmonized Tariff Code (HTS) | 8544602000 |
| Country of Origin (Primary) | US |
| Warranty Special UOM | TX |
| UPC | 00707773322628 |
ACDELCO 9616W Fits Vehicles
- GMC Safari (1986-1991)
- GMC P3500 (1990-1991)
- GMC G3500 (1987-1991)
- GMC G2500 (1987-1991)
- GMC G1500 (1987-1991)
- Chevrolet P30 (1990-1991)
- Chevrolet G30 (1987-1991)
- Chevrolet G20 (1987-1991)
- Chevrolet G10 (1987-1991)
- Chevrolet Astro (1986-1991)
ACDELCO 9616W Customer Reviews
No reviews yet
Be the first to review this product!
ACDELCO 9616W Manufacturer Information
A true OEM auto parts brand for GM and non-GM vehicles, ACDelco® offers a wide portfolio of parts designed to keep vehicles on the road longer. These parts work precisely and fit perfectly because they are designed, engineered, tested, and backed by General Motors. But ACDelco also carries aftermarket components that go through the same 18-step quality approval process as the OE parts. Whether customers choose OE or aftermarket, they’d get the same reliable performance, precise engineering, and superior reliability for years to come. ACDelco’s expansive product portfolio includes alternators, filters, batteries, brakes, belts and hoses, oil and fluids, and suspension parts. These products are made to meet GM and non-GM vehicles’ ever-evolving powertrain, collision, maintenance, and repair needs.
ACDELCO 9616W Questions & Answers
No questions yet
Be the first to ask a question about this product!
