(888) 312-8812 Login SignupNEWSTAR S-13394 Air Brake Compressor
Tap to view 1 more
$1,260.39
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NEWSTAR S-13394 Part Description
Manufacturer
Features & Benefits
- Made of premium-grade steel and other materials for longer life and better wear resistance
- Components are 100% interchangeable with their OEM counterparts
- Rigorous quality control and performance tests to ensure dependable performance even in demanding road conditions
- Manufactured, assembled, and packaged in-house at ISO-certified facilities

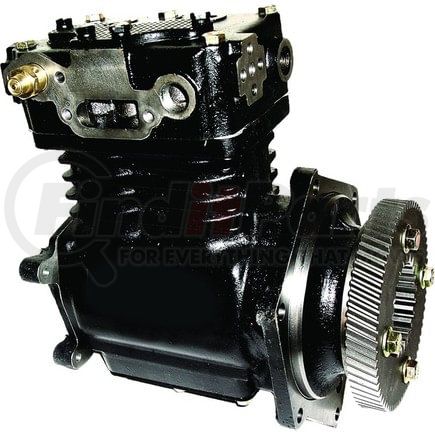

Newstar Air Brake Compressor
The Newstar air brake compressor provides and maintains pressurized air for heavy duty air brakes and auxiliary systems under various operating conditions. Each compressor is guaranteed to be brand new and meets the highest standards of quality.
NEWSTAR S-13394 Specifications
Product Attributes
| Air Inlet | Top |
| Air Outlet | Left |
| Approx. HP Req. at 1250 RPM at 120 PSIG | 3.2 HP |
| Condition | New Outright, No Core Charges |
| Cooling | Water/Air |
| Cylinder Count | 2 Cylinders |
| Displacement at 1250 RPM | 16.5 CFM |
| Includes | Includes 69 Tooth Drive Gear, Includes Safety Valve |
| Max Inlet Air Temp | 250ºF |
| Max RPM | 2400 |
| Notes | Upgraded Version of TF550, Components are 100% Interchangeable with OEM |
| Replacement For | Bendix TF750 |
| Thru-Drive Capacity | 100Ft/Lb |
| Coolant Port Thread Size | 1/2"-14 NPT |
| Coolant Type | Water |
| Core Free | Y |
| Cylinder Quantity | 2 |
| Cubic Feet Per Minute Rating | 13.2 |
| Discharge Port Inside Diameter | 1/2"-14 NPT |
| Governor Port | 1/8"-27 NPT |
| Engine Manufacturer Code | Detroit Diesel |
| Inlet Size | 1/2"-14 NPT |
| Inlet Location | Top/Left |
| Mounting Type | Flange |
| Outlet Location | Left |
| Stroke Length | 1.5 |
| Unloader Port/Type | 1/8"-27 NPT |
| Piston Bore Diameter | 2.75 |
NEWSTAR S-13394 Cross References
| Brand | Part Number |
|---|---|
| 065538, 109425, 109426, 109427, 109430, 23509780, 23516841, 23522123, 5001614, 5001615, 5001616, 5001617, 5004083, 5004187, 5004187X, 5004188, 5004188X, 5005934, 5008610, 65538, 800394, BW 065538, BW 109426, BW 109430, BW 5001616, BW 5001617, BW 5004083, BW 5005934, BW 800394, DDE R23522123, R23509780, R23516840, R23516841, R23522123, R3516840 | |
| Bendix | 109425, 109426, 109429, 109430 |
| FREIGHTLINER | BW 5005934, BW 800394 |
| GM & DDA | 23516840, 23516841, 23522122, 23522123, R23516840, R23516841, R23522122, R23522123, R3516840, R3516841 |
NEWSTAR S-13394 Customer Reviews
No reviews yet
Be the first to review this product!
NEWSTAR S-13394 Manufacturer Information
Based in Schaumburg, IL, NEWSTAR® is an aftermarket parts manufacturer specializing in trailer suspension, engine, and drivetrain parts and components for medium and heavy duty trucks. The company supplies OEM manufacturers, truck dealerships, and warehouse distributors across the U.S. and Canada. NEWSTAR products are made of high-grade stamped steel, natural rubber, and other materials and hand-welded, resulting in an unprecedented level of quality down to the smallest detail. All products are also built and assembled using cutting-edge tools and undergo intense performance testing in an in-house quality control laboratory to ensure compliance with industry standards.
