Name: Monroe 911193 Reflex Suspension Shock Absorber
SKU: 911193
Price: 50.99 USD
Availability: InStock

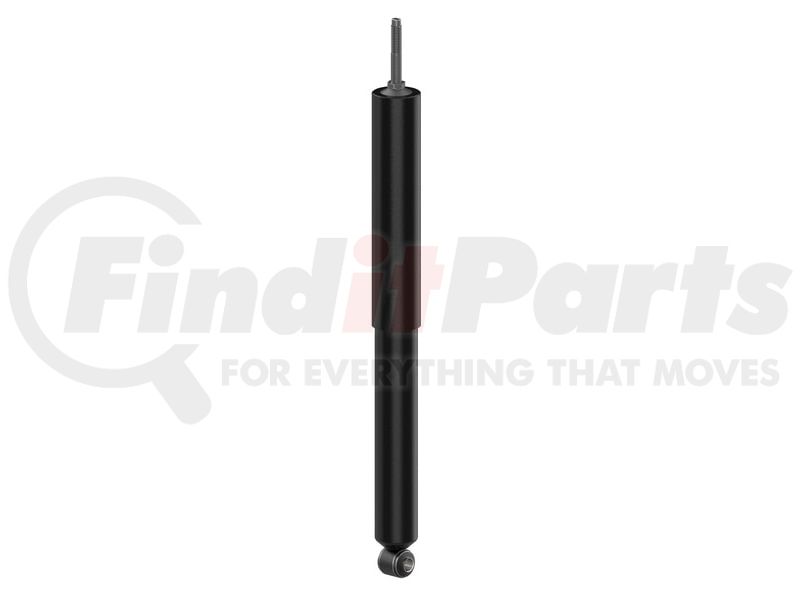

Reflex Suspension Shock Absorber

IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Lower Mount Code	LS47
Upper Mount Code	S5
Dust Shield Included	Yes
Includes Bump Stop	No
Internal Rebound Bumper	Yes
Hydraulic Lockout	No
Part Description	Shock Absorber
Compressed Length	14.25 IN
Dust Shield Material	Metal
Extended Length	22.25 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Parts Pack(s)	P01167
Travel Length	8 in
Upper Mount Type	Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Compressed Length	362 MM
Extended Length	565.2 MM
Travel Length	203.2 MM
Shock Absorber Rod End Measuring Point	Base of Stem
Shock Absorber Body End Measuring Point	Center of Loop

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598841179
VMRS Code	016008003
UNSPSC	25172011
