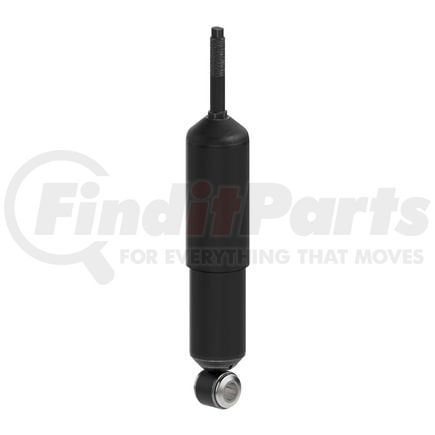

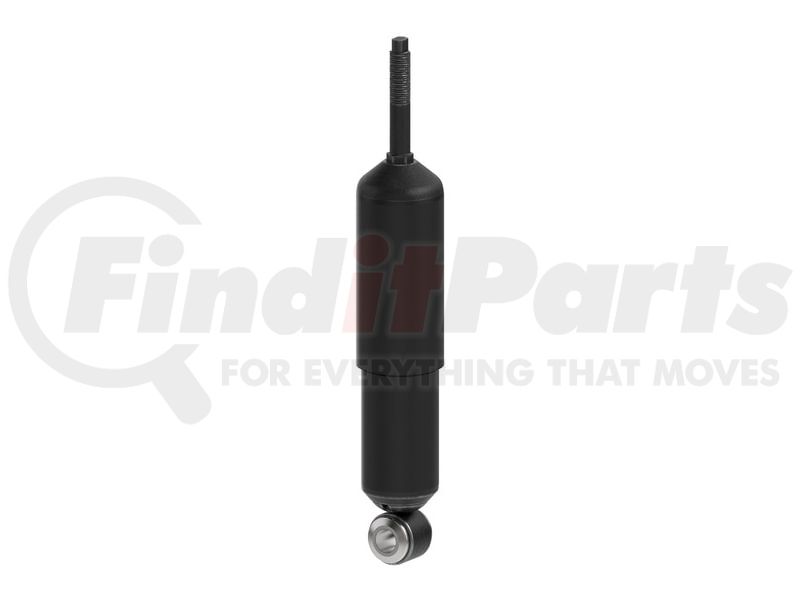

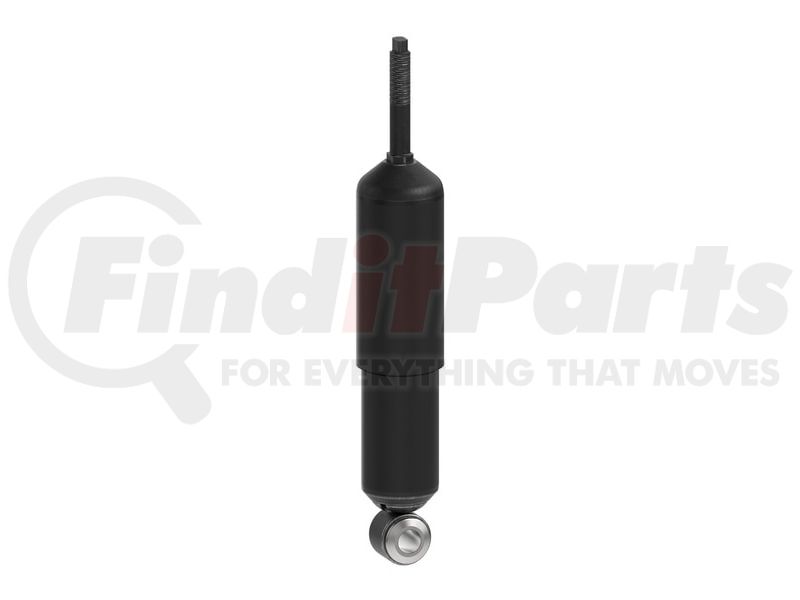

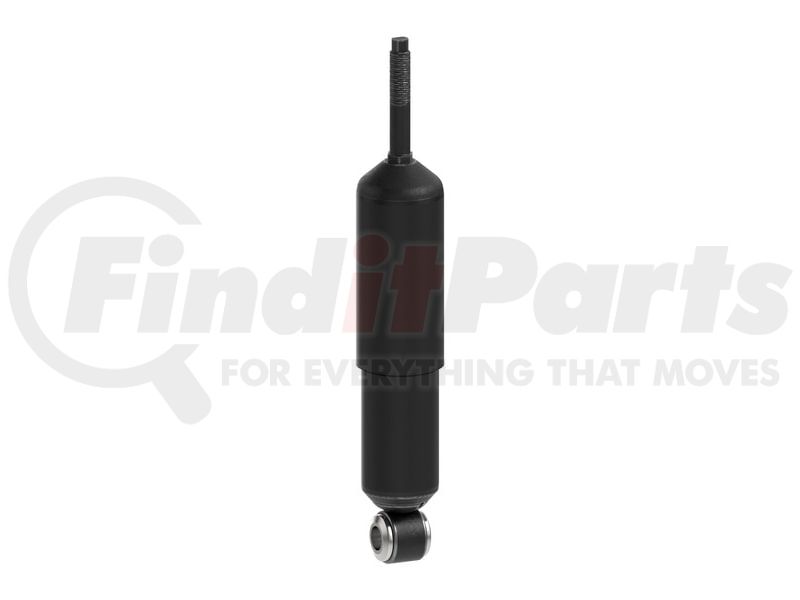

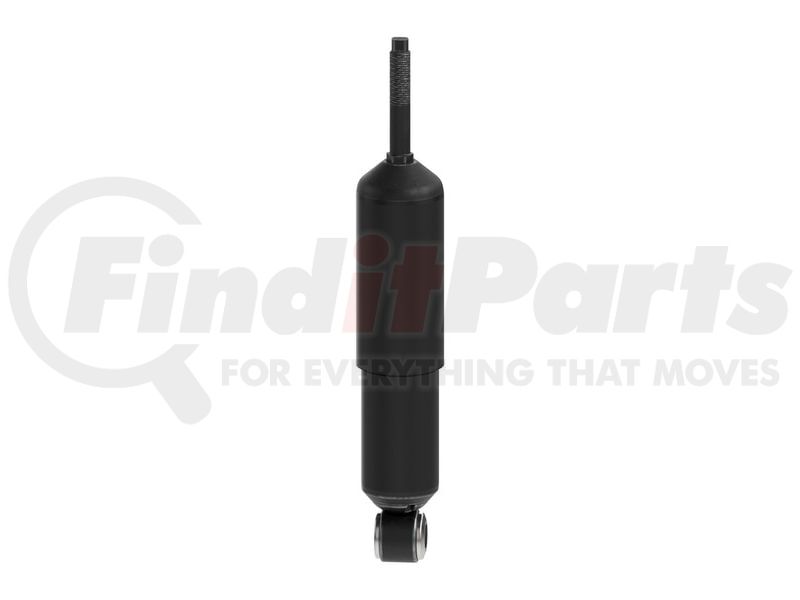

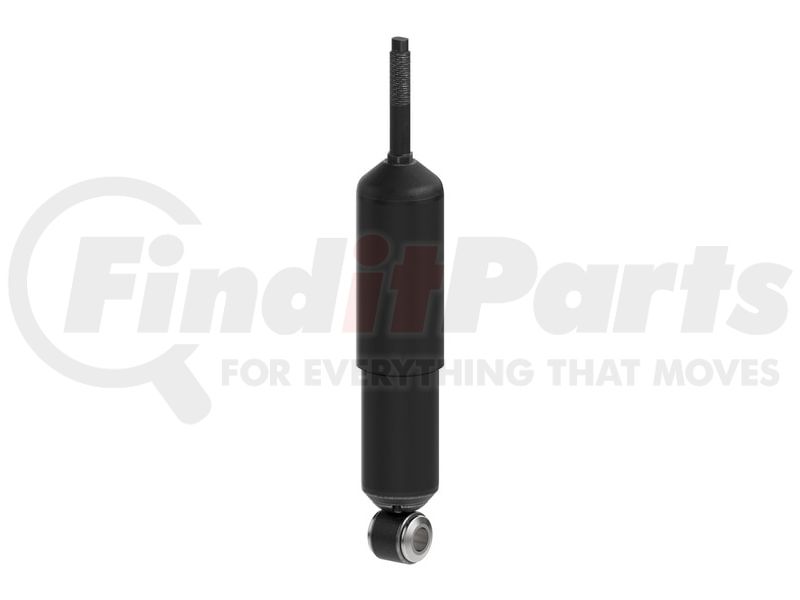

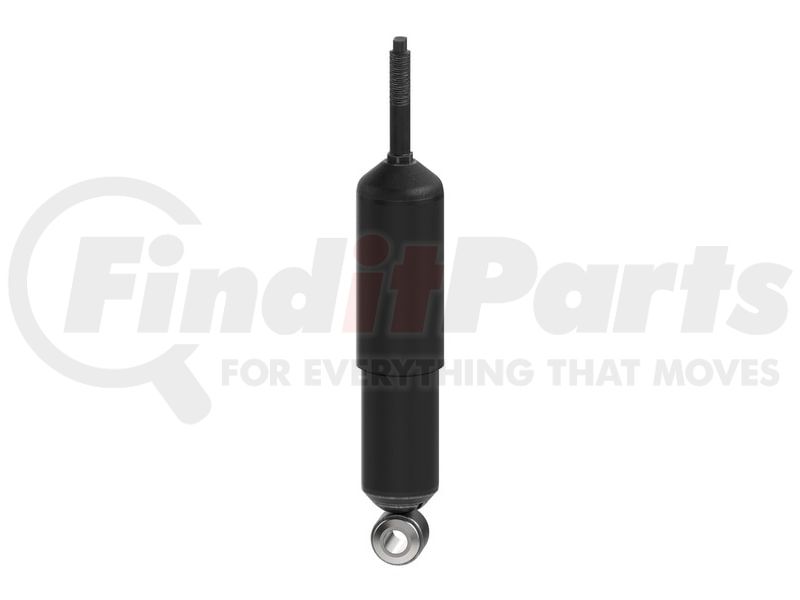

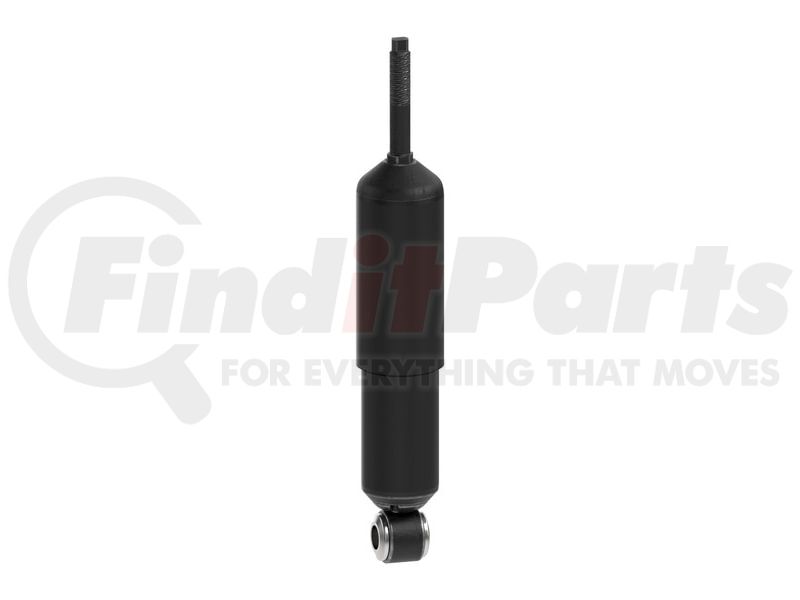

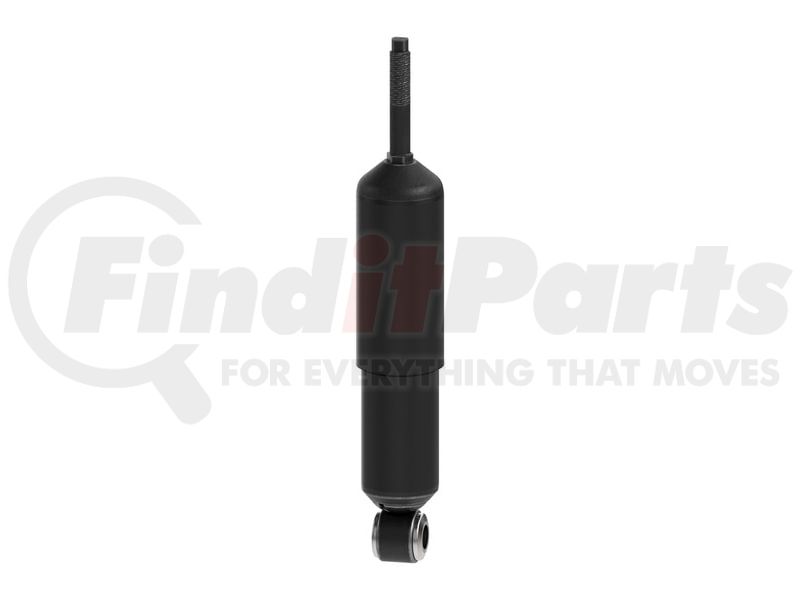

(888) 312-8812 Login SignupMONROE 911173 OESpectrum Front Suspension Shock Absorber
Tap to view 5 more
MSRP: $118.39
$5299
Save $65.40
Limited availability at this price!
In Stock
Get it by Wednesday, Jul 8
MONROE 911173 Part Description
Manufacturer
Product Description
OESpectrum Front Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911173 Specifications
Product Attributes
| Compressed Length | 10.25 IN |
| Compressed Length | 260.3 MM |
| Extended Length | 15 in |
| Extended Length | 381 MM |
| Travel Length | 4.75 in |
| Travel Length | 120.6 MM |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L1 |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Upper Mount Code | S5 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01167 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598840943 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911173 Cross References
| Brand | Part Number |
|---|---|
| 911173MM, 829352491638 | |
| Duralast | TS3431391B |
| Ford | 1C3Z18124EA, 1C3Z18125LA, 2C3Z18125AA, 2C3Z18125BA, 2C7Z18124AA, 2C7Z18124BA, 2C7Z18124DA, 2C7Z18124EA, 2C7Z18125AA, 2C7Z18125CA, 3C3Z18124AA, 3C3Z18124BA, 3C3Z18124CA, 3C3Z18124DA, 3C3Z18124EA, 3C3Z18124FA, 3C3Z18124GA, 3C3Z18124HA, 3C3Z18124JA, 3C3Z18124KA, 3C3Z18124LA, 3C3Z18124MA, 3C3Z18124NA, 3C3Z18124NB, 3C3Z18124PA, 3C3Z18125CA, 3C3Z18125FA, 3C3Z18125GA, 3C3Z18125HA, 3C3Z18125JA, 3C3Z18125JB, 3C3Z18125JC, 3C3Z18125JD, 3C3Z18125JE, 3C3Z18125KA, 3C3Z18125KB, 3C3Z18125KC, 3C3Z18125KD, 3C3Z18125KE, 3C3Z18125LA, 3C3Z18125LB, 3C3Z18125LC, 3C3Z18125LD, 3C3Z18125LE, 3C3Z18125MA, 3C3Z18125MB, 3C3Z18125MC, 3C3Z18125MD, 3C3Z18125ME, 3U2Z18124BV, 3U2Z18124FAA, 3U2Z18124WAA, 5C3Z18124AA, 5C3Z18124BA, 5C3Z18124CA, 5C3Z18124FA, 5C3Z18124KA, 5C3Z18124LA, 5C3Z18124MA, 5C3Z18124NA, 5C3Z18124NB, 5C3Z18124PA, 5C3Z18124RA, 5C3Z18124SA, 5C3Z18124TA, 5C3Z18124VA, 5C3Z18125A, 5C3Z18125B, 5C3Z18125C, 5C3Z18125CA, 5C3Z18125CB, 5C3Z18125CC, 5C3Z18125CF, 5C3Z18125CH, 5C3Z18125CJ, 5C3Z18125D, 5C3Z18125E, 5C3Z18125F, 5C3Z18125G, 5C3Z18125JA, 5C3Z18125JB, 5C3Z18125JC, 5C3Z18125JD, 5C3Z18125JE, 5C3Z18125KA, 5C3Z18125LA, 5C3Z18125LB, 5C3Z18125LC, 5C3Z18125LD, 5C3Z18125LE, 5C3Z18125LF, 5C3Z18125MF, 6C3Z18124AGA, 6C3Z18124PBA, 6C3Z18124PHA, 6C3Z18125A, 6C3Z18125B, 6C3Z18125CEA, 6C3Z18125KBA, 6C3Z18125KHA, 6C3Z18125MBG, 6C3Z18125MHA, 7C3Z18124AE, 7C3Z18124AF, 7C3Z18124AGA, 7C3Z18124AH, 7C3Z18124AKA, 7C3Z18124APA, 7C3Z18124ARA, 7C3Z18124EA, 7C3Z18124NBA, 7C3Z18124NCA, 7C3Z18124NDA, 7C3Z18124NEA, 7C3Z18124NGA, 7C3Z18124P, 7C3Z18124PBA, 7C3Z18124PCA, 7C3Z18124PDA, 7C3Z18124PGA, 7C3Z18125CCA, 7C3Z18125CEA, 7C3Z18125CLA, 7C3Z18125CUA, 7C3Z18125CVA, 7C3Z18125CXA, 7C3Z18125JBA, 7C3Z18125JCA, 7C3Z18125JDA, 7C3Z18125JEA, 7C3Z18125K, 7C3Z18125KBA, 7C3Z18125KCA, 7C3Z18125KDA, 7C3Z18125LBA, 7C3Z18125LCA, 7C3Z18125LDA, 7C3Z18125LEA, 7C3Z18125LGA, 7C3Z18125M, 7C3Z18125MBA, 7C3Z18125MCA, 7C3Z18125MDA, 7C3Z18125MGA, 8C3Z18124NK, 8C3Z18124PK, 8C3Z18125LK, 8C3Z18125MK, 9C3Z18124A, 9C3Z18124B, 9C3Z18124PDA, 9C3Z18125A, 9C3Z18125B, BC3Z18124A, BC3Z18124AA, BC3Z18124AB, BC3Z18124B, BC3Z18124C, BC3Z18124D, BC3Z18124E, BC3Z18124F, BC3Z18124G, BC3Z18124H, BC3Z18124K, BC3Z18124M, BC3Z18124N, BC3Z18124P, BC3Z18124Q, BC3Z18124R, BC3Z18124T, BC3Z18124U, BC3Z18124V, BC3Z18124W, BC3Z18124X, BC3Z18124Y, BC3Z18124Z, BC3Z18125A, BC3Z18125AA, BC3Z18125AB, BC3Z18125AC, BC3Z18125AE, BC3Z18125AF, BC3Z18125AG, BC3Z18125AH, BC3Z18125AJ, BC3Z18125AK, BC3Z18125AL, BC3Z18125AM, BC3Z18125AN, BC3Z18125B, BC3Z18125C, BC3Z18125D, BC3Z18125E, BC3Z18125F, BC3Z18125J, BC3Z18125L, BC3Z18125M, BC3Z18125N, BC3Z18125P, BC3Z18125Q, BC3Z18125R, BC3Z18125S, BC3Z18125U, BC3Z18125V, BC3Z18125W, BC3Z18125Y, F81Z18124AA, F81Z18124AB, F81Z18124AC, F81Z18124AE, F81Z18124AF, F81Z18124AG, F81Z18124AH, F81Z18124AJ, F81Z18124AK, F81Z18124AL, F81Z18124AM, F81Z18124AP, F81Z18124BA, F81Z18124BB, F81Z18124BC, F81Z18124BD, F81Z18124BE, F81Z18124BF, F81Z18124BG, F81Z18124BH, F81Z18124BJ, F81Z18124BK, F81Z18125CA, F81Z18125CB, F81Z18125CC, F81Z18125CD, F81Z18125CE, F81Z18125CF, F81Z18125CG, F81Z18125CH, F81Z18125CJ, F81Z18125CK, F81Z18125CL, F81Z18125CM, F81Z18125CN, F81Z18125CP, F81Z18125CQ, F81Z18125CR, F81Z18125CS, F81Z18125CT, F81Z18125CV, F81Z18125CW, F81Z18125CX, F81Z18125CZ, F81Z18125DG, F81Z18125DH, F8AZ18125JA, HC3Z18124A, HC3Z18124B, HC3Z18124C, HC3Z18124D, HC3Z18124E, HC3Z18124F, HC3Z18124G, HC3Z18124H, HC3Z18124K, HC3Z18124L, HC3Z18124M, HC3Z18124N, HC3Z18124P, HC3Z18124R, HC3Z18124S, HC3Z18124T, HC3Z18124U, HC3Z18124V, HC3Z18125A, HC3Z18125AA, HC3Z18125AB, HC3Z18125AC, HC3Z18125B, HC3Z18125C, HC3Z18125D, HC3Z18125EA, HC3Z18125G, HC3Z18125H, HC3Z18125S, HC3Z18125T, HC3Z18125U, HC3Z18125V, HC3Z18125W, HC3Z18125Y, HC3Z18125Z, LC3Z18124A, LC3Z18124N, LC3Z18124Q, LC3Z18125G, LC3Z18125S, LC3Z18125U, YC3Z18124AD, YC3Z18124BA, YC3Z18124CB, YC3Z18124DB, YC3Z18124EB, YC3Z18124FA, YC3Z18125AA, YC3Z18125AB, YC3Z18125AC, YC3Z18125CA, YC3Z18125DA, YC3Z18125EA, HC3Z18124Y |
| GABRIEL | G63622, 77807, G63414, G63614 |
| KYB | 565120, KG5497, 565121, 565014, 345080, 349004, 554347, 554369, 344370 |
| KYB AMERICA LLC. | 554369, 565014, 565120 |
| MOTORCRAFT | ASH25751, ASH25755, ASH24748, ASH24749, ASH24750, ASH25753, ASH25752, ASH25754 |
| MasterPro Shocks and Struts | FD104 |
| Monroe Shocks & Struts | 210152, 34684, 32356, 210426 |
| NAPA Shocks | 911173, NS911173 |
| OEM | BC3Z18124G, 7C3Z18124AH, BC3Z18124A, HC3Z18124F, BC3Z18124D, HC3Z18124D, BC3Z18124E, 7C3Z18124AKA, 7C3Z18124AGA, HC3Z18124E, HC3Z18124G, HC3Z18124B, BC3Z18124B, 7C3Z18124AE, HC3Z18124C, 7C3Z18124AF, BC3Z18124C, HC3Z18124A, BC3Z18124F |
| PRT | 175450, 193581 |
| Rancho | RS55272 |
| SACHS NORTH AMERICA | 310236 |
| SENSEN | 12140175 |
| Sachs | 310236 |
| TRW | JGT4430S |
| Ultra Spring Seat | G63622 |
MONROE 911173 Fits Vehicles
- Ford F-350 Super Duty (1999-2025)
- Ford F-250 Super Duty (1999-2025)
- Ford Excursion (2000-2005)
