MONROE 66195 Part Description
Manufacturer
Product Description

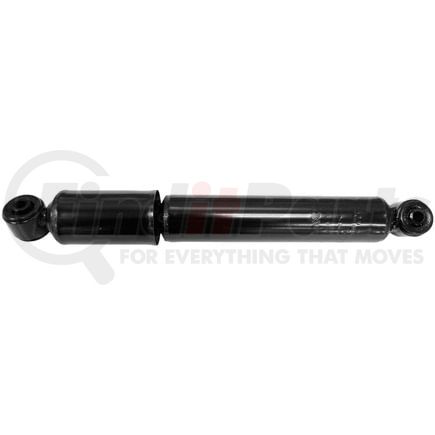

Magnum Cab Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
MONROE 66195 Specifications
Product Attributes
| Lower Mount Code | LS4 |
| Upper Mount Code | LS4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 10.5 IN |
| Dust Shield Material | Metal |
| Extended Length | 14 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 10MM Sleeve ID X 1.3/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 3.5 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 10MM Sleeve ID X 34.93MM Sleeve OAL |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598076502 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 66195 Part Interchanges
| Brand | Part Number |
|---|---|
| Freightliner | 1842613000 |
| Gabriel | 83033 |
| Ford | F8HT5K407AA, F6HT5K407BB, F7HT5K407CA |
| FREIGHTLINER | 1842613000 |
| Haldex | SA66195 |
| Meritor | M83033 |
| Monroe Shocks & Struts | 21246, 66695 |
| Sterling | F8HT5K407AA |
| NAPA Shocks | 66195 |
| Automann | A83033 |
| Gold Shock Absorber | 5001349 |
MONROE 66195 Fits Vehicles
- Ford AT9522 (1997-1998)
- Ford AT9513 (1996-1998)
- Sterling Truck AT9500 (1999-2008)
MONROE 66195 Cross References
We have 7 alternatives for the 66195 by MONROE:
