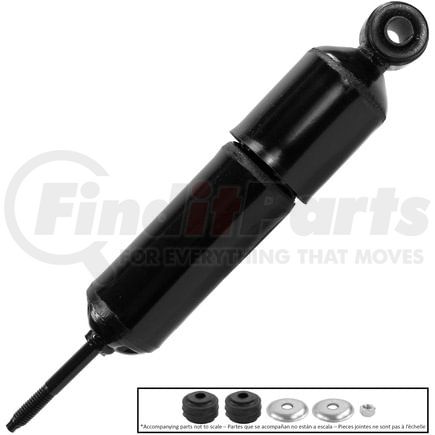

MONROE 66117 Magnum Cab Suspension Shock Absorber

MSRP: $71.67

$61.99

Save $9.68

Limited availability at this price!

In Stock

Get it by Tuesday, Dec 16
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 66117 Part Description

Manufacturer

MONROE

Product Description

Magnum Cab Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 66117 Specifications

Product Attributes

Lower Mount Code S4
Upper Mount Code LS37
Dust Shield Included Yes
Includes Bump Stop Yes
Internal Rebound Bumper Yes
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 7.90625 IN
Dust Shield Material Metal
Extended Length 9.40625 in
Gas Charged Yes
Lower Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Parts Pack(s) P01135
Travel Length 1.5 in
Upper Mount Type Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 34.93MM Sleeve OAL
Compressed Length 200.8 MM
Extended Length 238.9 MM
Travel Length 38.1 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Base of Stem

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598076267
VMRS Code 016008003
UNSPSC 25172011

MONROE 66117 Part Interchanges

Brand Part Number
Sachs 317929
Mack 14QK2111, 25621776, 25625008
VOLVO / WHITE / GMC SA3019
Meritor M83019
Gabriel 83019
MACK 25621776, 25625008
Volvo GM Heavy Truck SA3019
NAPA Shocks 66117
Automann A83019
Volvo Truck 83176191
Gold Shock Absorber 8160908
Bulldog HD HD12140541
FCS F344351

MONROE 66117 Fits Vehicles

  • Mack RD (1981-2004, 2007)
