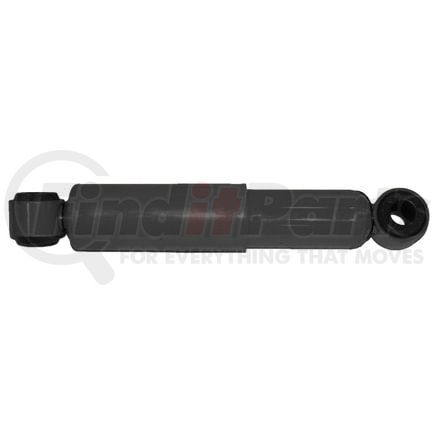

MONROE 65474 Magnum Front; Rear Suspension Shock Absorber

(0)
Monroe 65474 Suspension Shock Absorber Magnum Front; Rear Suspension Shock Absorber
MONROE
Tap to view 3 more

MSRP: $92.62

$85.99

Save $6.63

Limited availability at this price!

In Stock

Get it by Tuesday, Jul 14
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details

MONROE 65474 Part Description

Manufacturer

MONROE

Product Description

Magnum Front; Rear Suspension Shock Absorber

Features & Benefits

  • INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65474 Specifications

Product Attributes

Compressed Length 13.625 IN
Compressed Length 346.1 MM
Extended Length 20 in
Extended Length 508 MM
Travel Length 6.375 in
Travel Length 161.9 MM
Lower Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Lower Mount Type Loop (Eyelet) Bushing
Lower Mount Code L4
Upper Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Upper Mount Code L4
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Gas Charged Yes
Mounting Hardware Included No
Parts Pack(s) None
Body Color Black
Cylinder Color Black
Color Black
Cylinder Finish Painted
Dust Shield Included Yes
Dust Shield Material Metal
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No
Part Description Shock Absorber

Additional Information

MSDS Sheet Number 01164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598173744
VMRS Code 016008003
UNSPSC 25172011

MONROE 65474 Cross References

BrandPart Number
65474MM, MAE65474
BLUE BIRD1750793
BULLDOG HD SHOCKSHD1116-0045
Dayton PartsM65474
FCSF347312, F346599, F343368, F344355, F344353, F346598, F346633, F347215, F347303
GABRIEL85712, 85720
Gabriel680102
Gold Shock Absorber5001371
INTERNATIONALAMS700423
KONI901813SP1, 901813
KYB341614, 341615, 341621, 341620
Koni902254
MERITORM85712, M85720
MeritorA85720
NAPA Shocks65474
ORION20117503, 20117504, 20117505, 20117501
OTTAWA90027577
POWER10 PARTSSSA-85712
SPARTAN0272SS5
VOLVO / WHITE / GMC3919974
Volvo GM Heavy Truck3919974

MONROE 65474 Fits Vehicles

  • Peterbilt 587 (2011-2015)
  • Peterbilt 386 (2006-2016)
  • Peterbilt 372 (1989-1995, 1997)
  • Peterbilt 377 (1987-2001)
  • Peterbilt 362 (1981-2006)
  • Peterbilt 384 (2008-2016)
  • Peterbilt 385 (1996-2007)
  • Peterbilt 376 (1988-1992, 1994-1996, 1999)
  • Peterbilt 375 (1987-1996)
  • Peterbilt 379 (1990-2007)
  • Peterbilt 378 (1990-2007)
  • Peterbilt 357 (1990-2007)
  • Peterbilt 387 (2000-2011)
  • International CO220 (1971)
  • International CO190 (1970-1971)
  • International CO200 (1970-1971)
  • Kalmar Ottawa T2 (2015-2024)
  • Ford FT900 (1994-1997)
  • Ford F-700 (1994-1997)
  • Ford F-800 (1994-1997)
