Name: MONROE 65162
SKU: 65162
Price: 91.58 USD
Availability: InStock

MONROE part description

Product Description

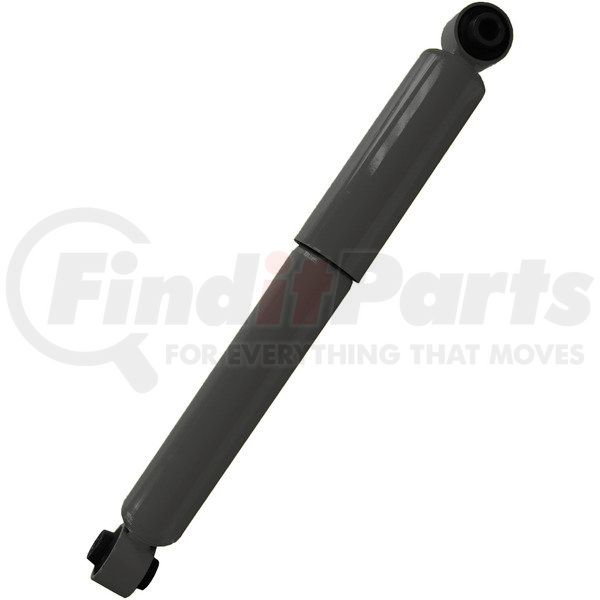

Magnum Shock Absorber

Application Summary

2001-2007 Sterling Truck Acterra 5500 (Front) (Qualifier: Replaces OE Part Number(s) 1013592000, with 10,000 (lb) to 12,000 (lb) Front Axle, with 3 (in) Tapered Leaf Spring); 2004-2007 Sterling Truck Acterra 6500 (Front) (Qualifier: Replaces OE Part Number(s) 1013592000, with 10,000 (lb) to 12,000 (lb) Front Axle, with 3 (in) Tapered Leaf Spring); 2001-2007 Sterling Truck Acterra 7500 (Front) (Qualifier: Replaces OE Part Number(s) 1013592000, with 10,000 (lb) to 12,000 (lb) Front Axle, with 3 (in) Tapered Leaf Spring); 2003-2010 Sterling Truck Acterra (Front) (Qualifier: Replaces OE Part Number(s) 1013592000, with 10,000 (lb) to 12,000 (lb) Front Axle, with 3 (in) Tapered Leaf Spring); 1989-2016 Blue Bird All American FE (Front) (Qualifier: Replaces OE Part Number(s) 00106303, with Hendrickson Softek Suspension); 1989-2020 Blue Bird All American RE (Front) (Qualifier: Replaces OE Part Number(s) 00106303, with Hendrickson Softek Suspension); 2009-2020 Freightliner M2 106 (Front) (Qualifier: Replaces OE Part Number(s) 1013592000)

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
Robusto bloqueo hidráulico: Evita la extensión excesiva de la suspensión, el tope del pistón y evita daños en el conjunto del retén (cuando se requiera)
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
Cojinete recubierto de PTFE: Reduce la fricción durante el funcionamiento entre la barra y la guía de la barra, mejorando la durabilidad - en la mayoria de aplicaciones
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
Bujes con rebordes Tenneco: Bujes con rebordes y bujes adheridos con diseños de manguito que evitan la salida del buje para mejorar la calidad y la durabilidad, en la mayoría de las aplicaciones
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
Cargado con gas nitrógeno: Para una mejor conducción y manejo, ayuda a mantener el contacto de la llanta con el suelo al reducir la aireación - en la mayoría de las aplicaciones
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
Técnica de soldadura en bucle: Soldadura por resistencia con soldadura adicional de 360 ??grados para proporcionar hasta 15,000 libras (6.804 kg)de resistencia a la tracción para una máxima durabilidad (cuando sea necesario)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
Tubo de reserva de 2-3/8 pulgadas (60,3 mm): Más fluido para un rendimiento más uniforme, en la mayoría de las aplicaciones
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
Diámetro de 1-3/4 pulgadas (44,6 mm): diámetro más grande que la mayoría de los amortiguadores para proporcionar un control más consistente
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Tubo de presión de .05 pulgadas que soporta una presión de 9 KPSI
Válvula de 10 etapas: reacciona a una amplia gama de condiciones de conducción, en la mayoría de las aplicaciones

Product Attributes

Compressed Length	13.656 IN
Travel Length	7.75 in
Color	Black
Finish	Painted
Internal Construction Type	Twin Tube
Extended Length	21.406 in
Gas Charged	Yes
Adjustable Damping	No
Dust Shield Included	Yes
Dust Shield Material	Metal
9783	No
9789	LS86
9791	LS86
9792	No
9908	No
Foam Cell Design	No
Lower Mount Type	Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.5/16" Sleeve OAL
Part Description	Shock Absorber
Parts Pack(s)	None
Shaft Diameter	18 MM
Shock Absorber Bore Size	1-3/4 IN
Upper Mount Type	Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.5/16" Sleeve OAL

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
MSDS Sheet Number	01164
UPC	00048598003805
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
