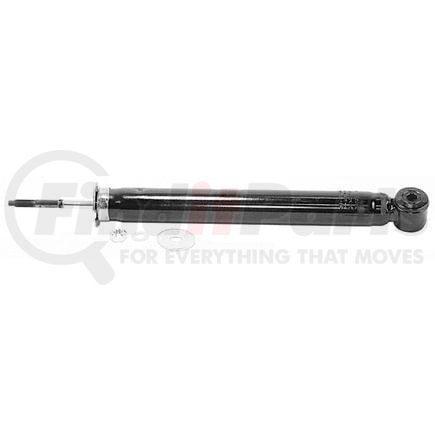

MONROE 5974 Part Description
Manufacturer
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 5974 Specifications
Product Attributes
| Compressed Length | 15.125 IN |
| Compressed Length | 384.2 MM |
| Extended Length | 24 in |
| Extended Length | 609.6 MM |
| Travel Length | 8.875 in |
| Travel Length | 225.4 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.11/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS74 |
| Upper Mount Type | Stem Mount - Stem Length X M10 Thread Pitch |
| Upper Mount Code | S1 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | BE17110294 |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | ES |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598040411 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5974 Cross References
| Brand | Part Number |
|---|---|
| 5974ST, GD9Z54044F58AE | |
| AUTOZONE | TS34-30092B |
| AutoZone | TS3430092B |
| BMW | 31311090211, 31311090212, 31311090461, 31311090462, 31311090715, 31311090716, 31311091063, 31311091064, 31311091101, 31311091102, 31311091269, 31311091270, 31311091773, 31311091774, 31311092307, 31311092308, 31311096853, 31311096854, 31311096855, 31311096856, 31311139101, 31311139102, 31311139417, 31311139418, 31311139419, 31311139420, 31321133560, 33521090831, 33521091245, 33521091246, 33521092309, 33521095913, 33521096366, 33521132123 |
| Duralast | TS3430092B |
| FCS | 341347 |
| FCS AUTO PARTS | 341347 |
| GABRIEL | 69725, 69863 |
| KYB | 343255, 553239, 343352, KG4539 |
| KYB AMERICA LLC. | 343255 |
| Monroe Shocks & Struts | 210142 |
| NAPA Shocks | 5974 |
| SENSEN | 32120148 |
| Sachs | 556882 |
| VAICO | V20-1414, V207314, V207315, V20-7352, V201416, V20-0963, V20-0964, V201412, V201413, V207310, V20-7311, V207312, V207313 |
MONROE 5974 Fits Vehicles
- BMW 320i (1993-1995)
- BMW 328is (1996-1998)
- BMW 328i (1996-1998)
- BMW 325is (1992-1995)
- BMW 325i (1992-1997)
- BMW 323is (1998-1999)
- BMW 318is (1992-1998)
- BMW 323i (1998-1999)
- BMW 318i (1992-1998)
