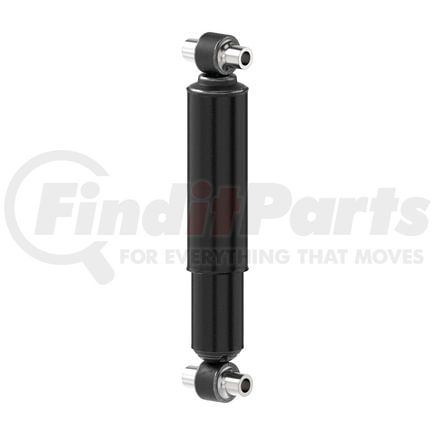

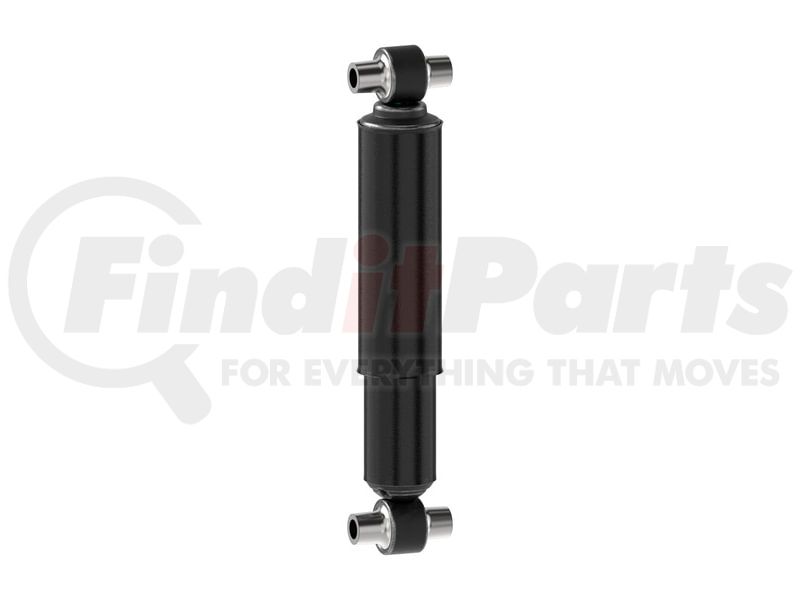

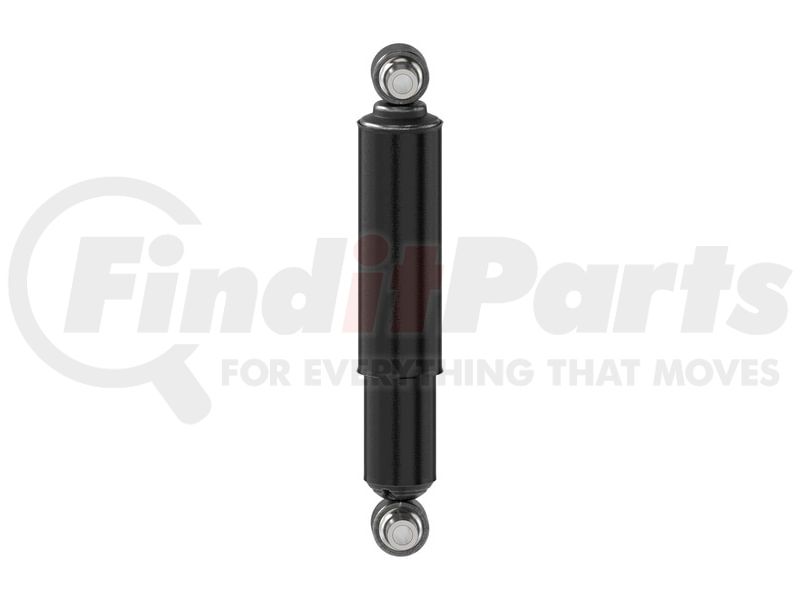

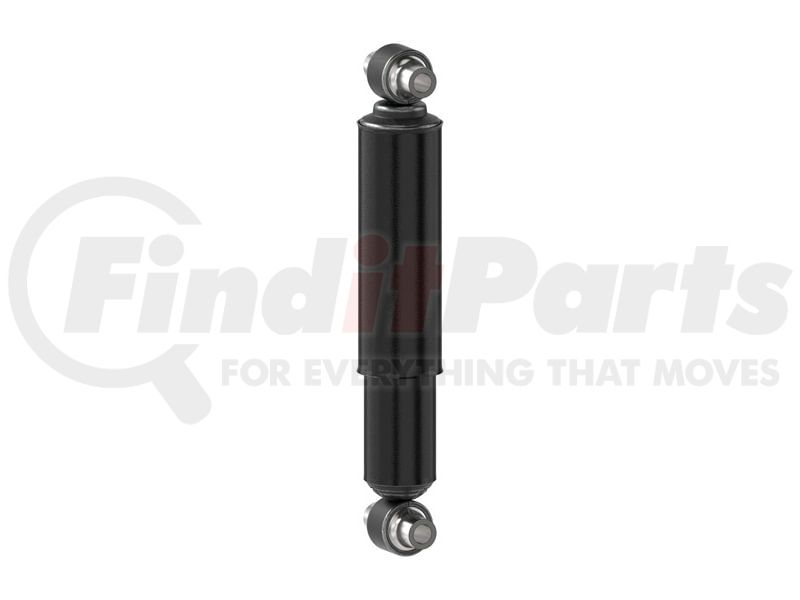

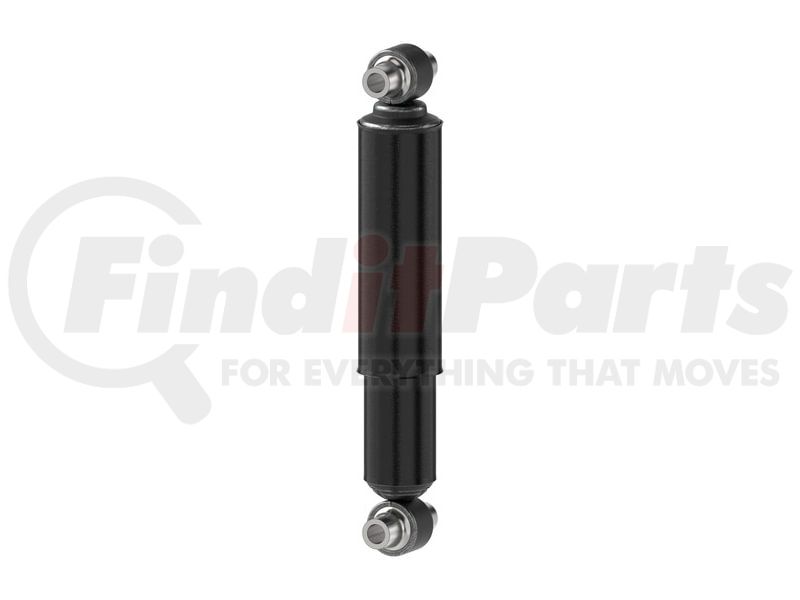

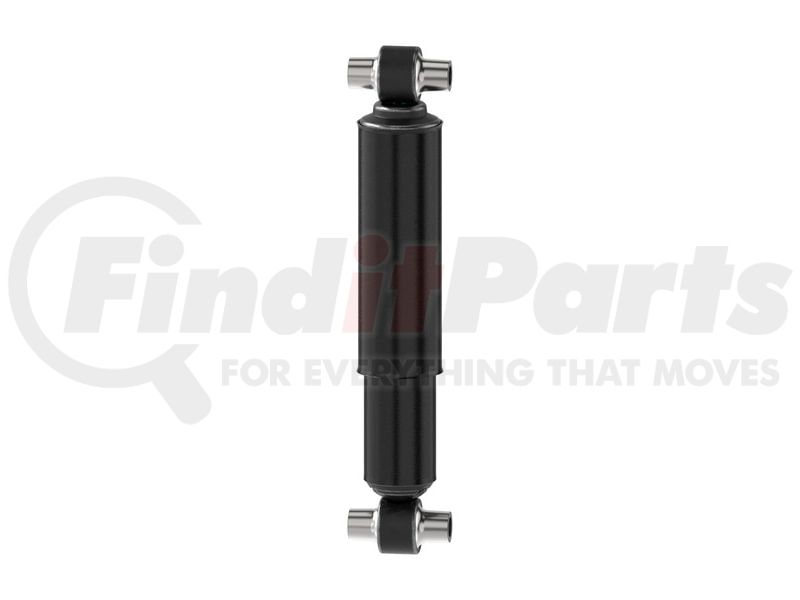

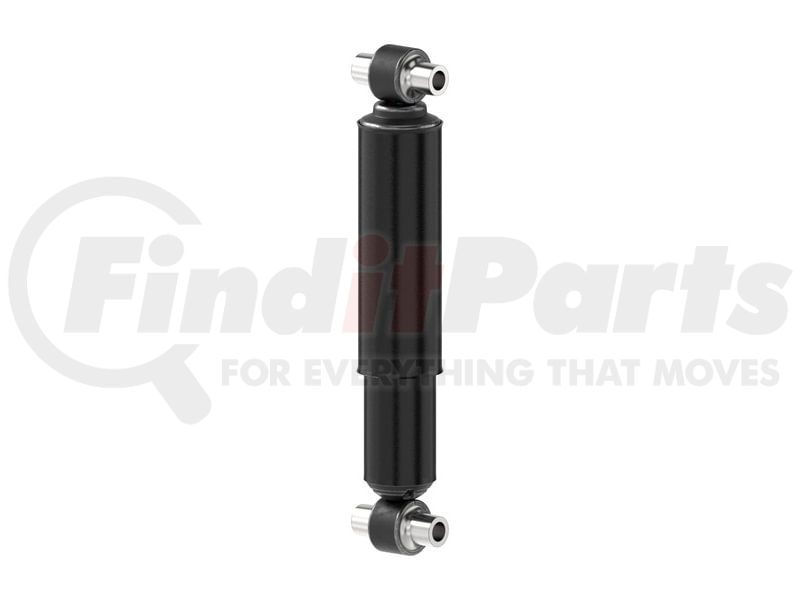

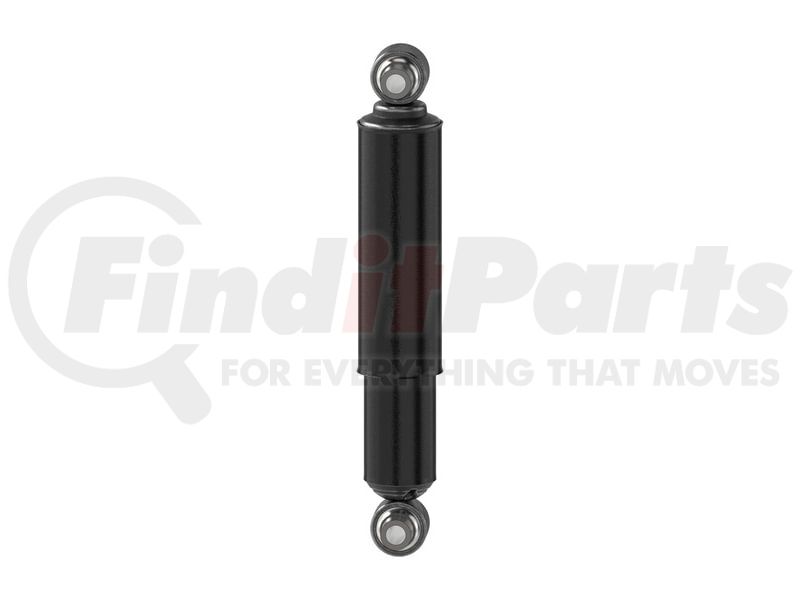

(888) 312-8812 Login SignupMONROE 5784 OESpectrum Amortisseur
Tap to view 11 more
MSRP: $78.65
$4849
Save $30.16
Limited availability at this price!
In Stock
Get it by Monday, Sep 14

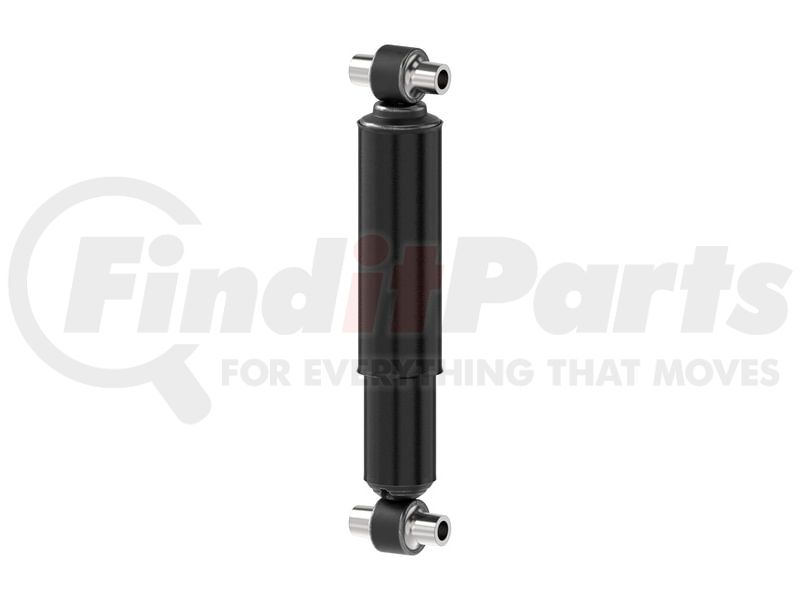

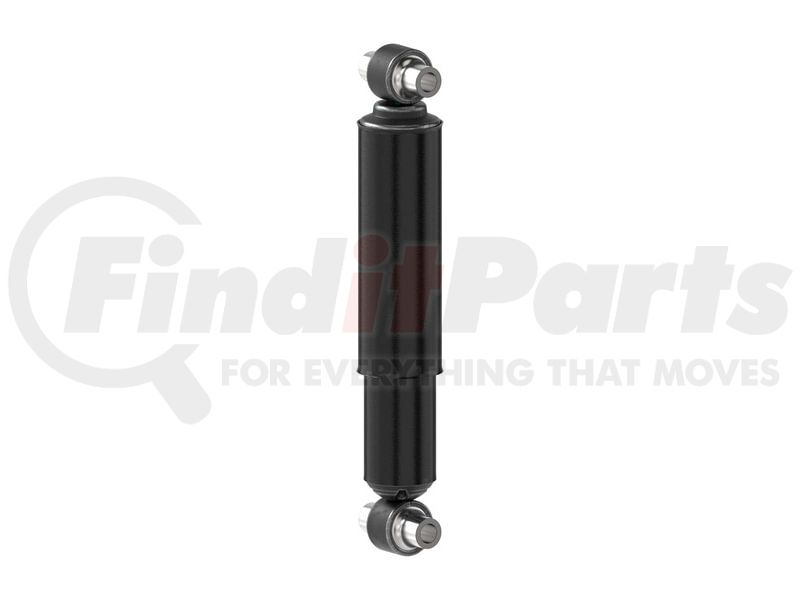

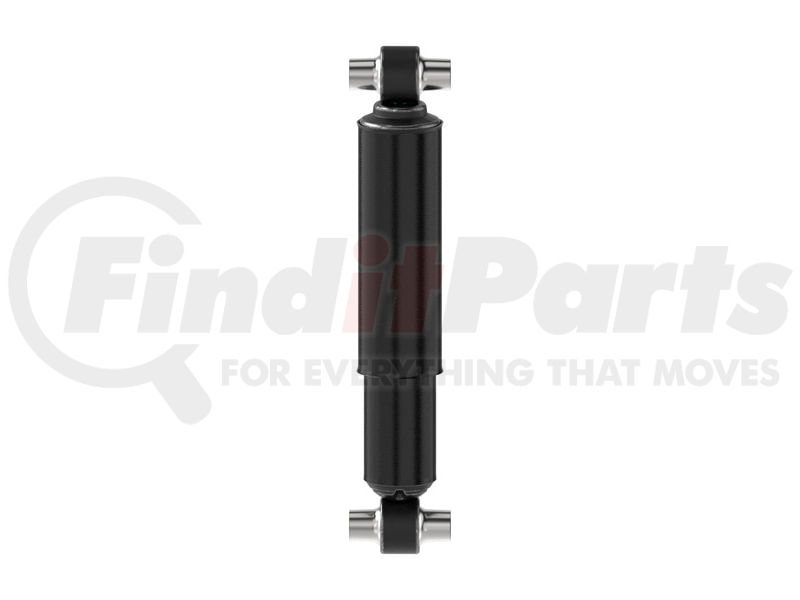

MONROE 5784 Part Description
Manufacturer
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 5784 Specifications
Product Attributes
| Compressed Length | 11.22 IN |
| Compressed Length | 285 MM |
| Extended Length | 17.57 in |
| Extended Length | 446.3 MM |
| Travel Length | 6.35 in |
| Travel Length | 161.3 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS38 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 38.1MM Sleeve OAL |
| Upper Mount Code | LS38 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | No |
| Parts Pack(s) | None |
| Body Diameter | 1.75 IN |
| Body Diameter | 44.4 MM |
| Body Color | Black |
| Cylinder Color | Black |
| Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598019158 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 5784 Cross References
| Brand | Part Number |
|---|---|
| 5784ST, GD9Z17682JCPTM | |
| AUTOZONE | TS33-32062B |
| AutoZone | TS3332062B |
| Duralast | TS3332062B |
| FCS | 342473, 342889 |
| FCS AUTO PARTS | 342473, 342889 |
| Ford | 6E5Z18124AL, 6E5Z18124AR, 6E5Z18124BL, 6E5Z18124BR, 6E5Z18125AA, 6E5Z18125BA, 6H6Z18125AA, 7E5Z18124LH, 7E5Z18124RH, 7E5Z18125A, 7H6Z18125C, 7H6Z18125D, 8E5Z18124L, 8E5Z18124R, 8E5Z18125A, AE5Z18124A, AE5Z18124B, AE5Z18124C, AE5Z18124D, AE5Z18124E, AE5Z18124F, AE5Z18124G, AE5Z18124H, AE5Z18124J, AE5Z18124K, AE5Z18125A, AE5Z18125B, AE5Z18125C, AE5Z18125D, AE5Z18125E, AE5Z18125F, AE5Z18125G, AH6Z18125A, 6E5118080BE, 7H6118080BE |
| GABRIEL | 69591 |
| KYB | 349033, 344363 |
| KYB AMERICA LLC. | 344363, 349033 |
| Lincoln | 6H6Z18125AA, 7H6Z18125C, 7H6Z18125D, AE5Z18125D, AE5Z18125E, AE5Z18125F, AH6Z18125A |
| Lincoln Automotive | 6E5Z18125AA, 6E5Z18125BA, 6H6Z18124AL, 6H6Z18124AR, 6H6Z18125AA, 7E5Z18124LH, 7E5Z18125A, 7H6118080BE, 7H6Z18124LH, 7H6Z18124RL, 7H6Z18125C, 7H6Z18125D, 8E5Z18125A, 8H6Z18124A, 8H6Z18124B, AE5Z18124B, AE5Z18124E, AE5Z18124F, AE5Z18124J, AE5Z18125A, AE5Z18125B, AE5Z18125C, AE5Z18125D, AE5Z18125E, AE5Z18125F, AE5Z18125G, AH6Z18124A, AH6Z18124B, AH6Z18124C, AH6Z18124D, AH6Z18125A, AH6Z18125B |
| MasterPro Shocks and Struts | MZ099 |
| Mazda | GK2A28700C, GK2A34700G, GK2A34900H, GK2C28700D, GK2C34700J, GK2C34900K, GM6A28700B, GM6A28700D, GM6A28700E, GM9A28700D, GM9A28700F, GM9A28700G, GM9A34700C, GM9A34700F, GM9A34700G, GM9A34700H, GM9A34900C, GM9A34900F, GM9A34900G, GM9A34900H, GM9C28700A, GM9C34700C, GM9C34700D, GM9C34900C, GM9C34900E, GP7C34700A, GP7C34700B, GP7C34900A, GP7C34900B |
| Mercury | 6E5118080BE, 6E5Z18124AL, 6E5Z18124AR, 6E5Z18124BL, 6E5Z18124BR, 6E5Z18125AA, 6E5Z18125BA, 6H6Z18125AA, 7E5Z18124LH, 7E5Z18124RH, 7E5Z18125A, 7H6Z18125C, 7H6Z18125D, 8E5Z18125A, AE5Z18124A, AE5Z18124B, AE5Z18124C, AE5Z18124D, AE5Z18124E, AE5Z18124F, AE5Z18124J, AE5Z18124K, AE5Z18125A, AE5Z18125B, AE5Z18125C, AE5Z18125D, AE5Z18125E, AE5Z18125F, AE5Z18125G, AH6Z18125A |
| Monroe Shocks & Struts | 210109 |
| NAPA Shocks | 5784, NS5784 |
| OEM | AE5Z18125G, 7H6118080BE, 6E5Z18125AA, AE5Z18125A, 7H6Z18125D, AE5Z18125B, 6E5Z18125BA, AE5Z18125C, 8E5Z18125A, AE5Z18124B, 7E5Z18125A, AE5Z18125D, AH6Z18125A, 6H6Z18125AA, 7H6Z18125C, 6E5118080BE, AE5Z18124J, AE5Z18125E, AE5Z18125F |
| PRT | 173471 |
| SENSEN | 12130030 |
| Top Quality | 785784 |
| UNITY AUTOMOTIVE | 252080, 4-11980-252080-001, 4-11990-252080-001, 2-252080-001 |
| Ultra Shock | 69591 |
MONROE 5784 Fits Vehicles
- Lincoln MKZ (2007-2012)
- Lincoln Zephyr (2006)
- Mercury Milan (2006-2011)
- Ford Fusion (2006-2012)
- Mazda 6 (2003-2008)
