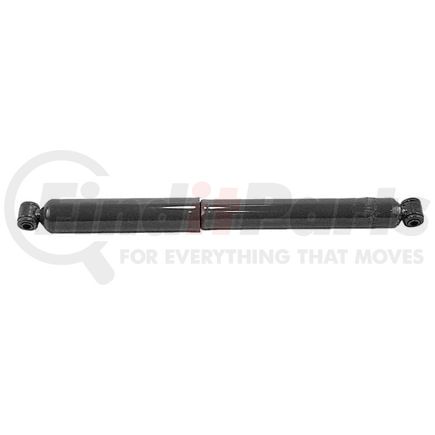

(888) 312-8812 Login SignupMagnum RV Suspension Shock Absorber
| Lower Mount Code | LS39 |
| Upper Mount Code | LS39 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 15 IN |
| Dust Shield Material | Metal |
| Extended Length | 24.625 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 9.625 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 41.28MM Sleeve OAL |
| Compressed Length | 381 MM |
| Extended Length | 625.5 MM |
| Travel Length | 244.5 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS39 |
| Upper Mount Code | LS39 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598555366 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 555036MM, 747730066455 | |
| BULLDOG HD SHOCKS | HD1214-0594 |
| Bulldog HD | HD12140594 |
| Chevrolet | 22011983, 22012094, 22012098, 22012099, 22012149, 22017533, 22046408, 22046453, 22064002, 22064003, 22064004, 22064005, 22064429, 22064430, 3187847, 88946673 |
| GABRIEL | 77403, 58403 |
| GMC | 22011983, 22012094, 22012098, 22012099, 22012149, 22017533, 22046408, 22046453, 22064002, 22064003, 22064004, 22064005, 22064429, 22064430, 3187847 |
| KYB | KG6408, KG6412, KG5454, KG5409, KG5517, KG5420, 565032, 565038, 565033, KG6001A, KG5430, 565039, KG54101, 565034, 344068, 345030, 344262, 344273, KG5514, KG6410, KG5488, 344075, KG54100, 344366 |
| NAPA Shocks | 555036 |
