MONROE 37284 Part Description
Manufacturer
Product Description

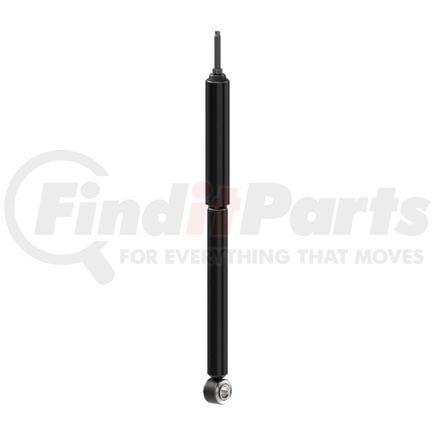

OESpectrum Suspension Shock Absorber
Features & Benefits
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 37284 Specifications
Product Attributes
| Lower Mount Code | SPEC |
| Upper Mount Code | S5 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 16.05 IN |
| Dust Shield Material | Plastic |
| Extended Length | 26.51 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Parts Pack(s) | P01167 |
| Travel Length | 10.46 in |
| Upper Mount Type | Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch |
| Compressed Length | 407.7 MM |
| Extended Length | 673.4 MM |
| Travel Length | 265.7 MM |
| Lower Mount Type | Special Mount |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Lower Mount Code | SPEC |
| Upper Mount Code | S5 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598097804 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 37284 Cross References
| Brand | Part Number |
|---|---|
| 37284ST, FT4Z58255A35E | |
| Duralast | TS3334912B |
| FCS | 341529, 341539 |
| FCS AUTO PARTS | 341529 |
| GABRIEL | G51805, G51804, G51992 |
| KYB | 344308, 344480 |
| KYB AMERICA LLC. | 344308 |
| MasterPro Shocks and Struts | TY118 |
| Monroe Shocks & Struts | 210295 |
| NAPA Shocks | 37284, NS37284 |
| OEM | 4853109870, 4853109C10, 4853108010, 4853109A80, 4853109050, 4853109850, 48531A9050, 4853109C30 |
| PRT | 373162 |
| SENSEN | 32130259 |
| Top Quality | 7837284 |
| Toyota | 4851009Z90, 485108Z001, 485108Z155, 485108Z156, 485108Z157, 485108Z293, 485108Z294, 485108Z295, 48510A9240, 48510A9680, 48510A9690, 48510A9700, 48510A9890, 4852009S70, 4852009S80, 4852009S90, 485208Z043, 485208Z044, 485208Z045, 485208Z151, 485208Z152, 485208Z153, 48520A9160, 48520A9360, 48520A9370, 48520A9380, 4853108010, 4853109050, 4853109850, 4853109860, 4853109870, 4853109A80, 4853109A90, 4853109B00, 4853109C10, 4853109C30, 48531A9050, 48531A9060, 48531A9200 |
| UNITY AUTOMOTIVE | 254040, 2-254040-001, 4-11981-254040-001, 4-11991-254040-001, 4-11385-254040-001 |
| Ultra Spring Seat | G51805 |
MONROE 37284 Fits Vehicles
- Toyota Sienna (2004-2020)
