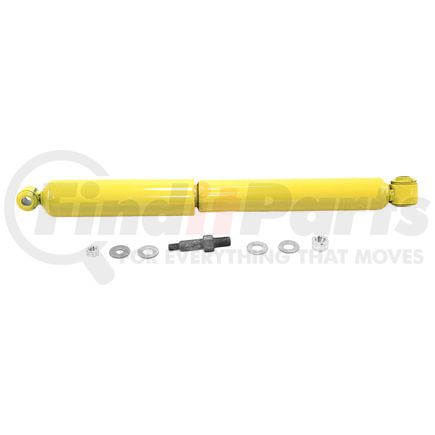

(888) 312-8812 Login SignupMONROE 34912 Gas-Magnum Amortiguador
Tap to view 3 more
MSRP: $100.64
$6299
Save $37.65
Limited availability at this price!
In Stock
Get it by Monday, Jul 13
MONROE 34912 Part Description
Manufacturer
Product Description
Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 34912 Specifications
Product Attributes
| Compressed Length | 14.125 IN |
| Compressed Length | 358.8 MM |
| Extended Length | 23 in |
| Extended Length | 584.2 MM |
| Travel Length | 8.875 in |
| Travel Length | 225.4 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS54 |
| Upper Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 1/16" Stud Length (Center of Loop to Frame) |
| Upper Mount Code | L1/CP1 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P00019 |
| Body Color | Yellow |
| Cylinder Color | Yellow |
| Color | Yellow |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598049742 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34912 Cross References
| Brand | Part Number |
|---|---|
| 34912MM, MAE34912 | |
| ACDELCO | 560-567 |
| ACDelco | 560567 |
| CHEVROLET | 22002294 |
| Chevrolet | 22007757, 22012094, 22012099, 22012149, 22017533, 22064233, 22064294, 22064296, 22064405, 22064406, 22064407, 22064606, 22064804, 22065213, 22065232, 88946673 |
| GABRIEL | 58403, 727631, 58625, G63625 |
| GM | 22002294 |
| GMC | 22007757, 22012094, 22012099, 22012149, 22017533, 22064233, 22064294, 22064296, 22064405, 22064406, 22064407, 22064606, 22064804, 22065213, 22065232, 22002294 |
| General Motors | 22002294 |
| Gold Shock Absorber | 9160499 |
| HALDEX | SA34912 |
| KYB | KG6001A, 345030, KG6412, KG5409, 565032, 345613, 344068 |
| KYB AMERICA LLC. | 345030, KG6001A |
| MERITOR | MG60185 |
| MONROE | 66637 |
| NAPA Shocks | 76912, NS66637 |
| NAVISTAR | AMS34912 |
| Sensen | 12140418, 12130188 |
| VOLVO / WHITE / GMC | 3919919 |
| Volvo GM Heavy Truck | 3919919 |
MONROE 34912 Fits Vehicles
- Chevrolet S7 (1987-1989)
- GMC C7000 (1980-1989)
- GMC C6000 (1980-1989)
- GMC C5000 (1980-1989)
- GMC P3500 (1986-1999)
- Chevrolet P30 (1986-1999)
