MONROE 32323 Part Description
Manufacturer
Product Description

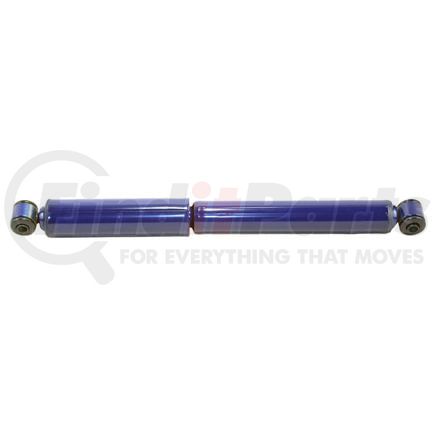

Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 32323 Specifications
Product Attributes
| Lower Mount Code | LS26 |
| Upper Mount Code | LS26 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 14.375 IN |
| Dust Shield Material | Metal |
| Extended Length | 23.125 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 8.75 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 38.1MM Sleeve OAL |
| Compressed Length | 365.1 MM |
| Extended Length | 587.4 MM |
| Travel Length | 222.3 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598026996 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 32323 Cross References
| Brand | Part Number |
|---|---|
| 32323MM, FT1Z1763804BB | |
| AUTOZONE | TS34-32172B, TS33-30971B, MS33-32172B |
| AutoZone | MS3332172B, TS3330971B, TS3432172B |
| Duralast | MS3332172B |
| FCS | 342500 |
| FCS AUTO PARTS | 342500 |
| Ford | F75Z18124CA, F75Z18124CB, F75Z18124DA, F75Z18124DB, F75Z18124FA, F75Z18124FB, F75Z18124LA, F75Z18124LAA, F75Z18124TA, F75Z18124UA, F75Z18124UB, F75Z18125AC, F75Z18125AD, F75Z18125AE, F75Z18125AF, F75Z18125DB, F75Z18125KB, F75Z18125KC, F75Z18125LB, F75Z18125LC, F75Z18125NB, F75Z18125NC, F75Z18125UB, F75Z18125UC, F85Z18124FA, XL1Z18124AA, XL1Z18125AA |
| GABRIEL | 77717, G63717, 61614, 58717 |
| KYB | KG54320, 344267, 565007 |
| MasterPro Shocks and Struts | FD140 |
| Monroe Shocks & Struts | 59586 |
| NAPA Proformer | SH61614 |
| NAPA Response | 94217 |
| Sensen | 12140149 |
MONROE 32323 Fits Vehicles
- Ford Expedition (1997-2002)
